Smart Desktop Terminal

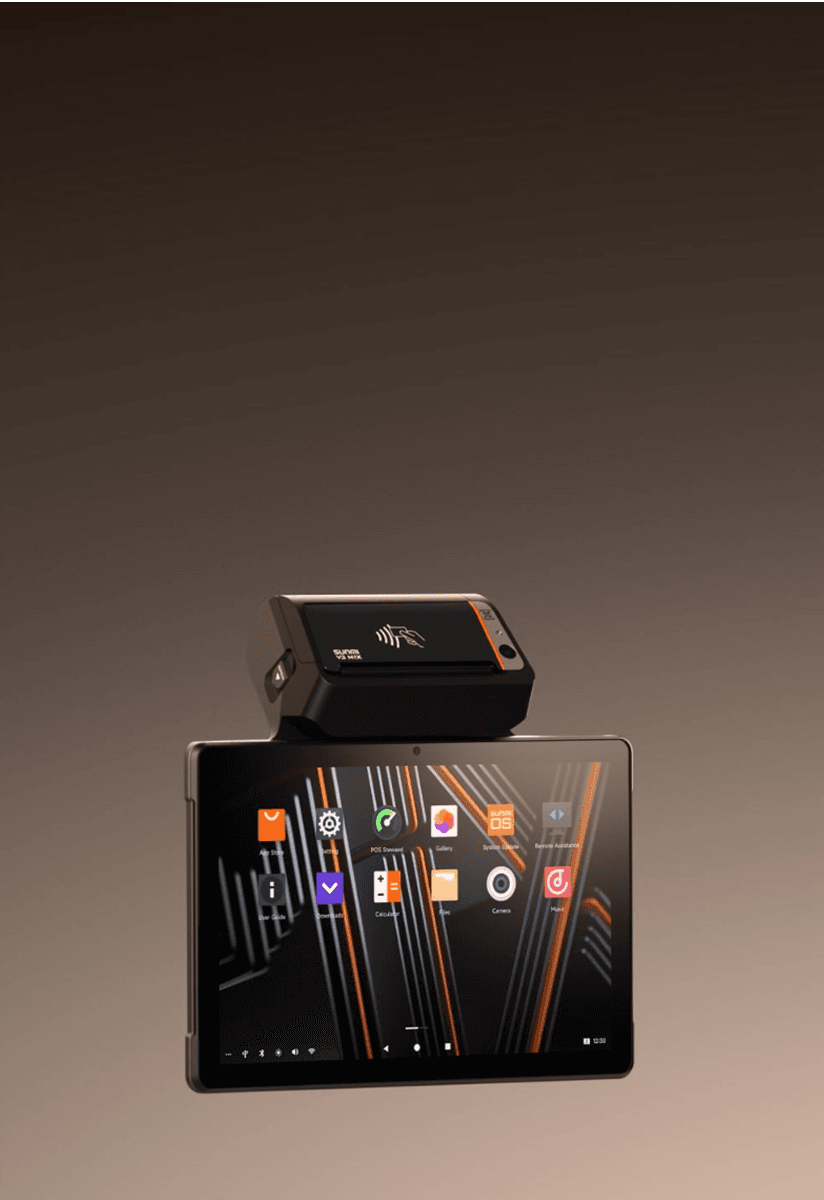

SUNMI V3 MIX
The next level of Android desktop.
Restaurants
A more convenient payment method with a clear preview. The integrated NFC feature enabling Tap on Glass SoftPOS greatly enhances the checkout efficiency.

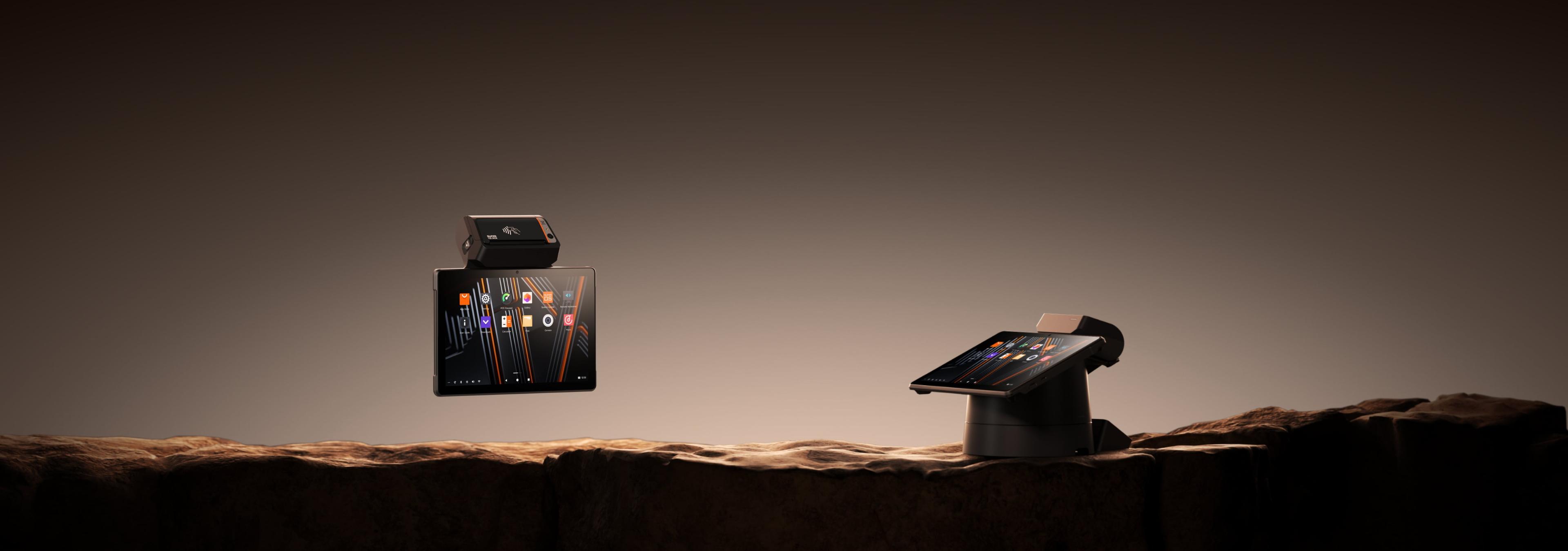

MIX your POS terminal to capture businesses anywhere, anytime

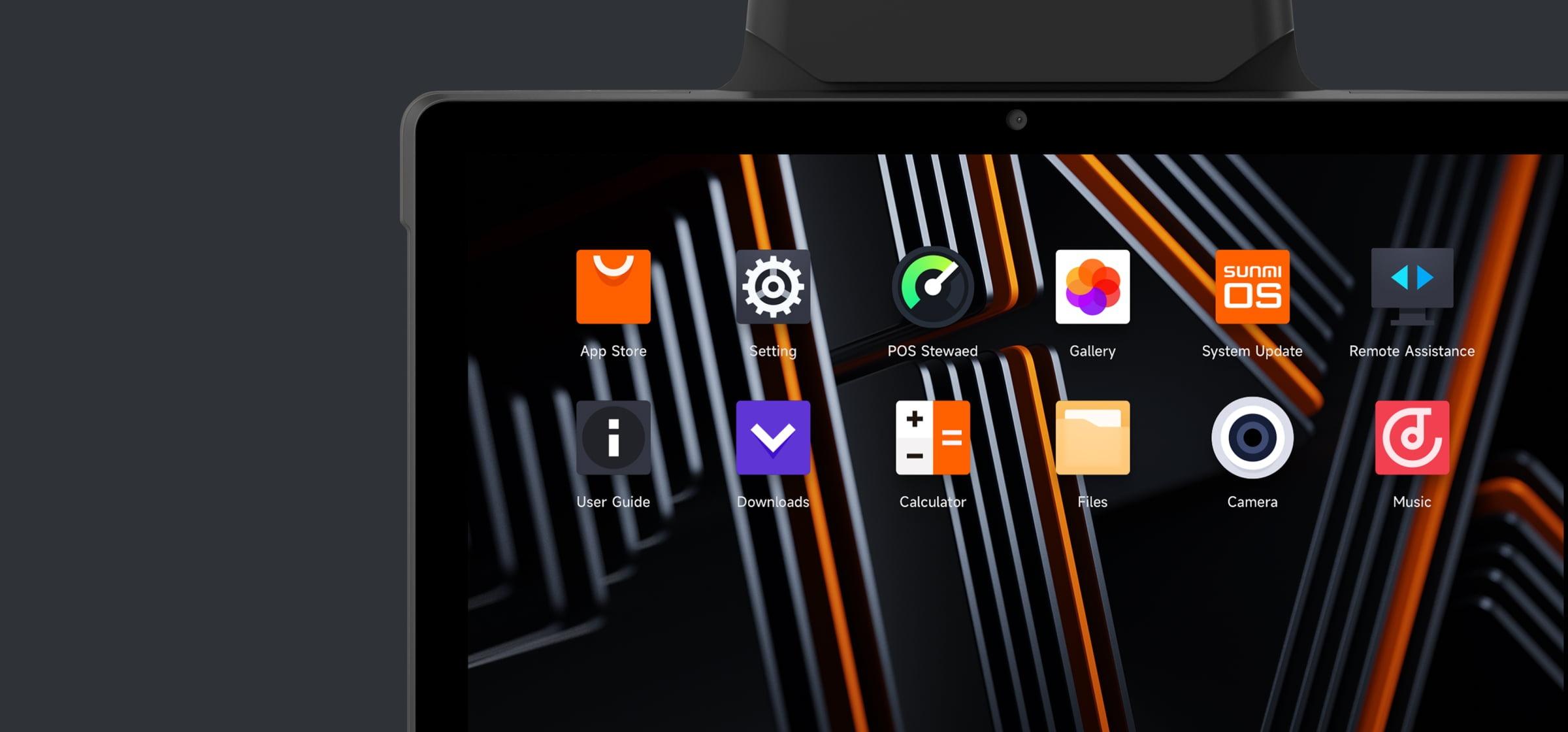

Big Screen
10' IPS display gives a large viewing angle and more accurate color reproduction.

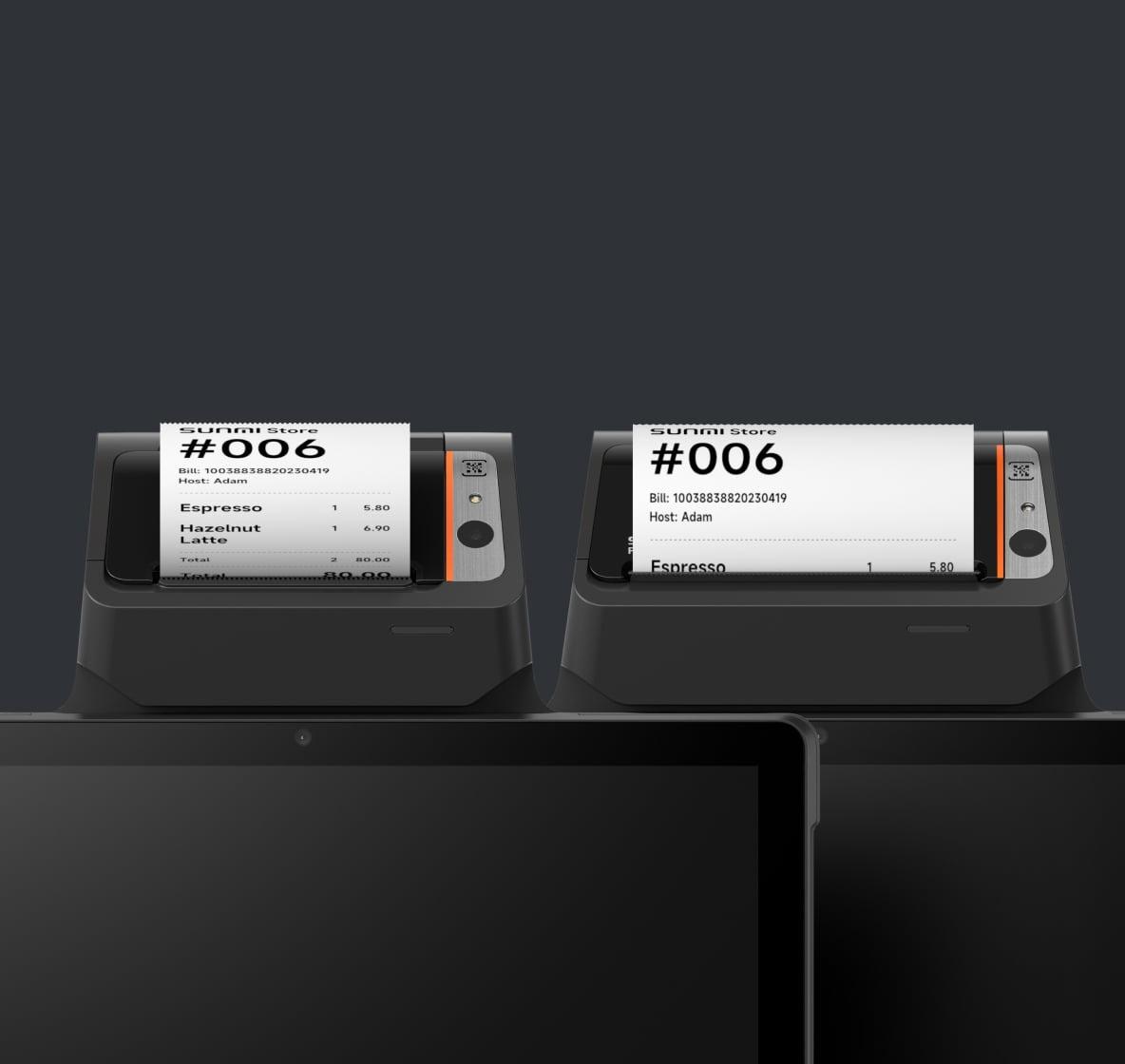

Built-in 58/80mm high speed thermal printer

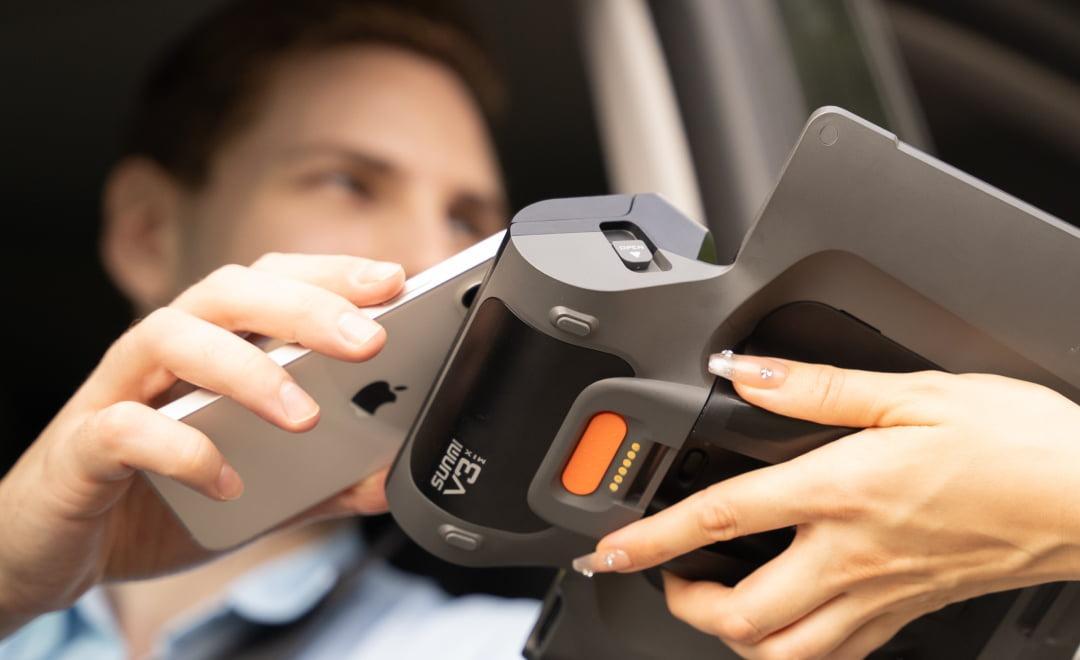

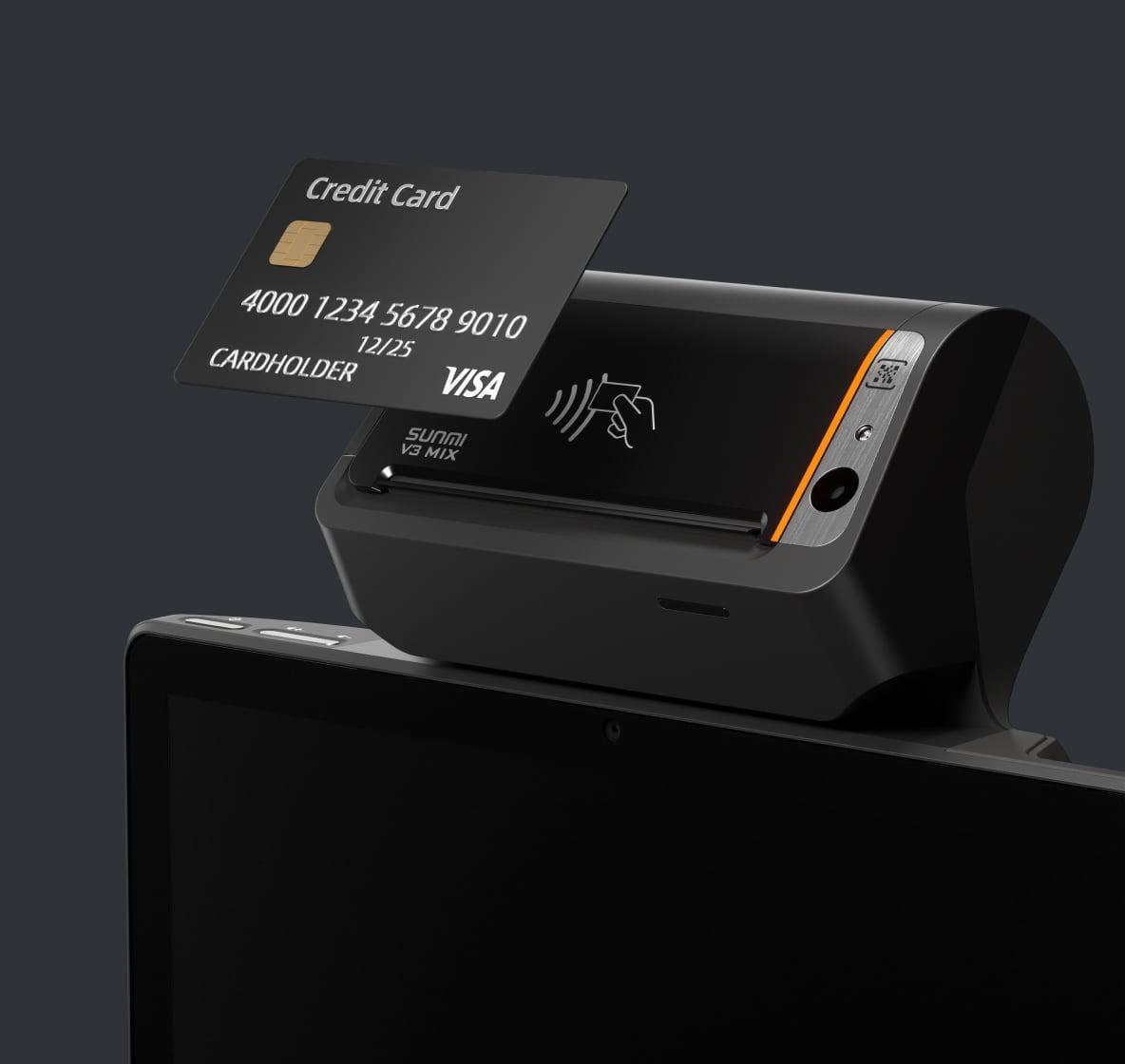

NFC reader
Incorporate into SoftPOS for businesses to accept card payments. Support TypeA&B card, Mifare card, Felica card, ISO/IEC compliant 14443, ISO15693 standard.

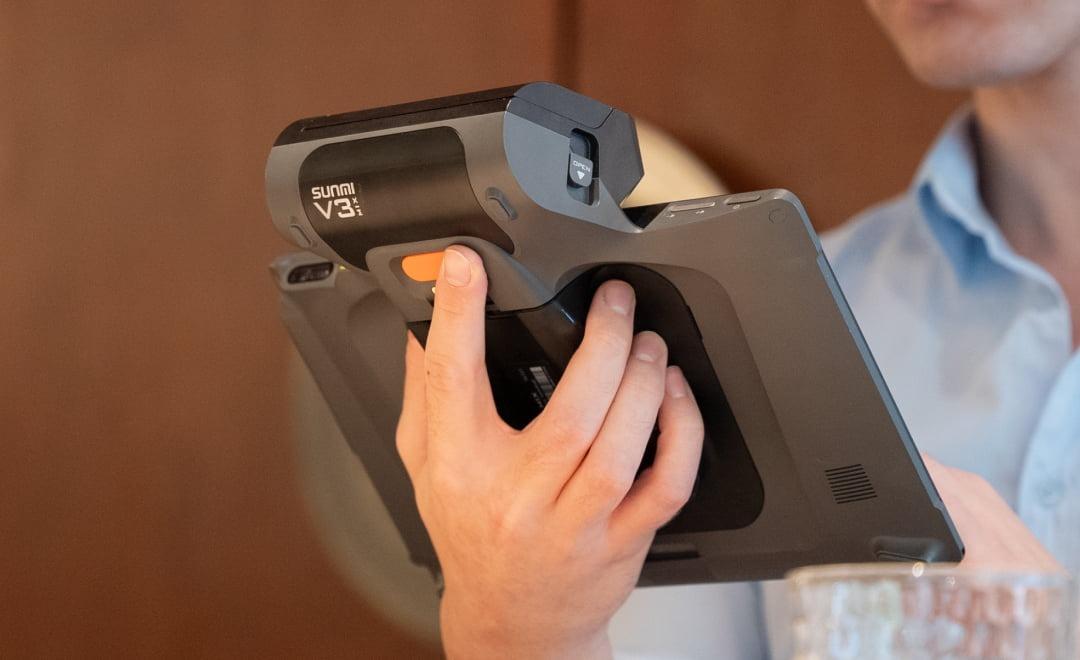

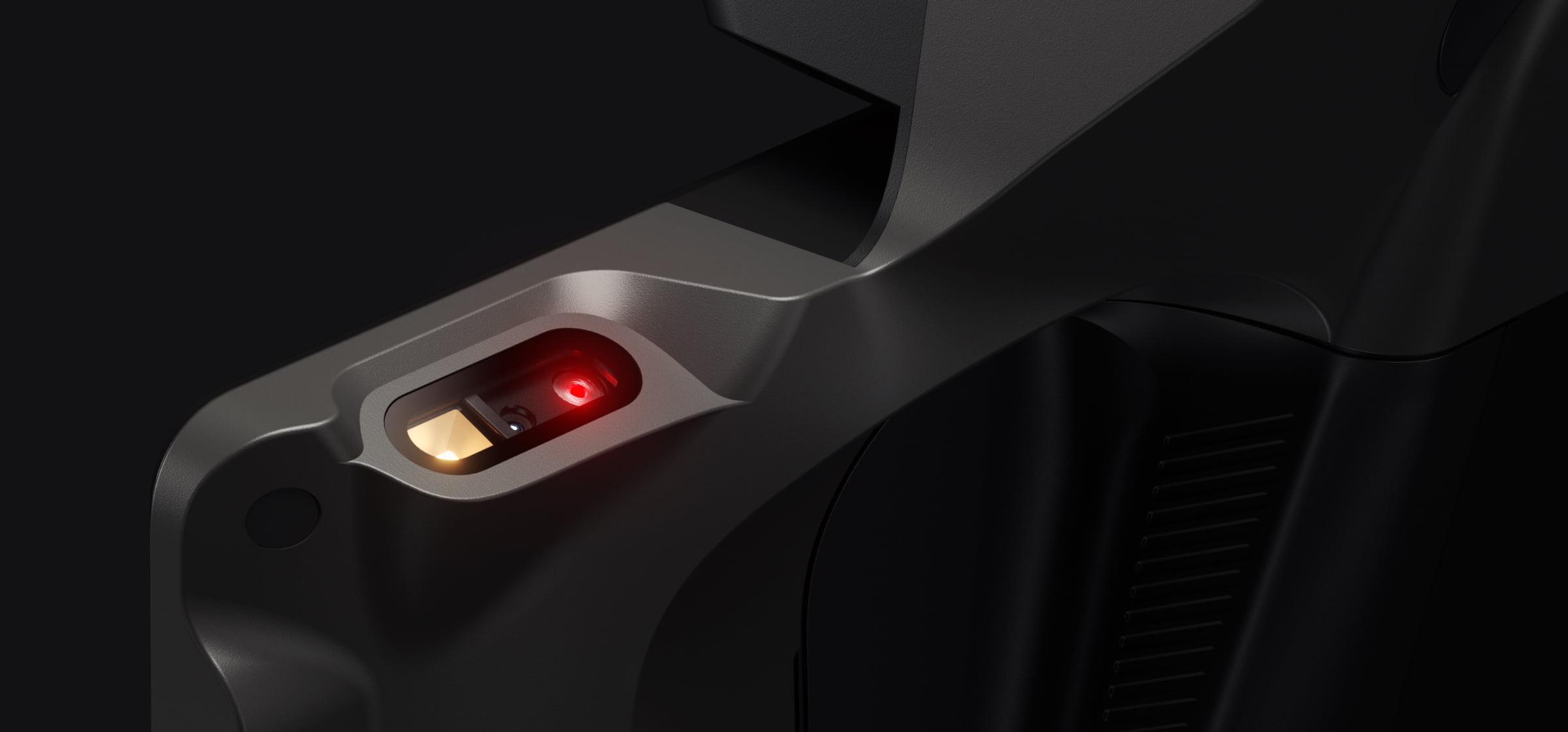

Professional scanner integrated 1D/2D barcode scanning supported.

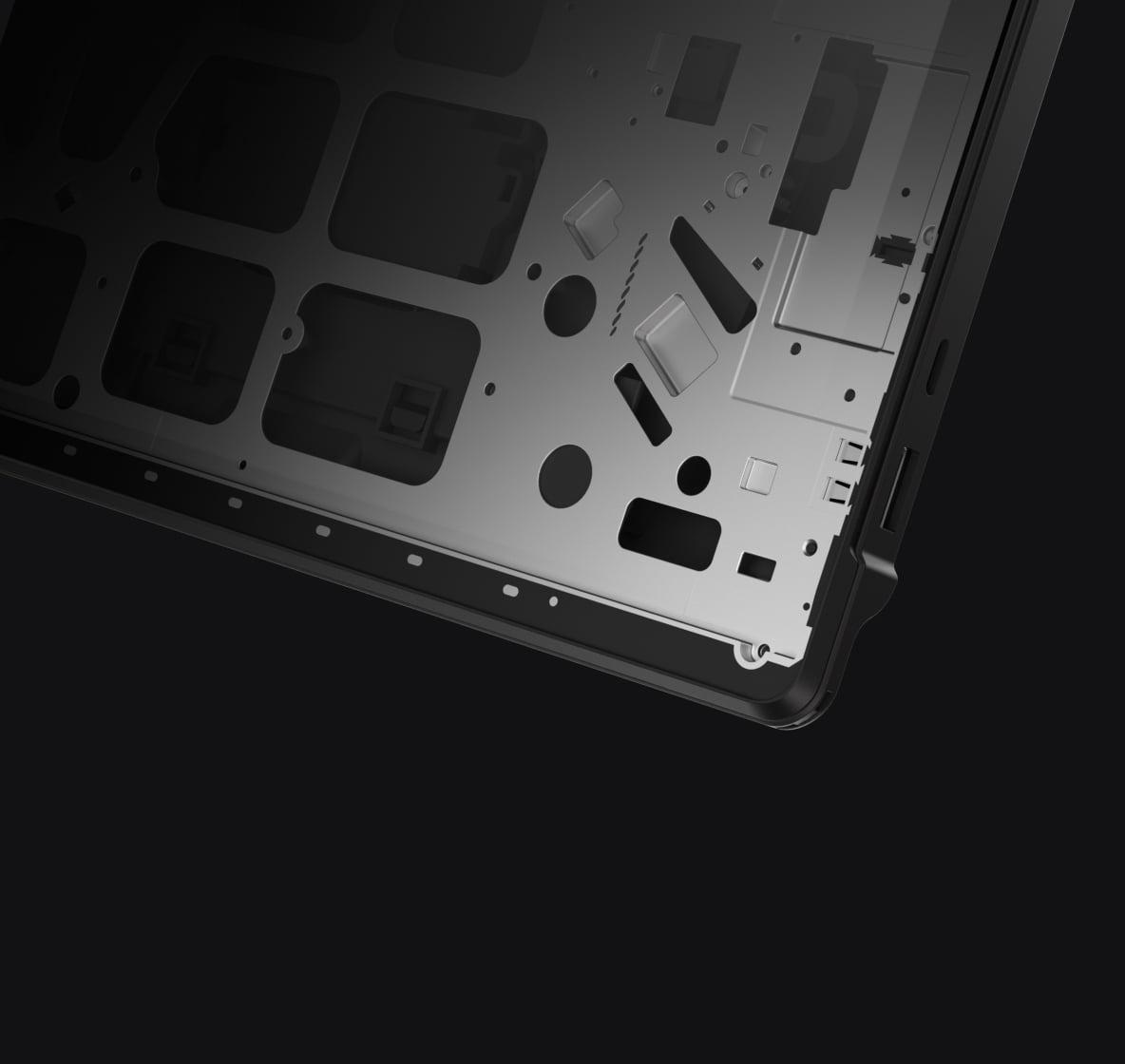

Aluminum-magnesium alloy frame and incell touchscreen make it strong yet slim and light.

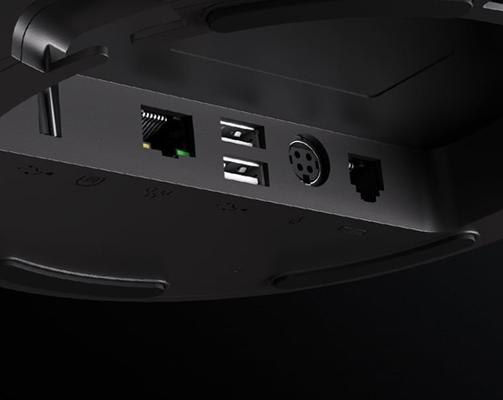

Multi-function Cradle
*From left to right: USB Type A Port, RJ45 LAN Port, USB Type A Port, Power Port, RJ12 Cash Drawer Port.

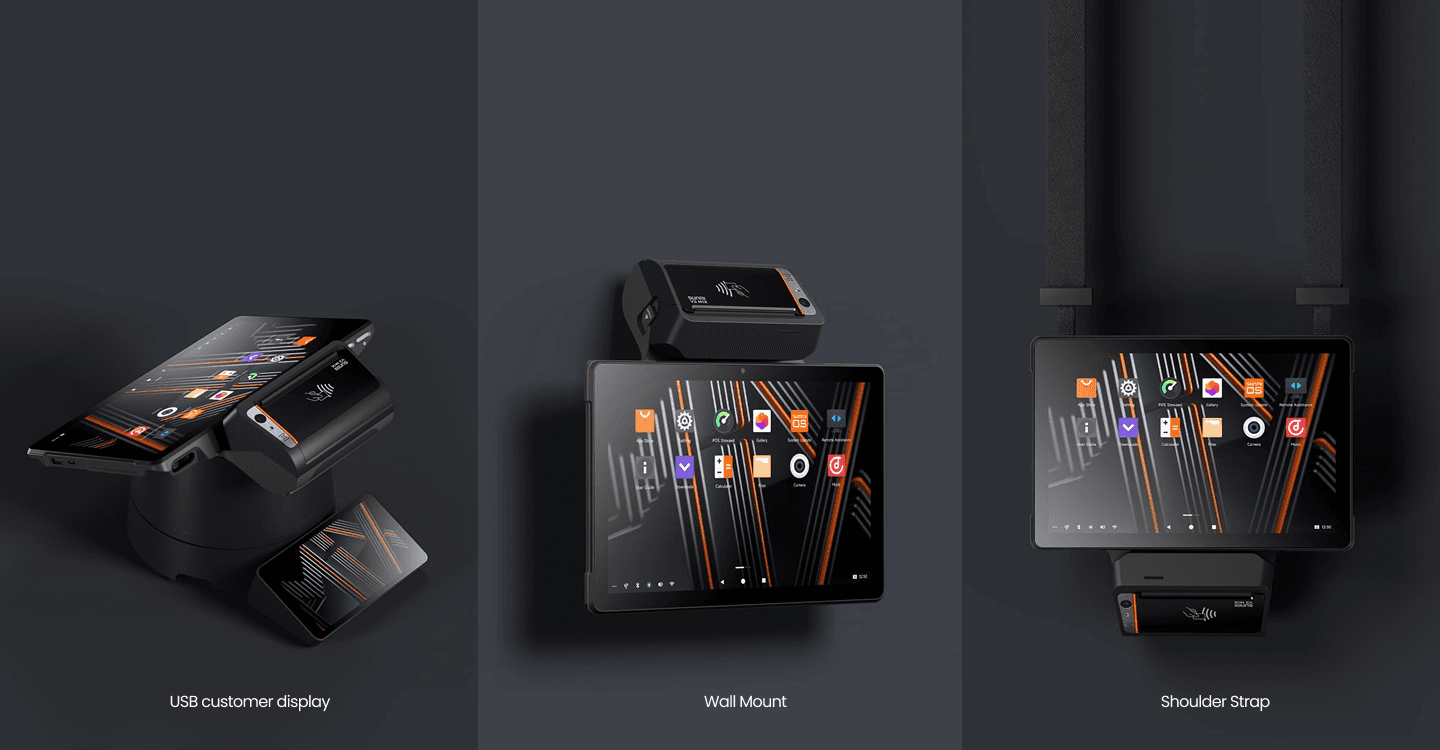

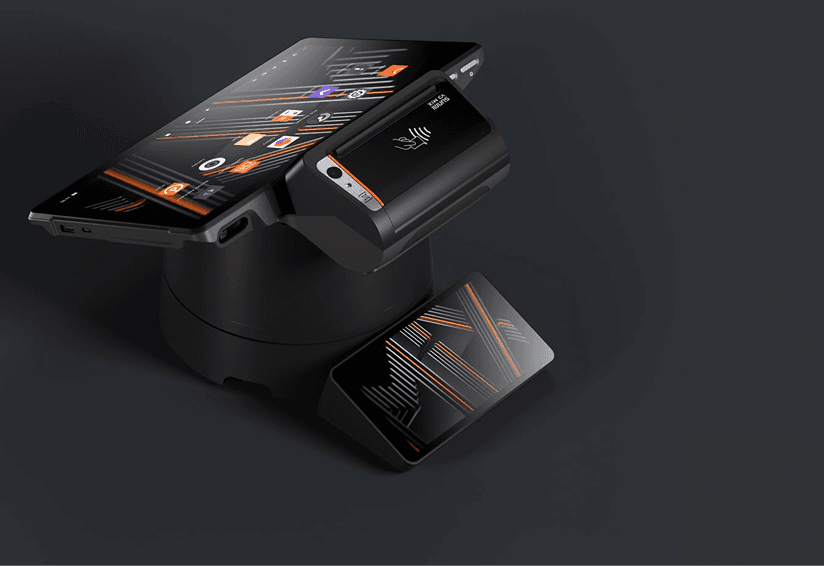

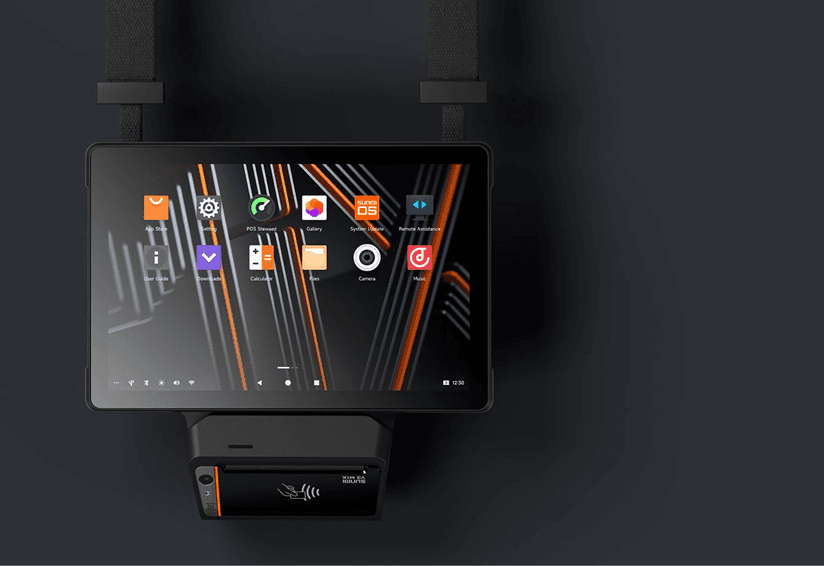

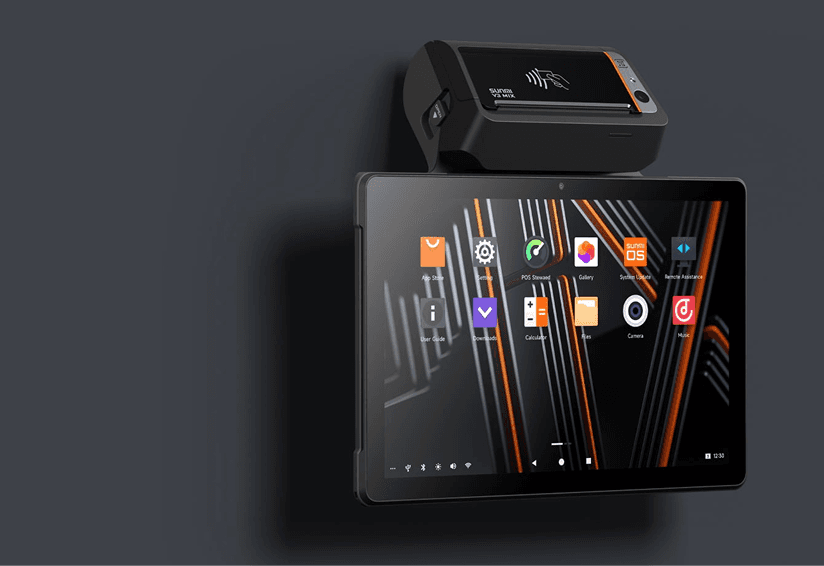

Various choices of accessories that can help your daily business.
*All Pictures shown are for illustration purpose only, actual product may vary. The USB customer display, wall mount, shoulder strap will be released soon. Please contact your sales manager for availability.

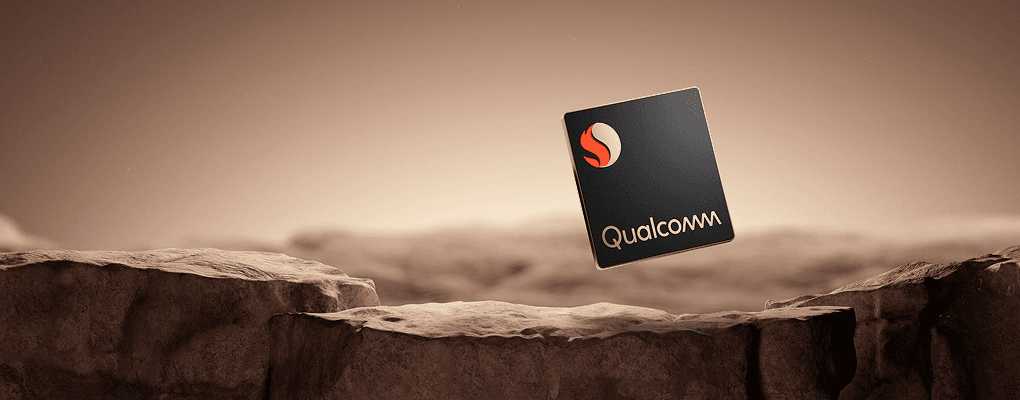

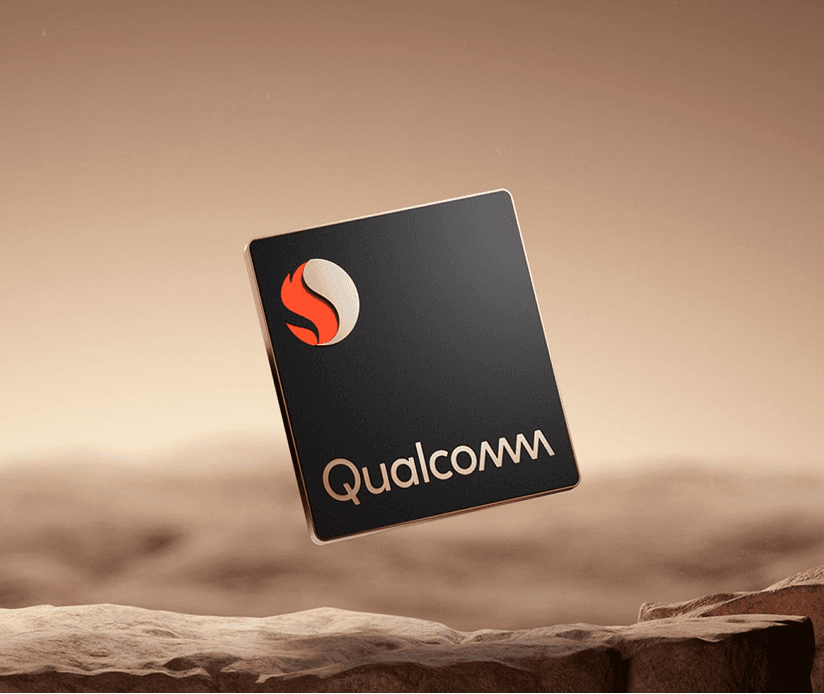

Qualcomm hexa-core processor and 4GB RAM + 32GB ROM memory for an assured strong performance.
SUNMI OS 4.0 born for business, better in experience
Designed exclusively for business, SUNMI OS 4.0 delivers an exceptional user experience and ensures robust security across every aspect of your operations.
Enjoy one-touch convenience with integrated account and touch ID.
Deploy remotely and launch immediately.
Upgraded security to provide comprehensive protection of user data and privacy.
Display what you want to your customers on the secondary display.
Comprehensive after-sales services to ensure your business runs smoothly and confidently. We design our post-purchase care to cover every step — keeping your operations seamless, uninterrupted, and dependable in every use.
SUNMI V3 MIX Tech Specs
Product Model
T5701
OS
SUNMI OS 4.0 (based on Android 13)
Processor
Qualcomm hexa-core 2.4/1.9GHz
Memory
4GB RAM+32GB ROM
Display
10.1"HD 1280*800 IPS
Printer
Thermal Printer Print speed: 70mm/s Paper Roll Width / Diameter: 58mm/ 40mm
Camera
Front 2MP FF 0.3MP FF for QR code payment
Scanner
2D professional scanner
Wi-fi
Supports IEEE 802.11 a/b/g/n/ac 2.4G/5G
Speaker
1.2W
Bluetooth
BT2.1/3.0/4.2, supports BLE
Battery
Removable Lithium battery, 7.2V/2600mAh
Button
Power button, volume button and scan button
GPS
GPS, AGPS
NFC Reader
Type A&B card, Mifare card, FeLica card ISO/IEC 14443 and ISO 15693 compliant
PSAM Card Slot
PSAM Card slot, complies with ISO7816 standard 3.0V/1.8V
SIM Card Slot
Dual Nano SIM Card slot supports 3.0V/1.8V
SD Card Slot
MicroSD *1
Fingerprint
Only for login
Power Adapter
Input: AC100-240V Output: 5V/2A
Weight
670g (58mm)
Environment
Operating temperature: 0°C~45°C (except 3D camera) Storage temperature: -20°C~60°C
Cradle (Optional)
For charging, 3*USB Type A, RJ11, RJ45
Cradle Customer Display (Optional)
USB GFD 6.7" touchscreen
Environment
3*USB 2.0 Type A port 1*USB 3.0 Type A port 1*USB Type C 2*Micro USB port 1* Micro-USB debug port 1*RJ45 1*RJ11 1*RJ12 1*DC
Dimensions (L*W*H)
246*231*73mm
