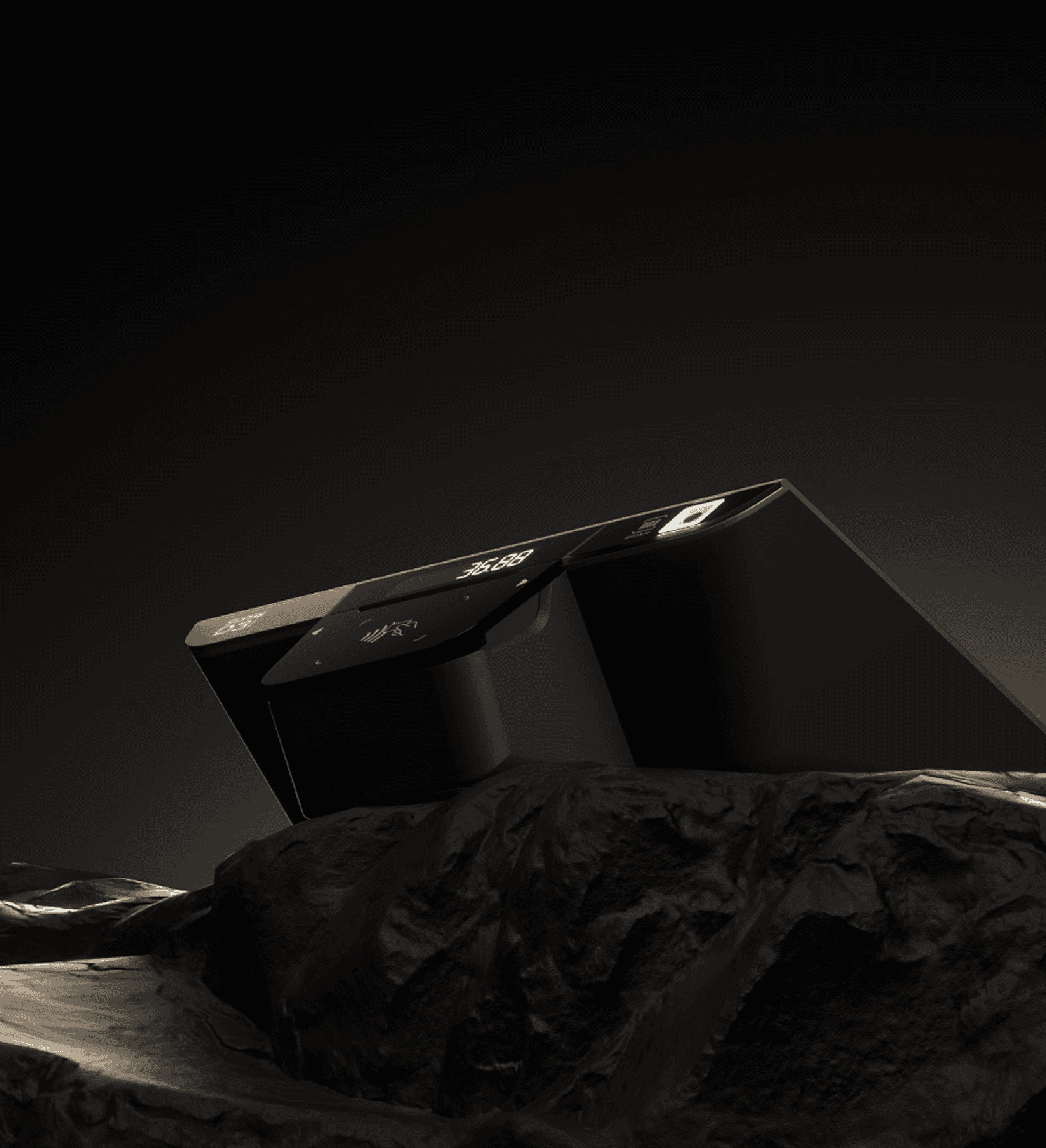

Smart Desktop Terminal

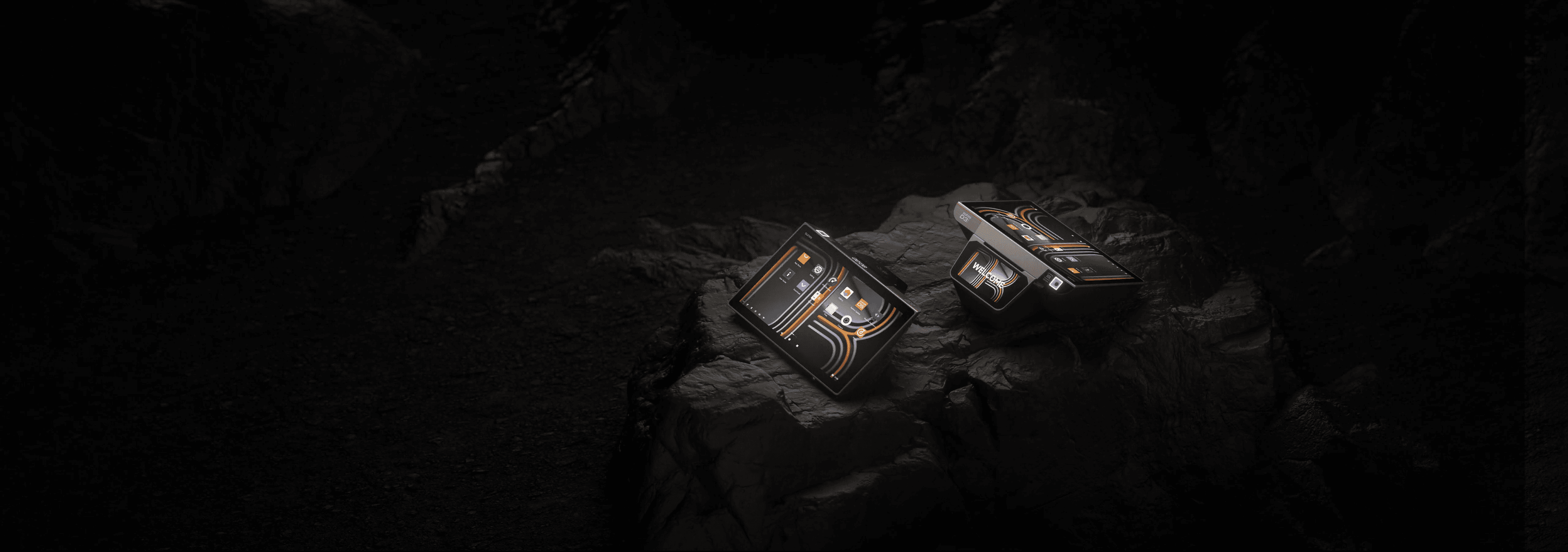

SUNMI D3 MINI
Compact, loaded with features.

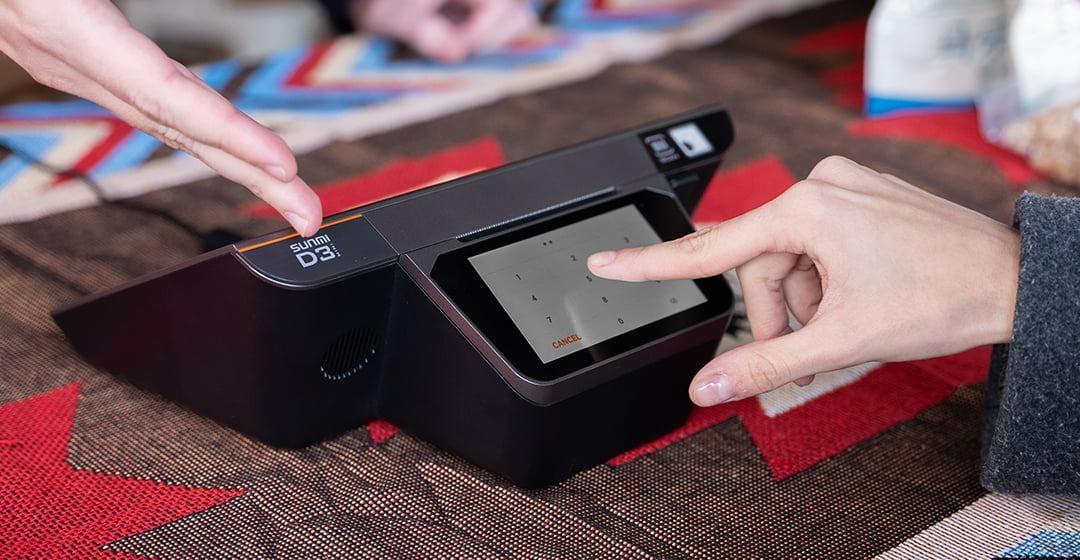

Food Stall
The smooth-running D3 MINI will help you take care of customers flocking to your busy stall and deliver an experience that both you and your customers would love.
Up to
4X
The speed in test (Antutu Benchmark)
Up to
15X
The speed in test (Antutu Benchmark)
Up to
2X
The speed in test (Antutu Benchmark)

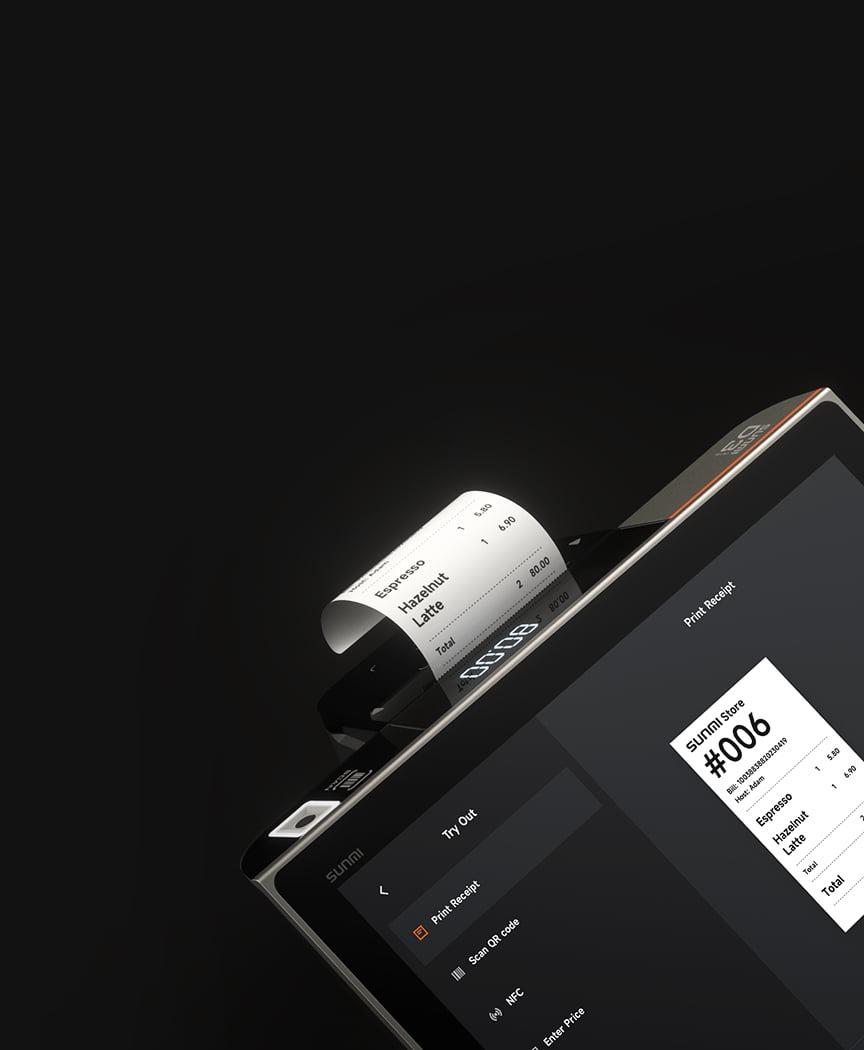

“AII-in-one”

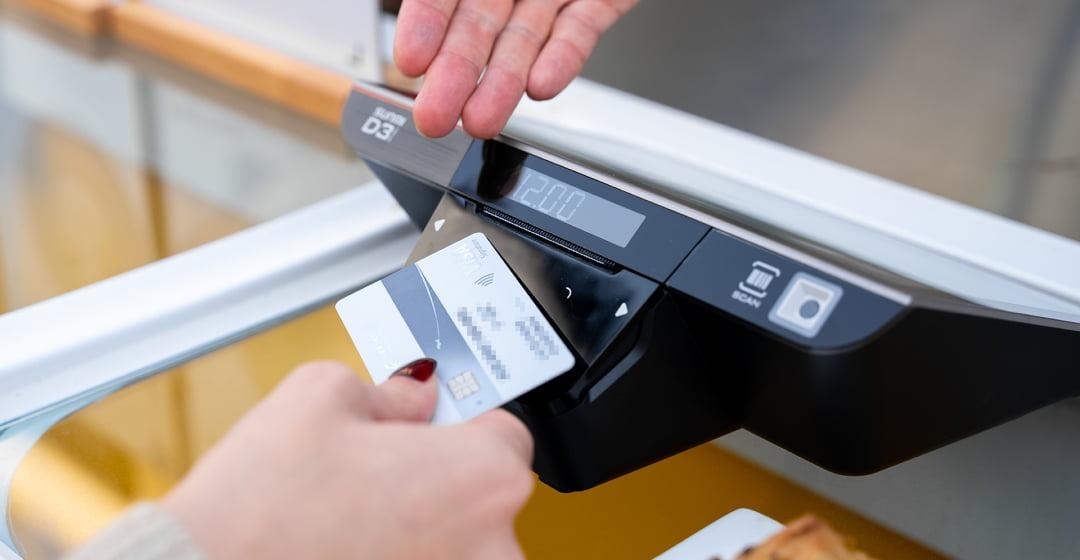

NFC Reader
Scanner
Printer
Battery available (58mm version)
Supporting over 4h battery life*
100mm/s
Print speed
50mm
Roll OD

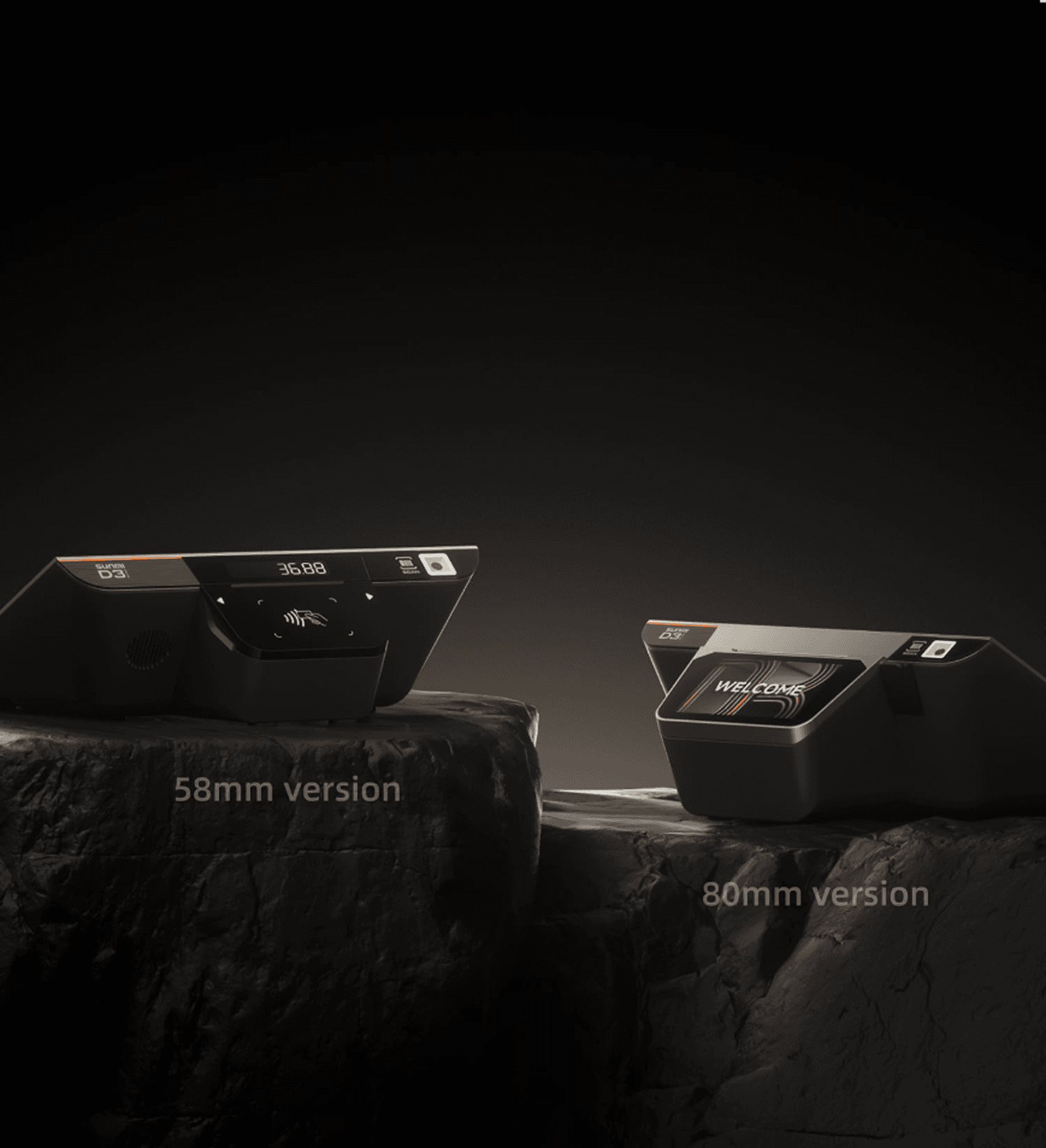

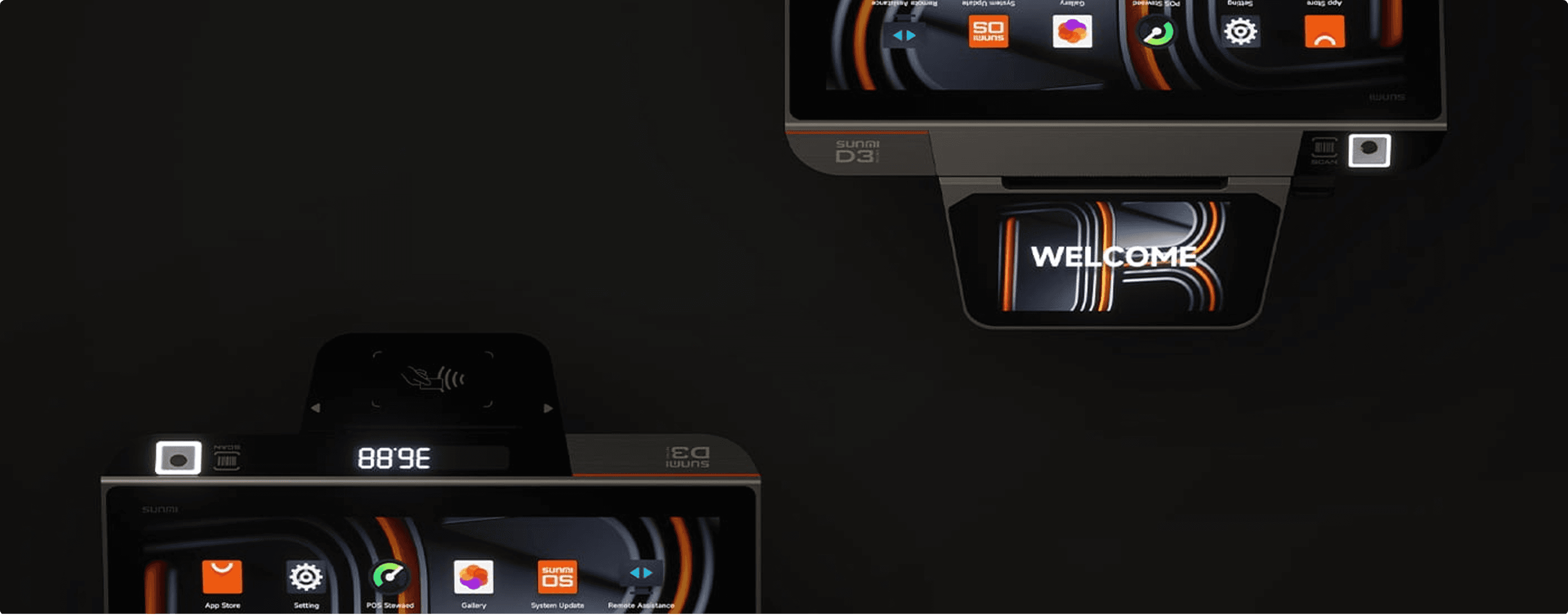

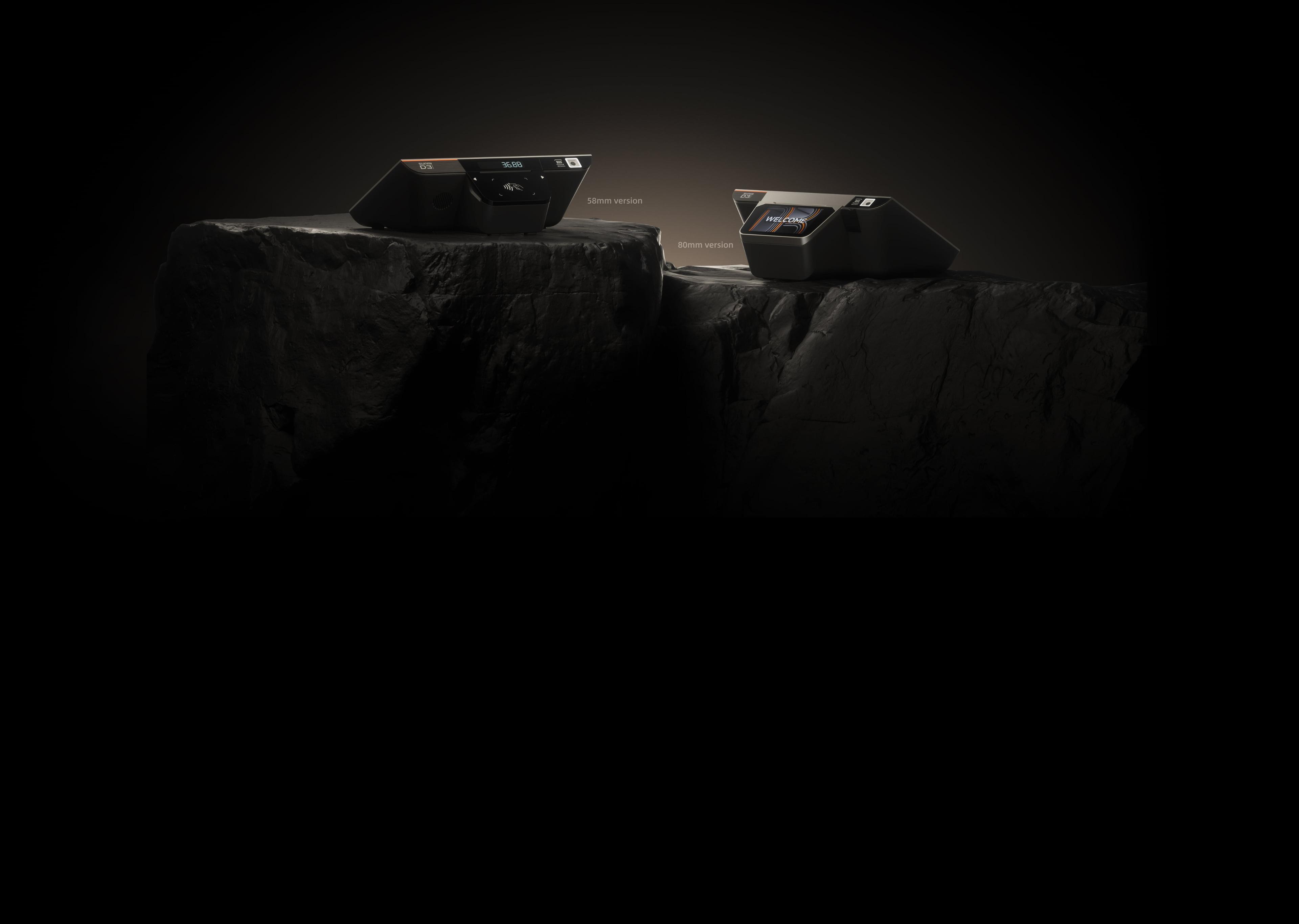

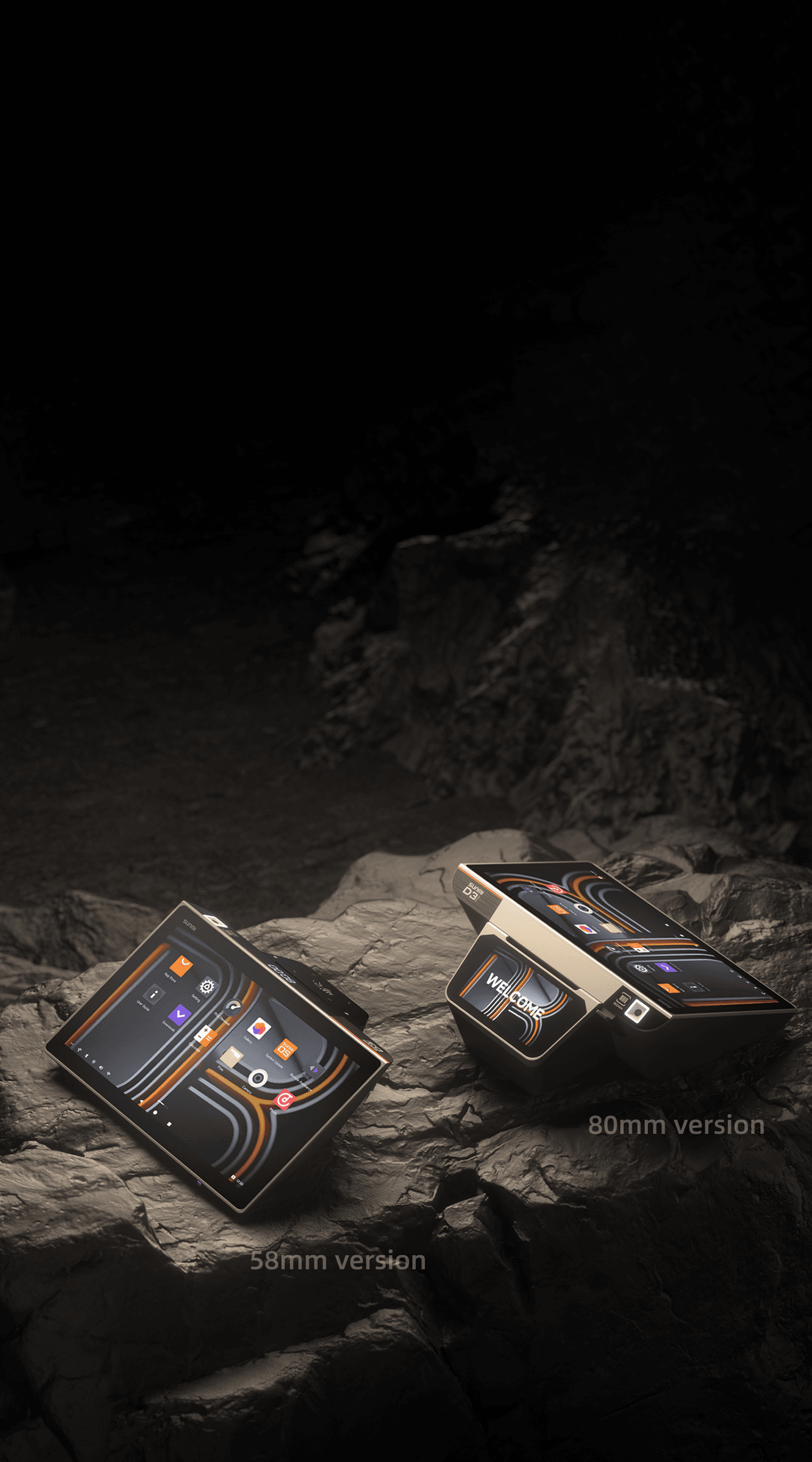

58mm version
7-segment display
80mm version
4-inch IPS secondary display
Visually appealing,
incorporating ergonomics.

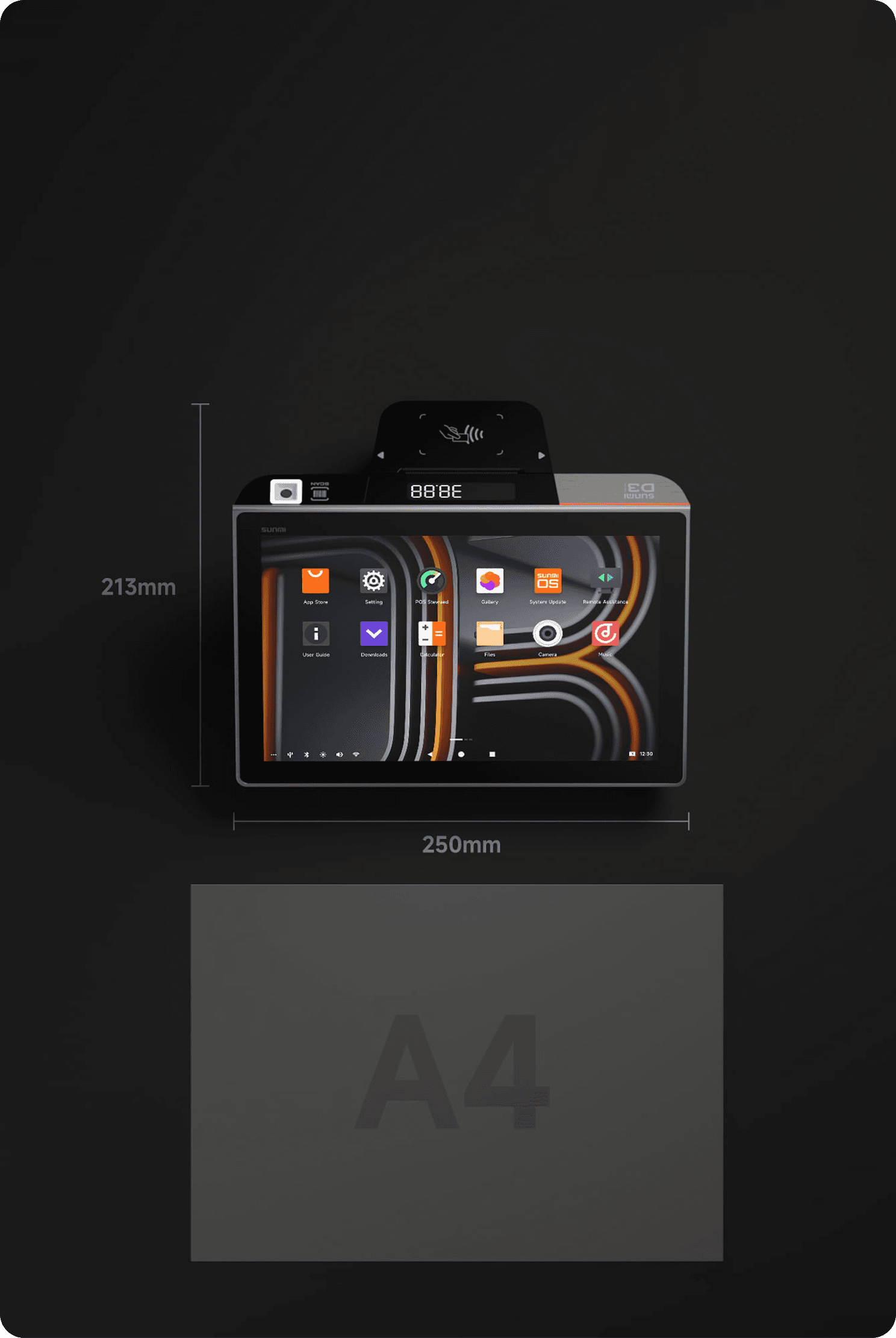

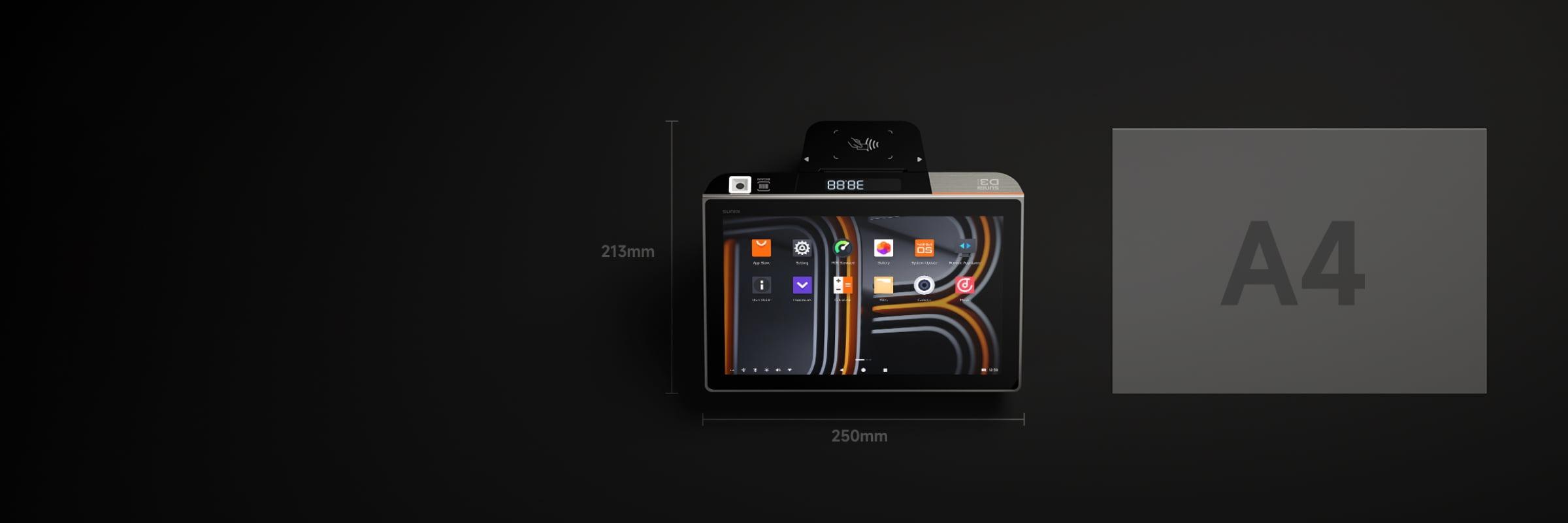

D3 MINI is small in size, light in weight and comes with a 10.1 inch screen and saves more space.

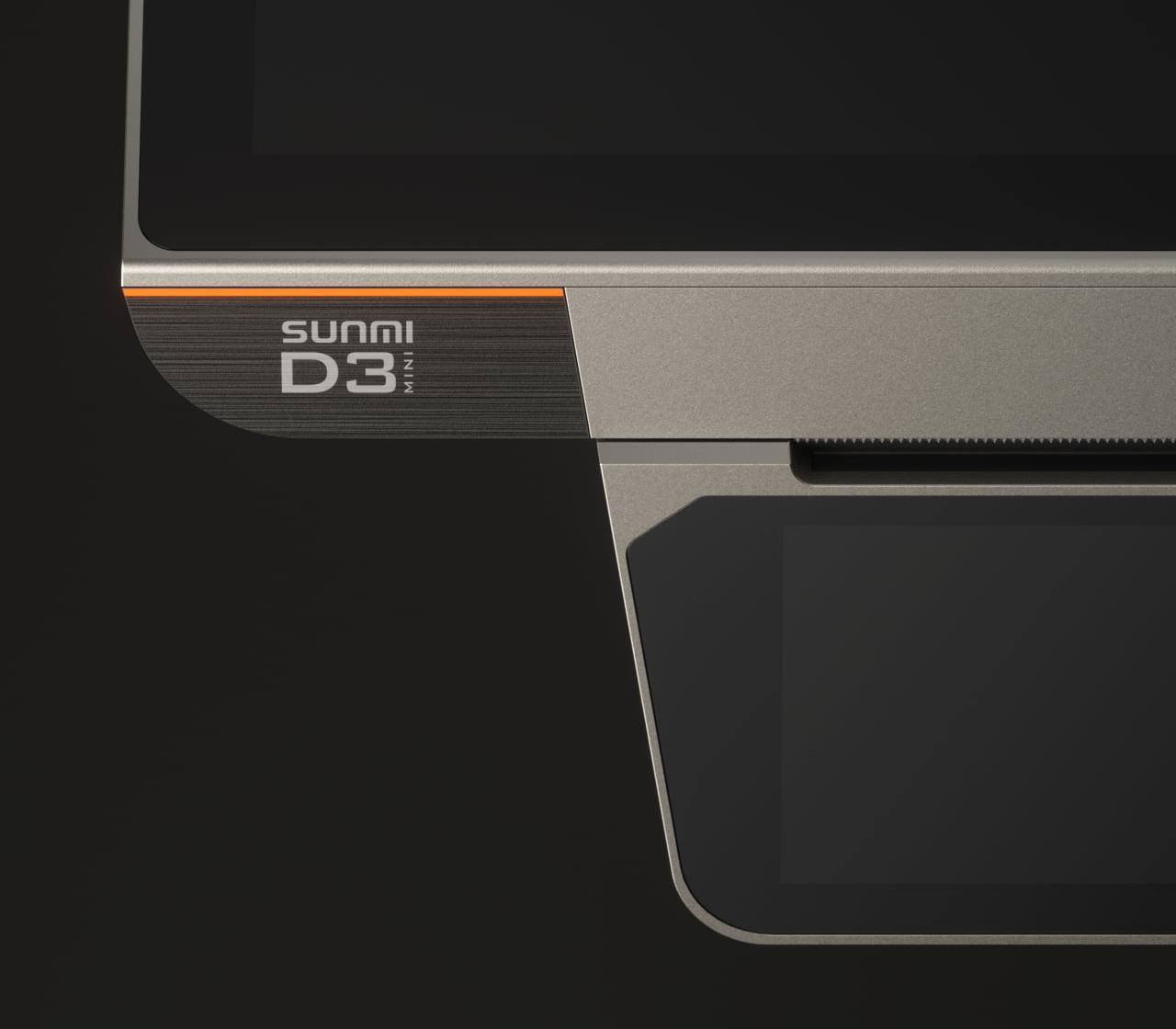

The soft silver color also brings out its minimalist and elegant design.

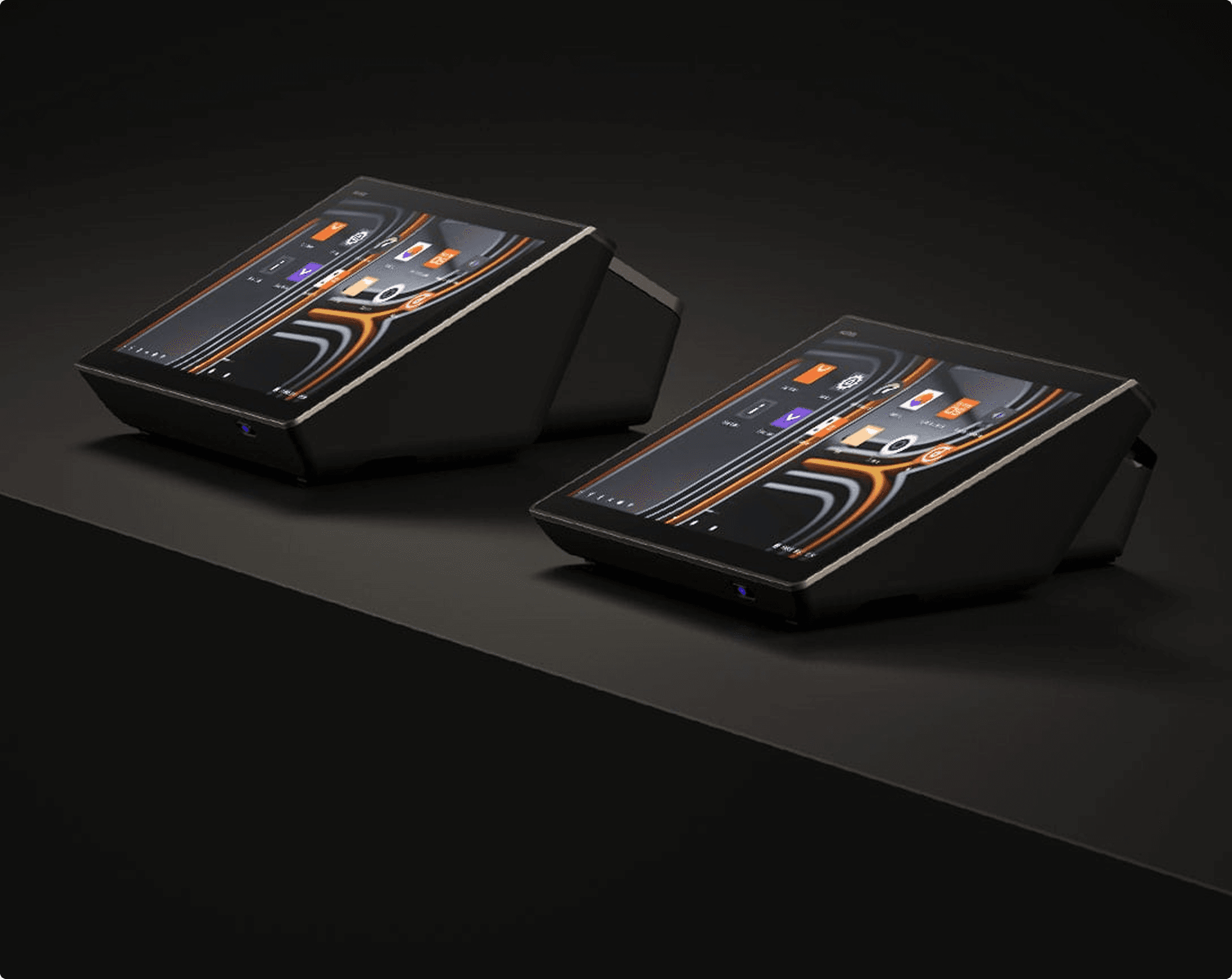

Ergonomically inclined main screen for better user experience.

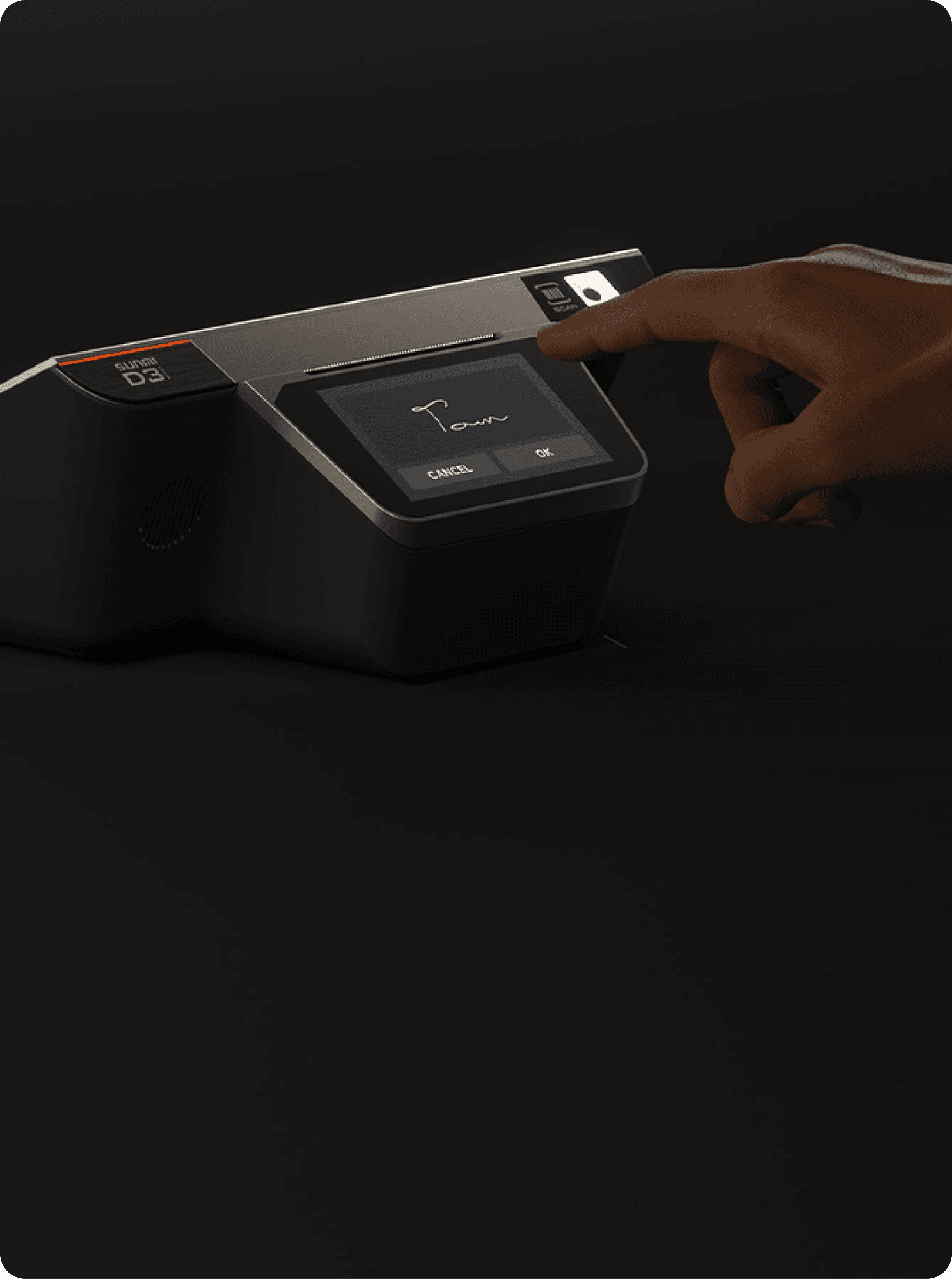

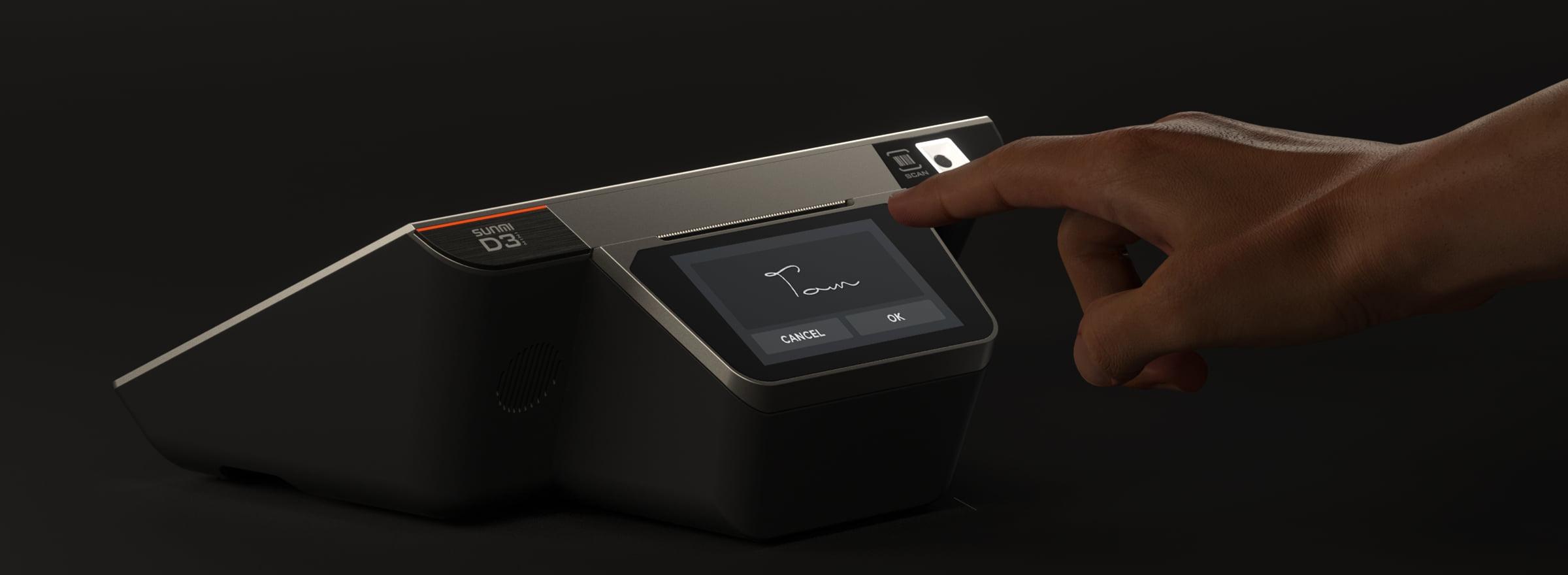

4" IPS capacitive touchscreen secondary display
Secondary display comes with a capacitive touchscreen with high responsiveness.
*Touchscreen is only available in 80mm version.

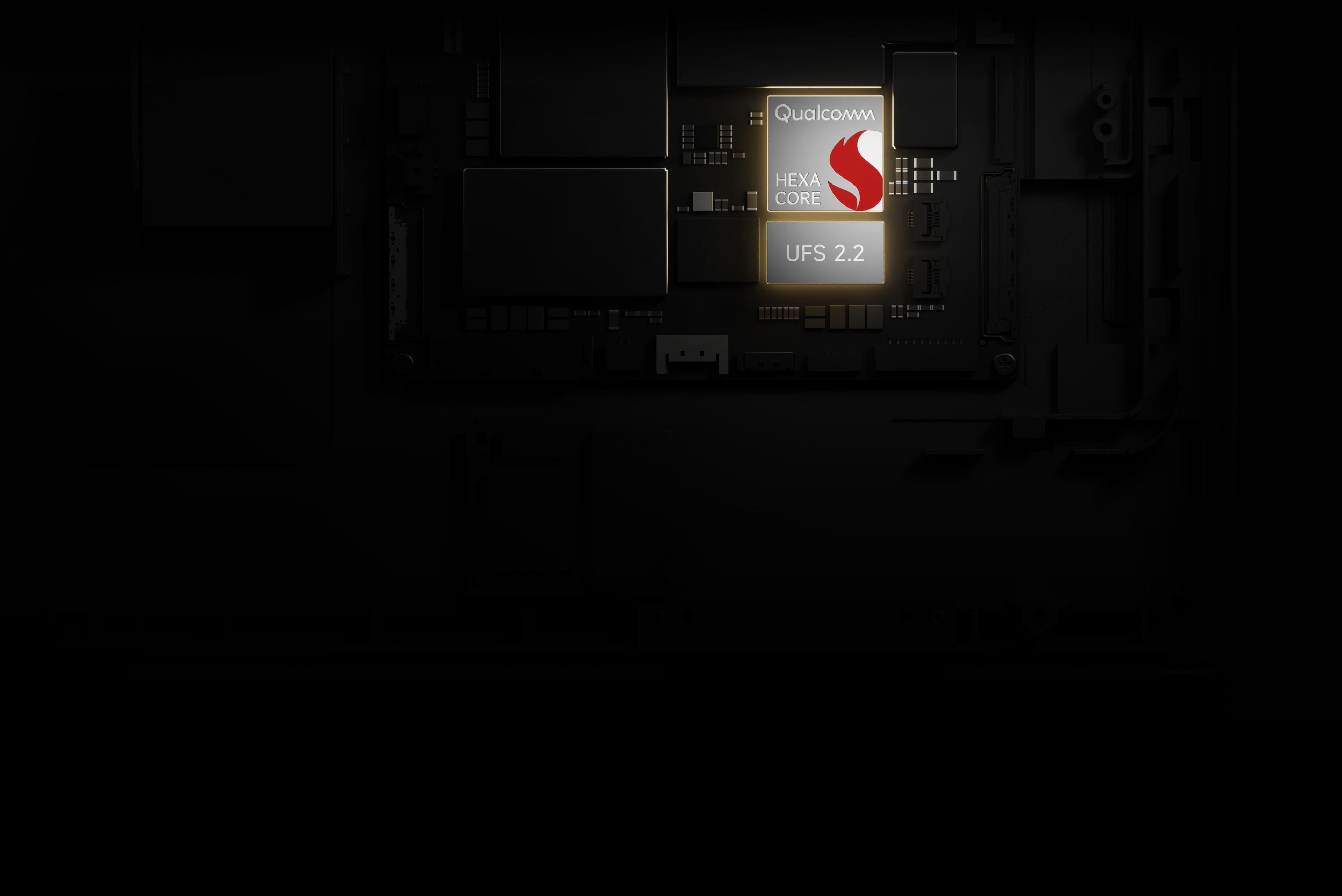

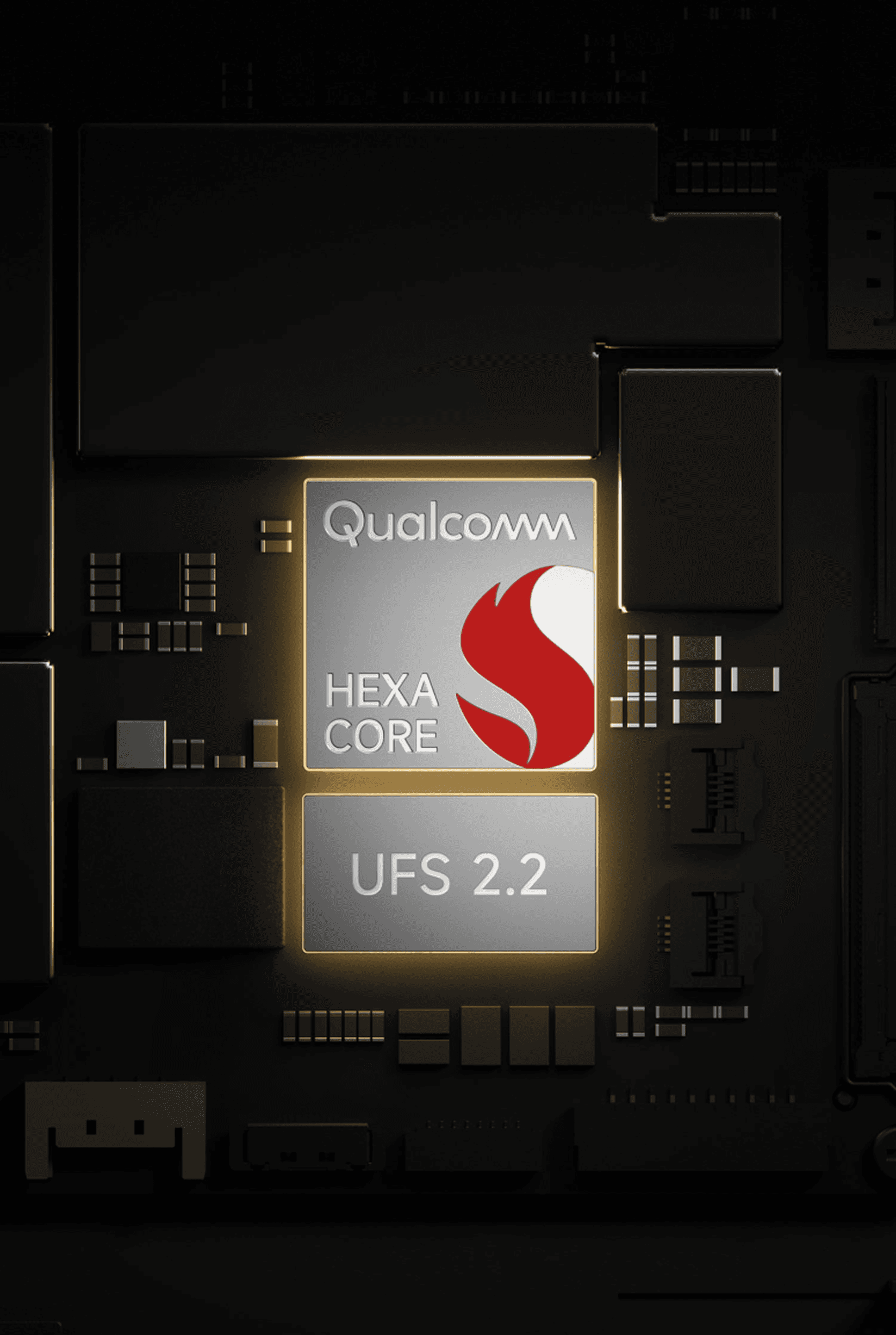

Qualcomm hexa-core 2.4GHz processor
UFS 2.2
Quick response and cache loading thanks to its high read and write speed. A UFS device is also secured and reliable for your data.
3GB RAM 32GB ROM
2.4G + 5G
Dual-band Wi-Fi

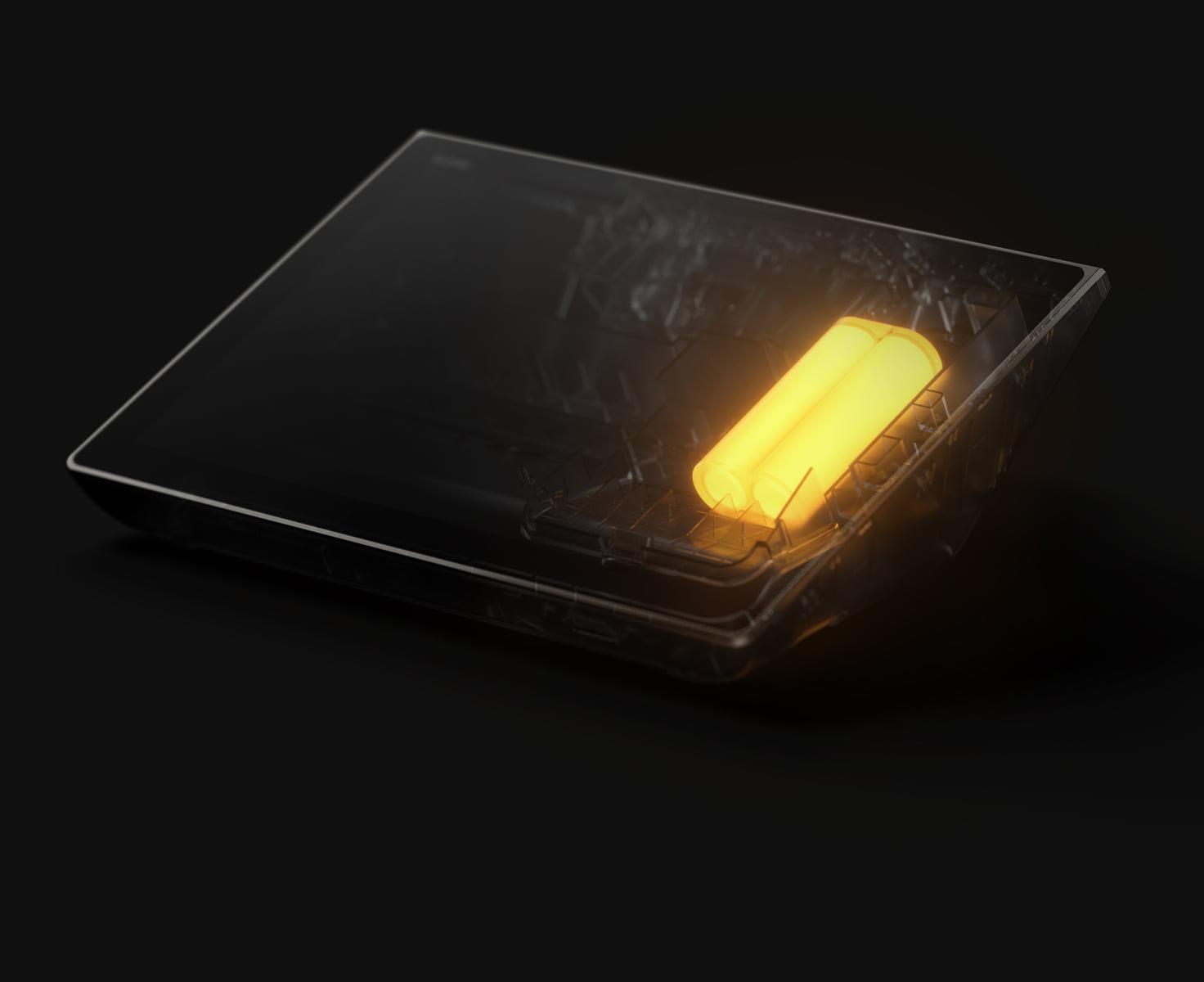

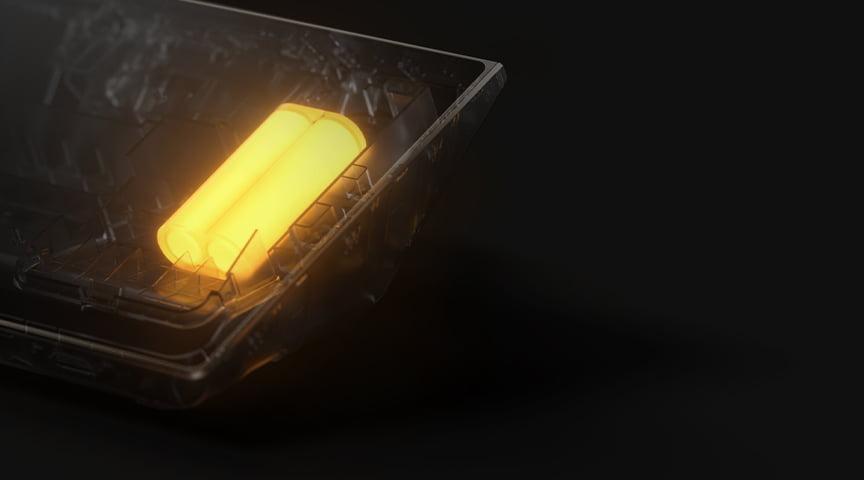

Built-in Battery
Featuring 4-hour runtime, the battery ensures stable device running under voltage fluctuation and power outage. SUNMI OS 4.0 can learn how do you use the battery to extend the battery life.
SUNMI OS 4.0 Performance Improvement
SUNMI OS 4.0 has been optimized from the underlying infrastructure to apps. Now you can see a quicker startup and page response times compared with its predecessor.
App startup speed
Movement smoothness
Reliability and convenience
by design.

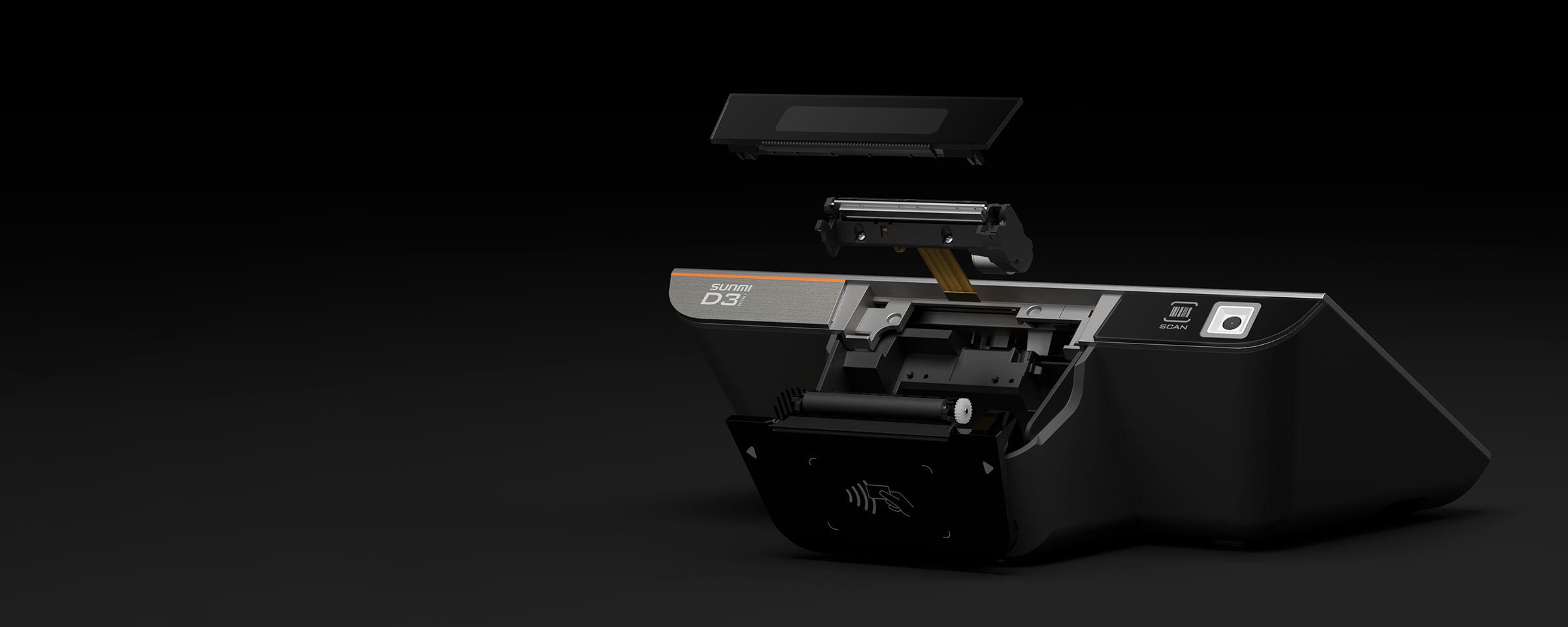

Easy to remove and maintain with the modular design.

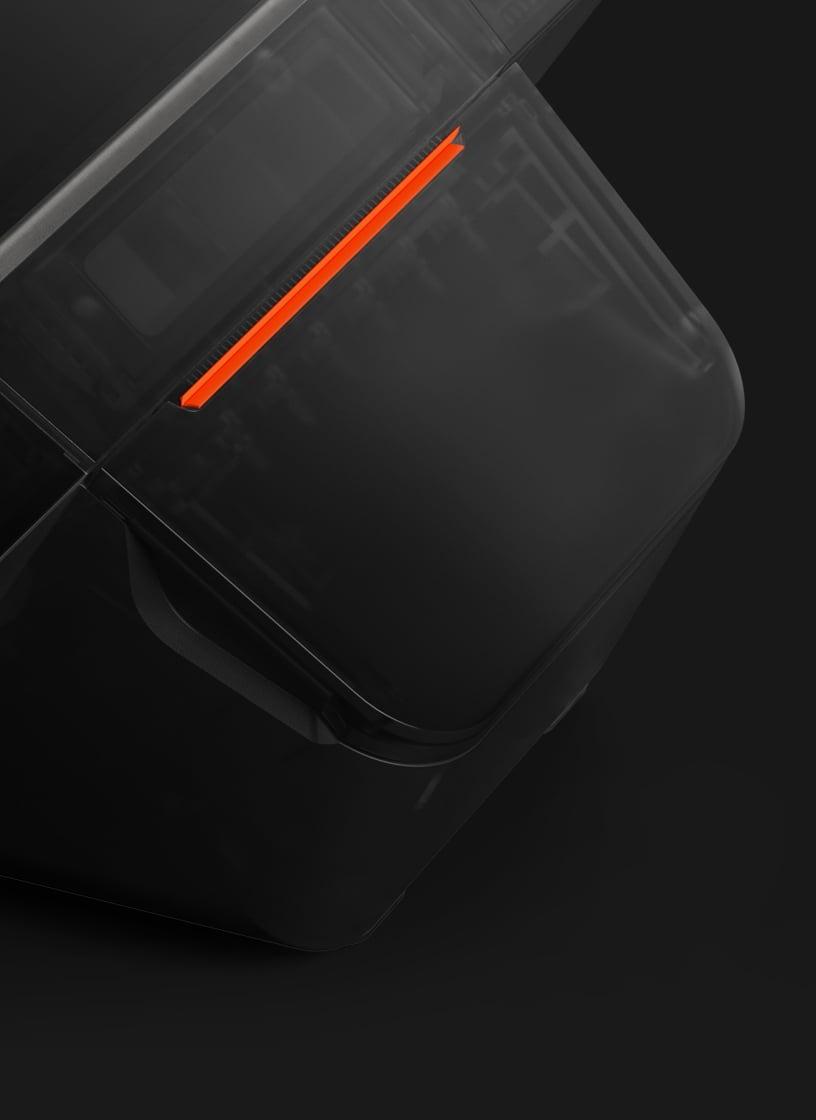

Rubber seals added to protect the printer.
Protect the printer from dust, liquid among other foreign objects.

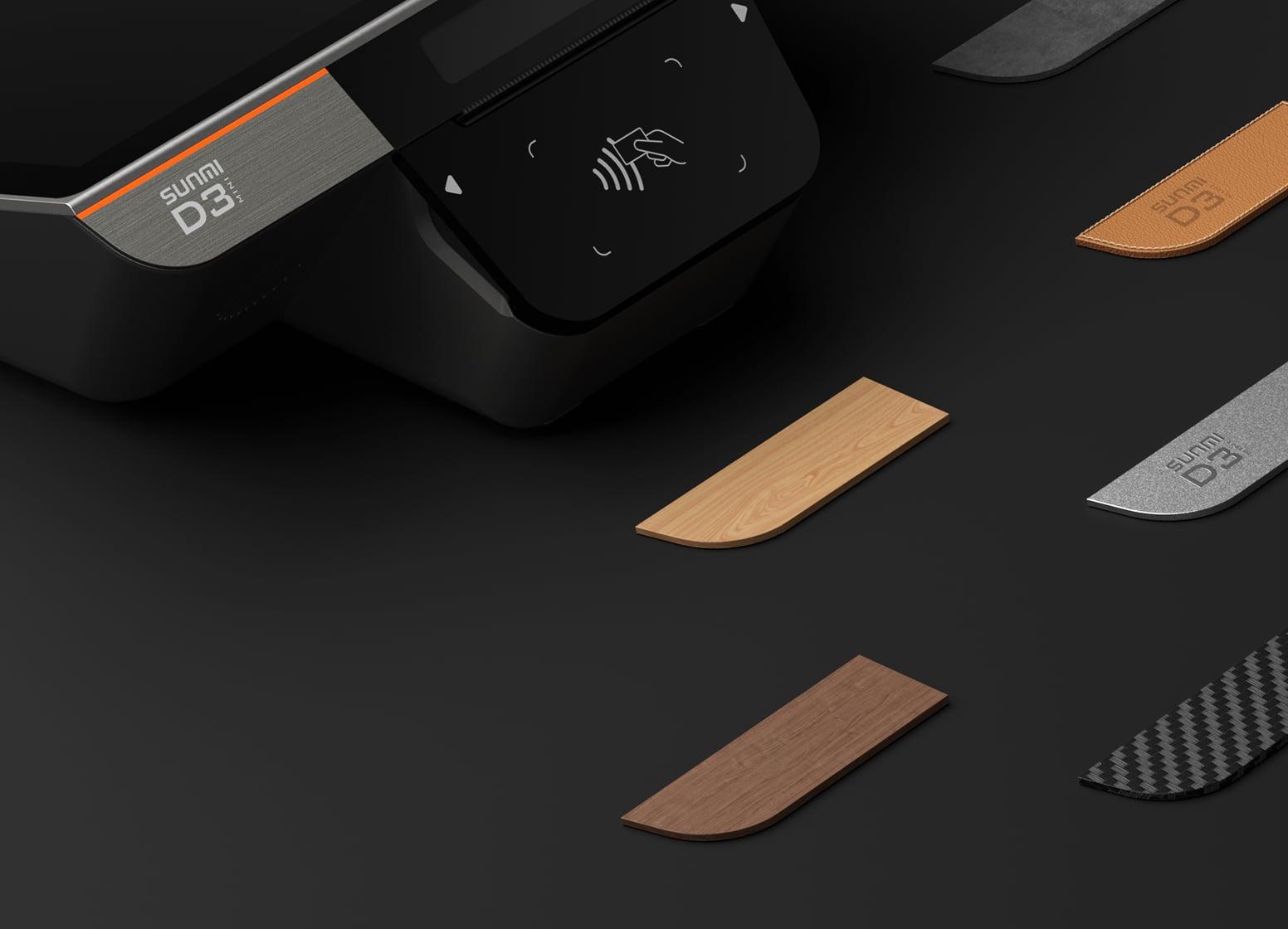

Show your brand personality.
Apply your Logo and brand color to your devices.
SUNMI OS 4.0 born for business, better in experience
Designed exclusively for business, SUNMI OS 4.0 delivers an exceptional user experience and ensures robust security across every aspect of your operations.

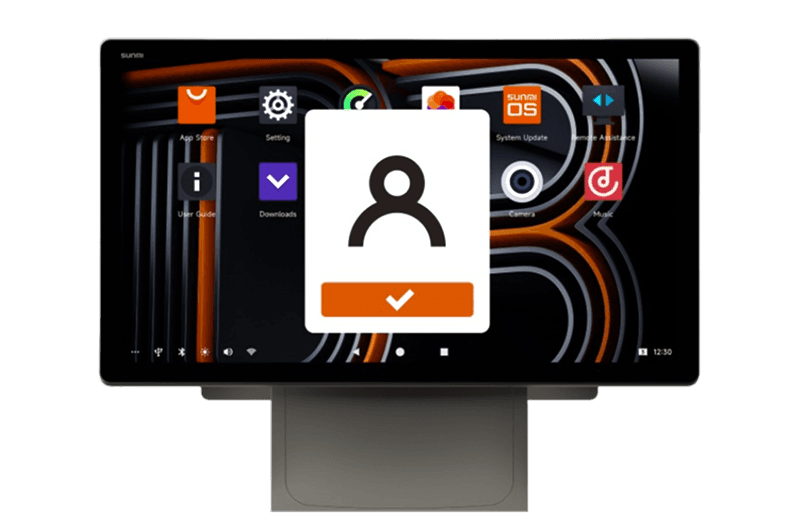

Enjoy one-touch convenience with integrated account and touch ID.

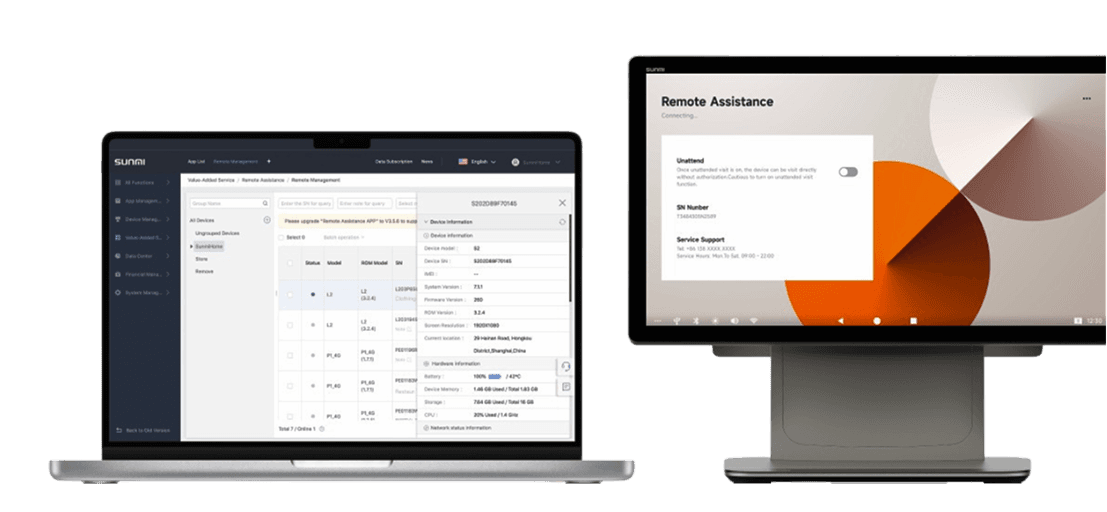

Deploy remotely and launch immediately.
Upgraded security to provide comprehensive protection of user data and privacy.

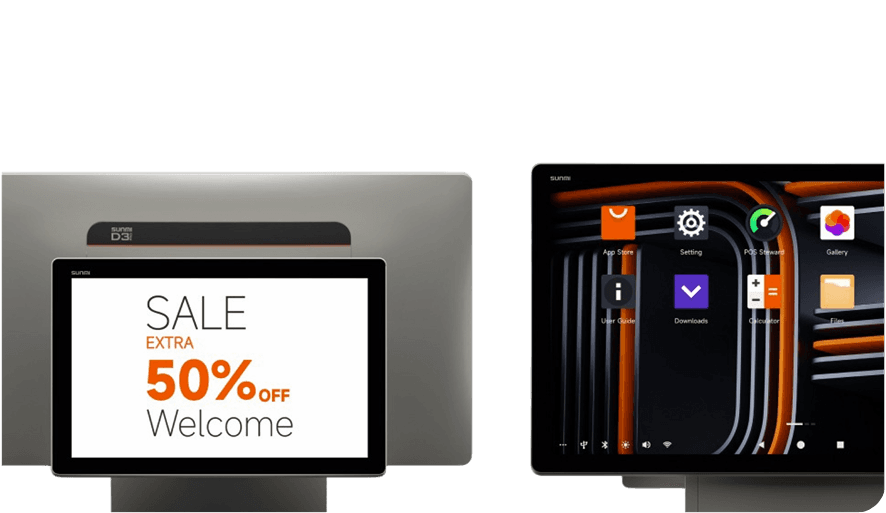

Display what you want to your customers on the secondary display.
SUNMI D3 Mini Tech Specs
Product Model
T5701
OS
SUNMI OS 4.0 (Based on Android 13)
Processor
Qualcomm hexa-core 2.4/1.9GHz
Memory
4GB RAM+32GB ROM
Display
10.1"HD 1280*800 IPS
Printer
Thermal Printer Print speed: 70mm/s Paper Roll Width / Diameter: 58mm/ 40mm
Camera
Front 2MP FF 0.3MP FF for QR code payment
Scanner
2D professional scanner
Wi-fi
Supports IEEE 802.11 a/b/g/n/ac 2.4G/5G
Speaker
1.2W
Bluetooth
BT2.1/3.0/4.2, supports BLE
Battery
Removable Lithium battery, 7.2V/2600mAh
Button
Power button, volume button and scan button
GPS
GPS, AGPS
NFC Reader
Type A&B card, Mifare card, FeLica card ISO/IEC 14443 and ISO 15693 compliant
PSAM Card Slot
PSAM Card slot, complies with ISO7816 standard, 3.0V/1.8V
SIM Card Slot
Dual Nano SIM Card slot supports 3.0V/1.8V
SD Card Slot
MicroSD *1
Fingerprint
Only for login
Power Adapter
Input: AC100-240V, Output: 5V/2A
Weight
670g (58mm)
Environment
Operating temperature: 0°C~45°C (except 3D camera) Storage temperature: -20°C~60°C
Cradie (Optional)
For charging, 3*USB Type A, RJ11, RJ45
Cradle Customer Display (Optional)
USB GFD 6.7" touchscreen
Environment
3*USB 2.0 Type A port 1*USB 3.0 Type A port 1*USB Type C 2*Micro USB port 1* Micro-USB debug port 1*RJ45 1*RJ11 1*RJ12 1*DC
Dimensions (L*W*H)
246*231*73mm
