SUNMI 4G Wi-Fi Base Station
Keeps every store's network available.
Broadband + 4G dual channel.
Dual channel backup model, second level switching in case of disability of any channel, ensure the network is available.
Intelligently close unnecessary services, save the transaction.
When the 4G network is working, base station can automatically forbid the request of unauthorized devices, save every penny.

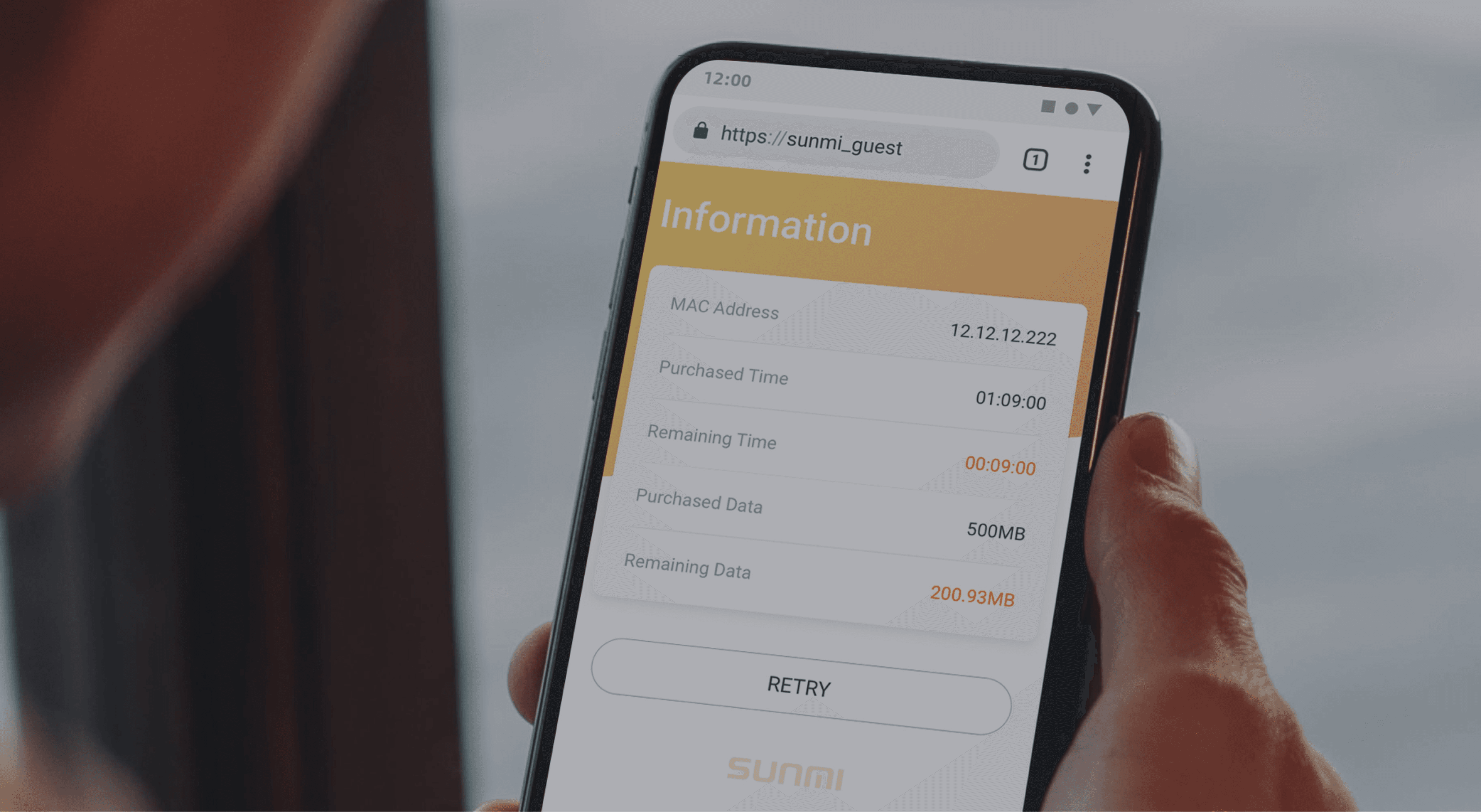

Traffic selling, small device with big business.
Easy operation to sell traffic, also easy to get huge benefits.

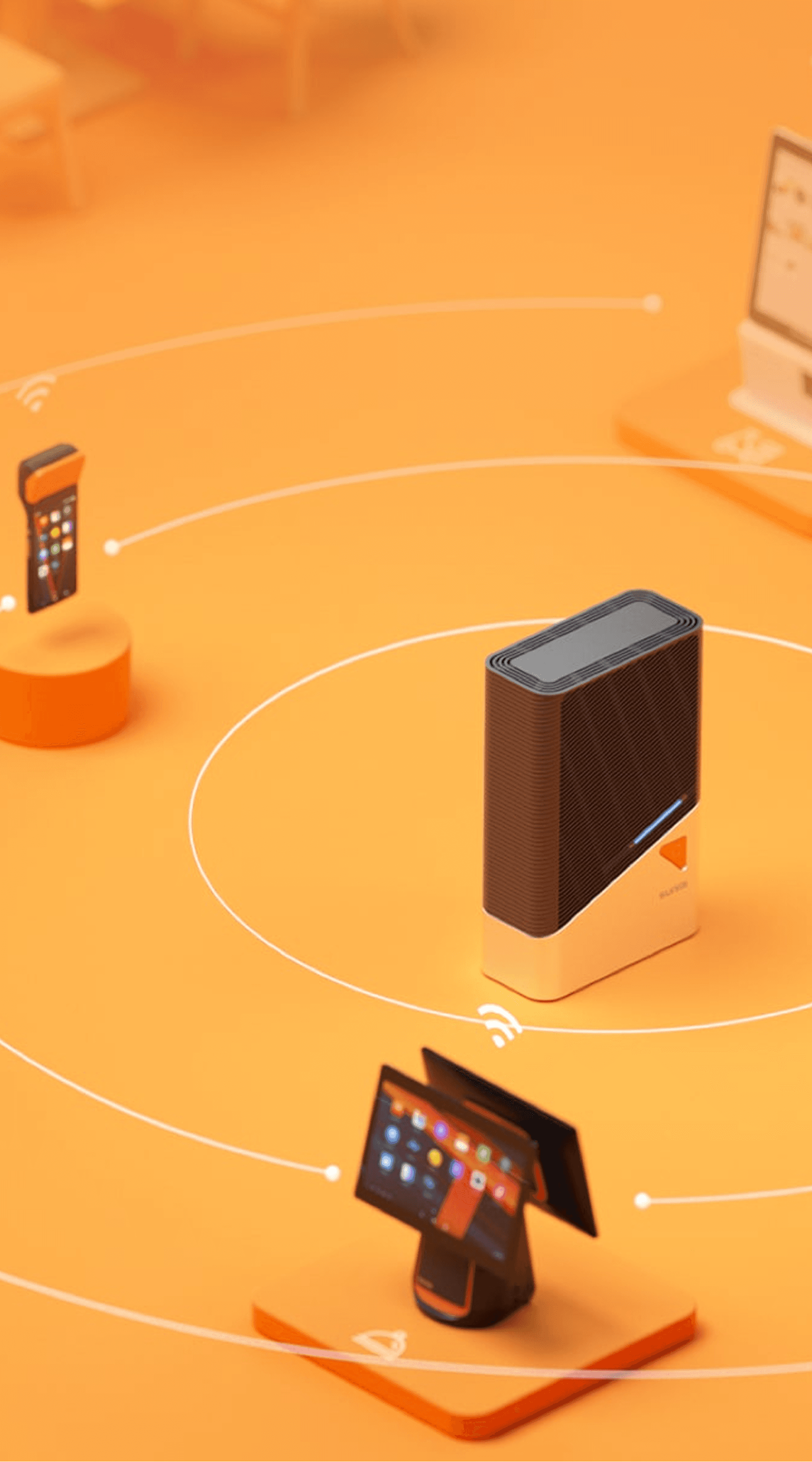

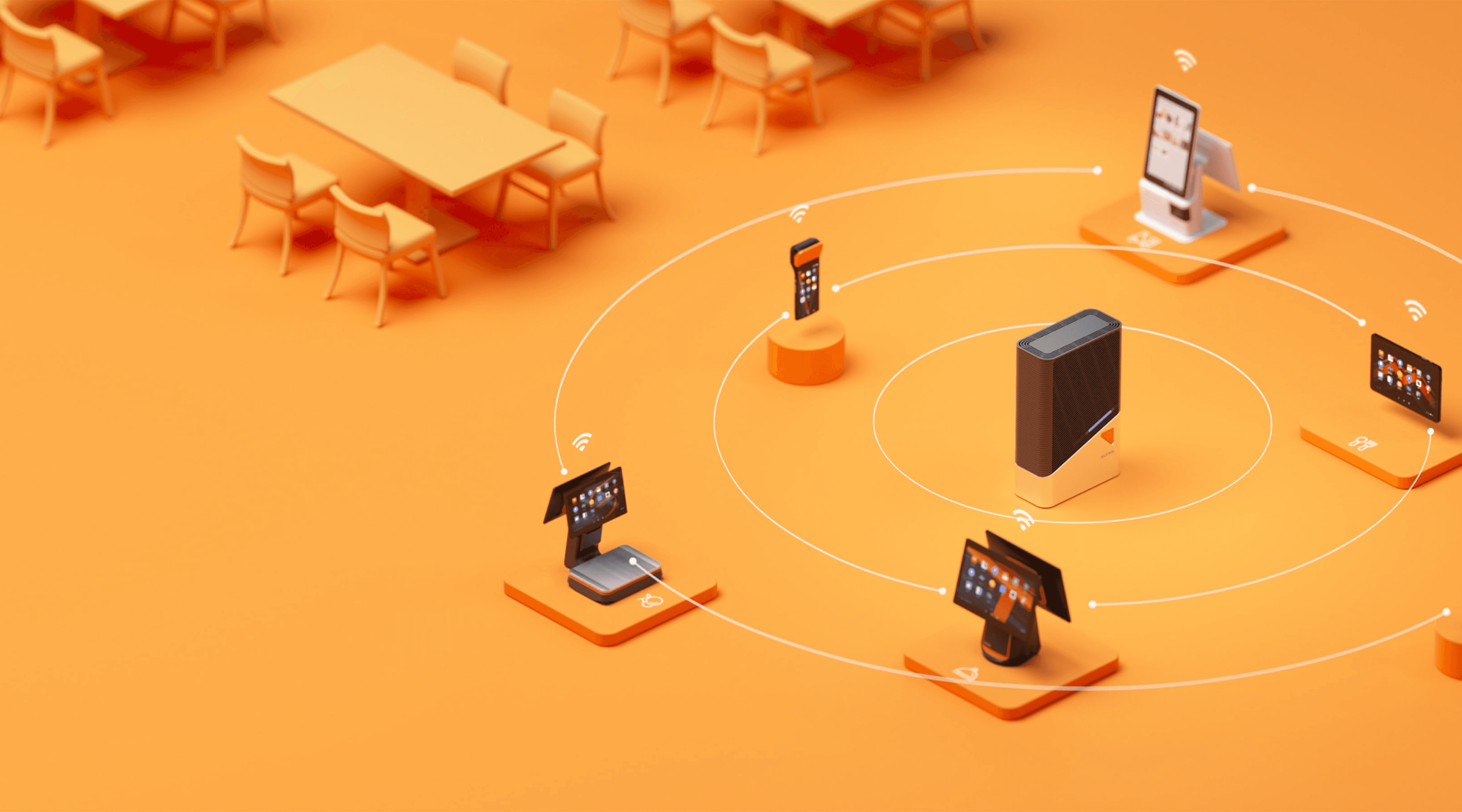

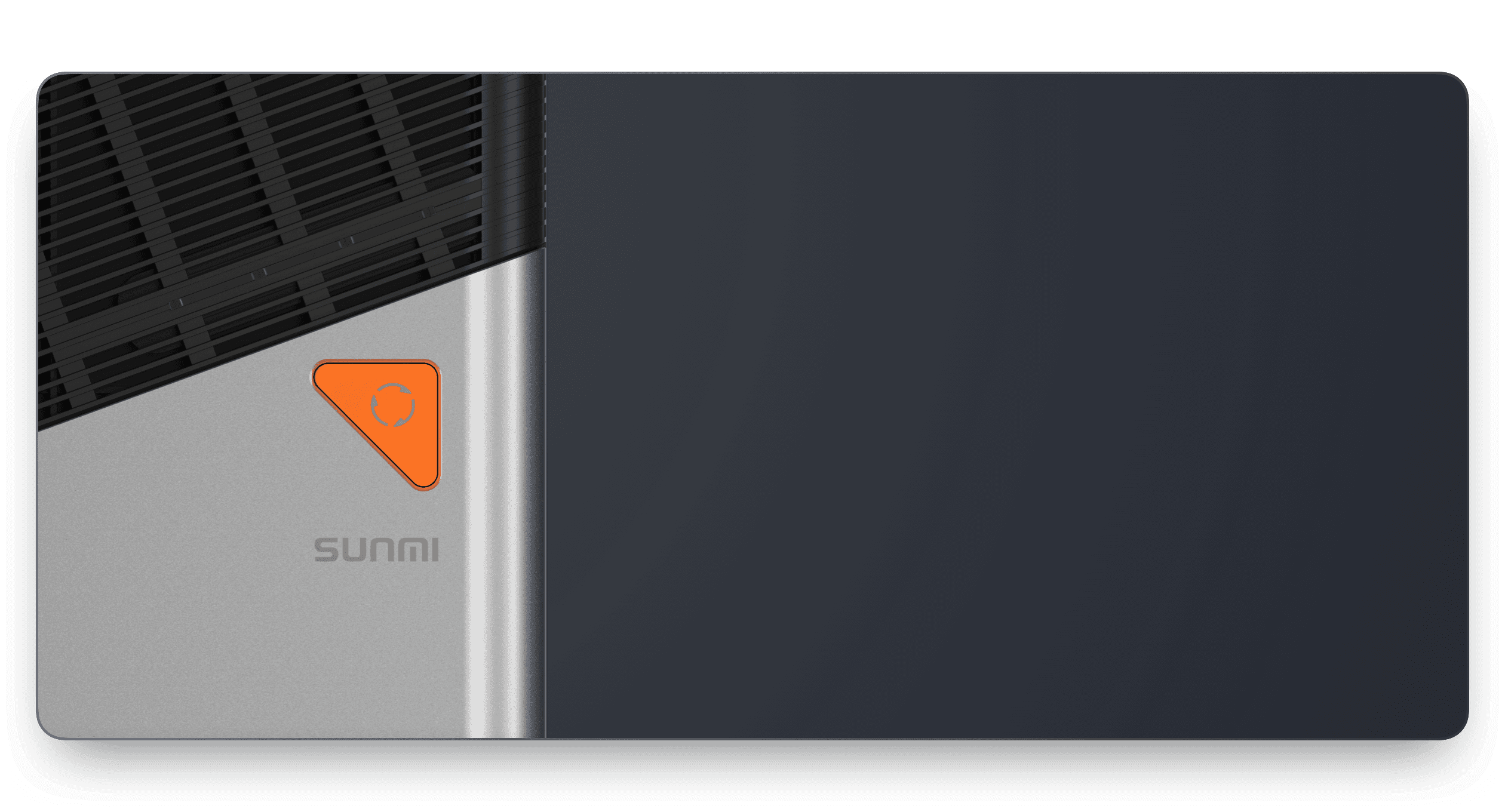

SUNMI Link, one-click for access, easy operation.
One-click to automatically connect SUNMI device.
By pressing SUNMI Link button (the orange button), SUNMI device nearby can automatically access to the network.
Bandwidth guarantee for specified devices.
When the network is busy, the intelligent bandwidth allocation strategy can ensure the priority of the specified device in the use of bandwidth.
High-performance 4-core Processor
Powerful processing performance to support more business.
512M Big Memory
Increase the data processing rate and make the business run faster.
128 Terminals Access
Easy to deal with a large mount of access request.
3 Network Separation
SUNMI network/main network/ guest network, stable and secure networking.

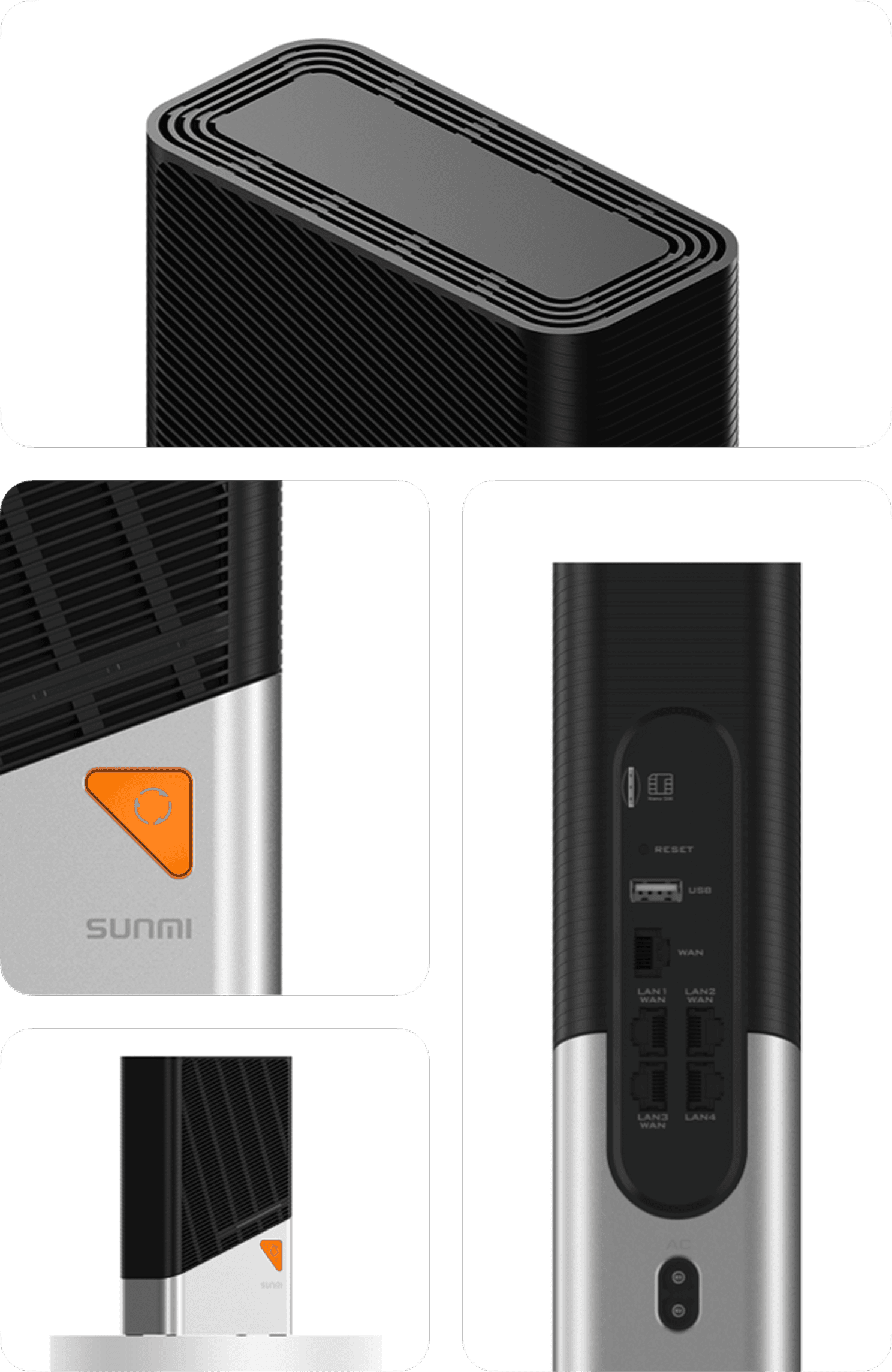

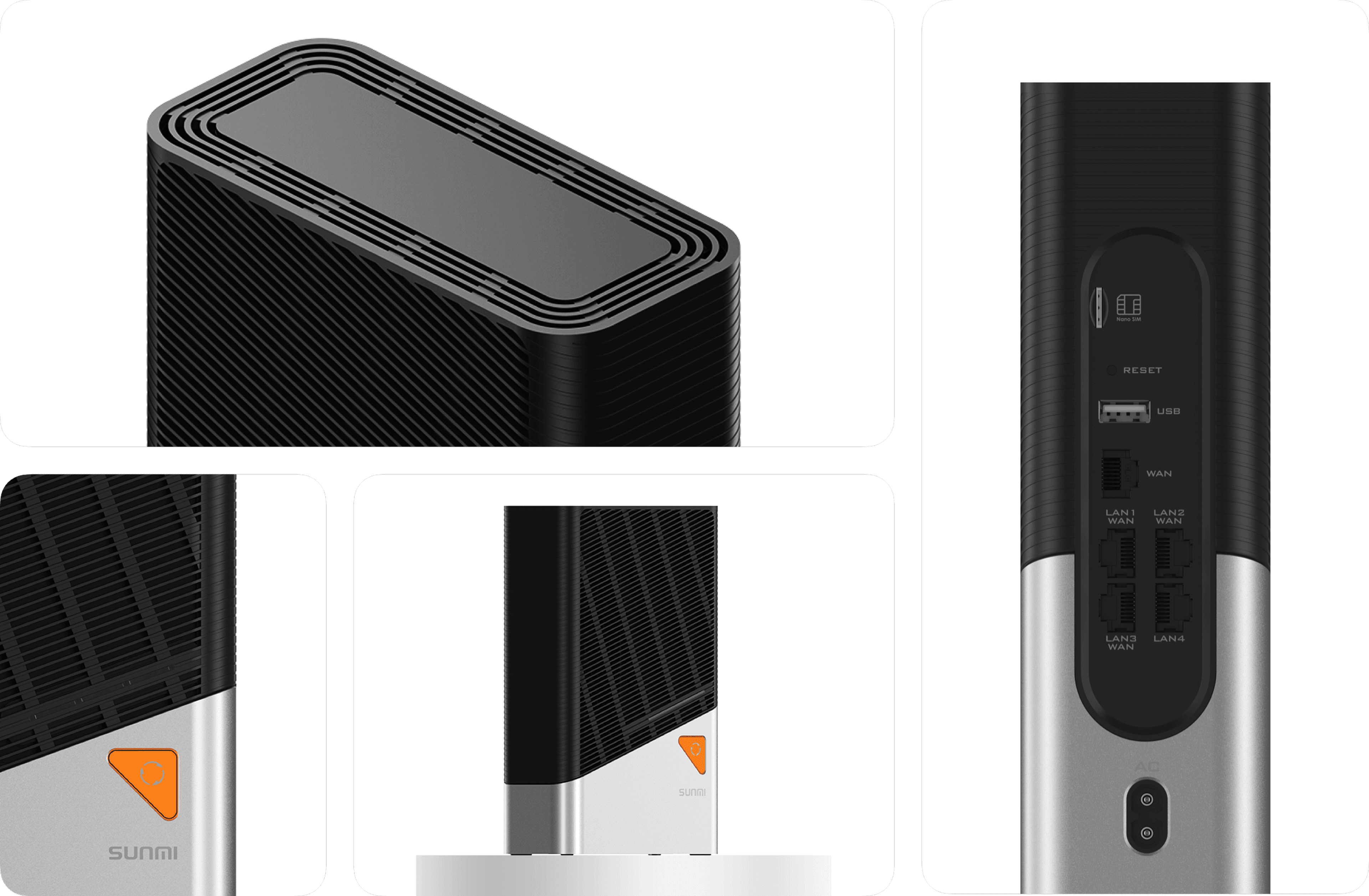

Book style design, improve store appearance.
SUNMI 4G Wi-Fi Base Station Tech Specs
CPU
High-performance 4-core processor
Memory
Flash 128MB RAM 512MB
Wi-Fi
2.4GHz Wi-Fi 400Mbps 5GHz Wi-Fi 867Mbps 802.11 a/b/g/n/ac 1300Mbps (400Mbps + 867Mbps) Support band steering
4G
Plug-in card Communications standard: TD-LTE, FDD-LTE, TD-SCDMA, WCDMA, GSM
Gigabit Port
WAN*1 LAN/WAN*3 LAN*1
USB
1*USB 2.0
Power
Built-in industrial grade power module 100-240V ~ 50/60Hz 0.5A
Antenna
4* internal high gain antenna
Button
SUNMI Link Button Reset Button
Dimensions
215×140×64mm
System
Linux
Indicator Light
RGB 3-color light
Temperature
Operating Temperature: -10°C~45°C Storage Temperature: -40°C~70°C
Humidity
Operating Humidity: 10%~90%RH non-condensing Storage Humidity: 10%~90%RH non-condensing
