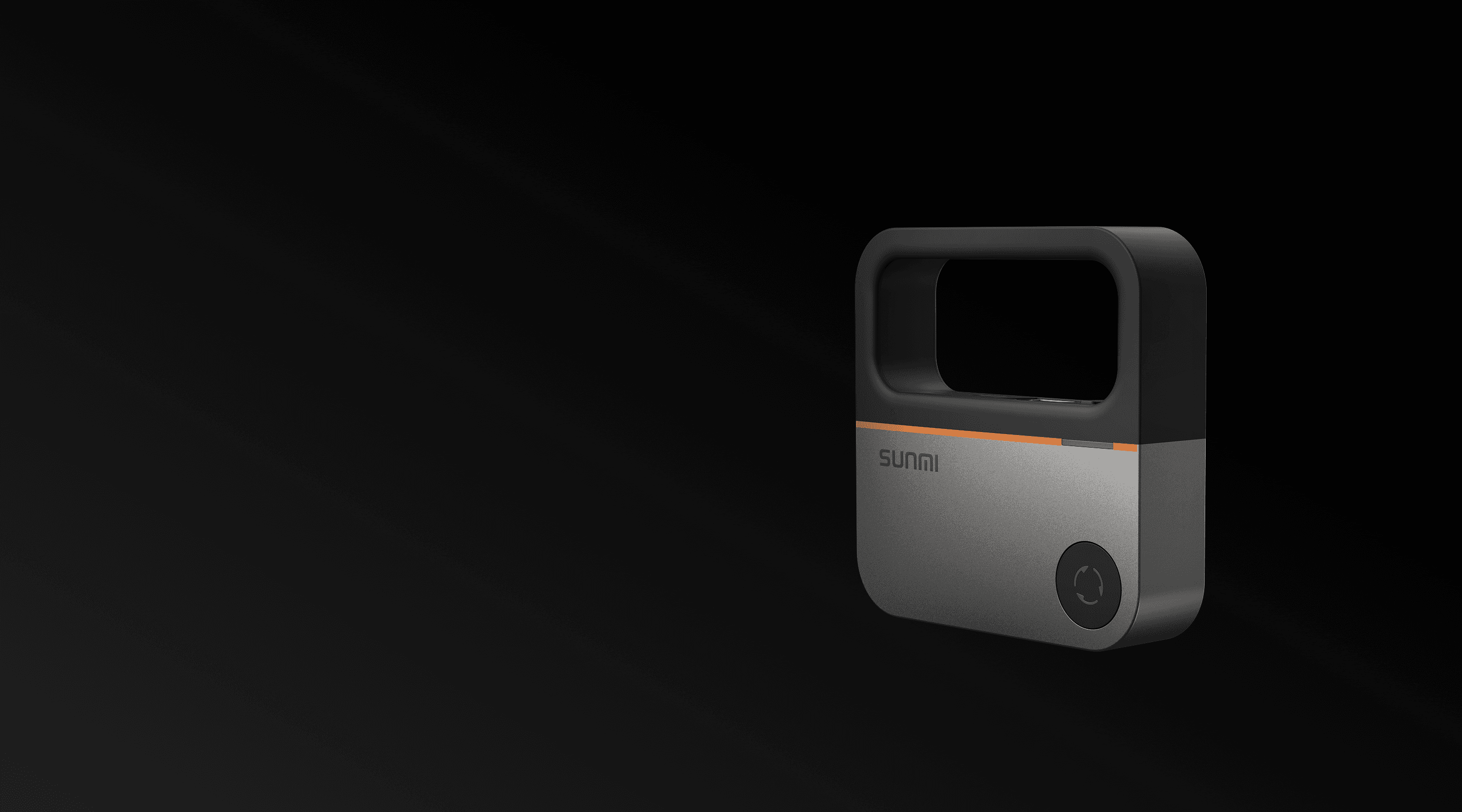

SUNMI MINI AP
Small size. Huge reach. Connect everywhere.
MINI AP is a wireless access point product featuring SUNMI Hyper Wi-Fi technology.
Connect Everywhere
Huge Reach
Signal coverage extends to every corner of your factory warehouse.
Better Penetration
Penetrate walls for enhanced front and back-of-house communication.
High Stability
Seamless performance even amidst the electrical interference in nightclubs.
The Distance Other Wi-Fi Signals Can Travel
Better Wall Penetration

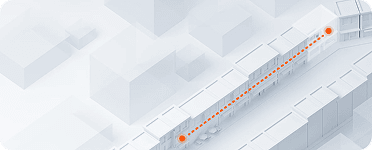

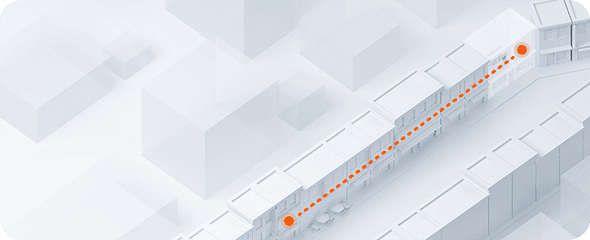

1KM
Maximum Range
The Signal Can Cover a 2000m² Store
90%
Roaming Times
Stable Connection, Anti-interference
64
Terminals
Connected Simultaneously

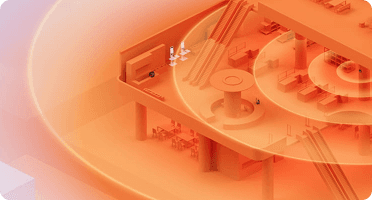

SUNMI Hyper Wi-Fi

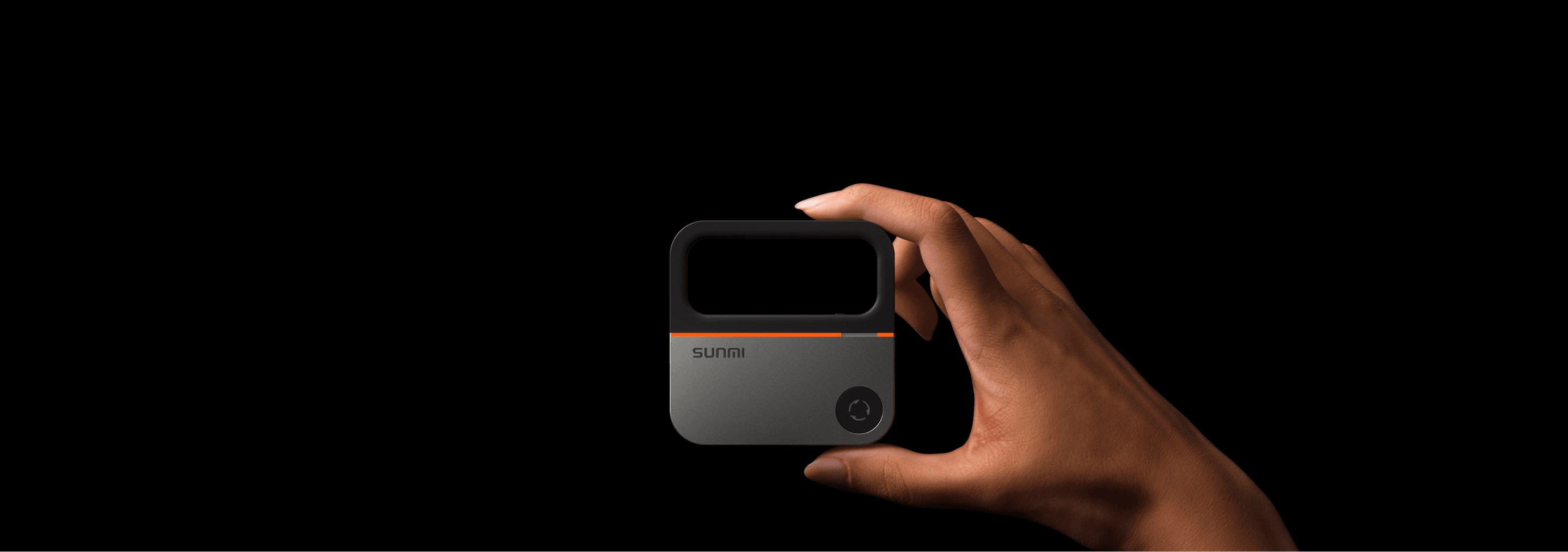

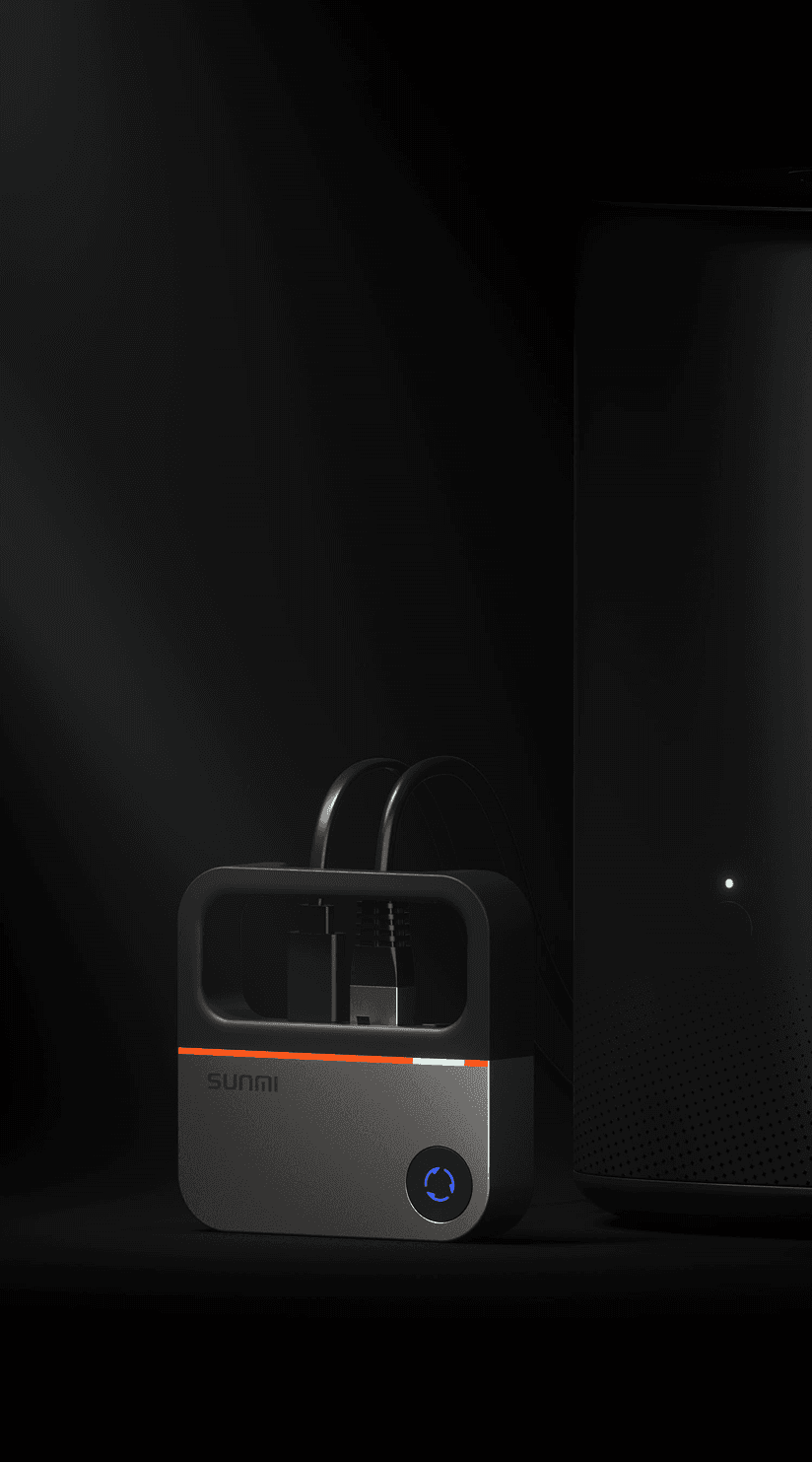

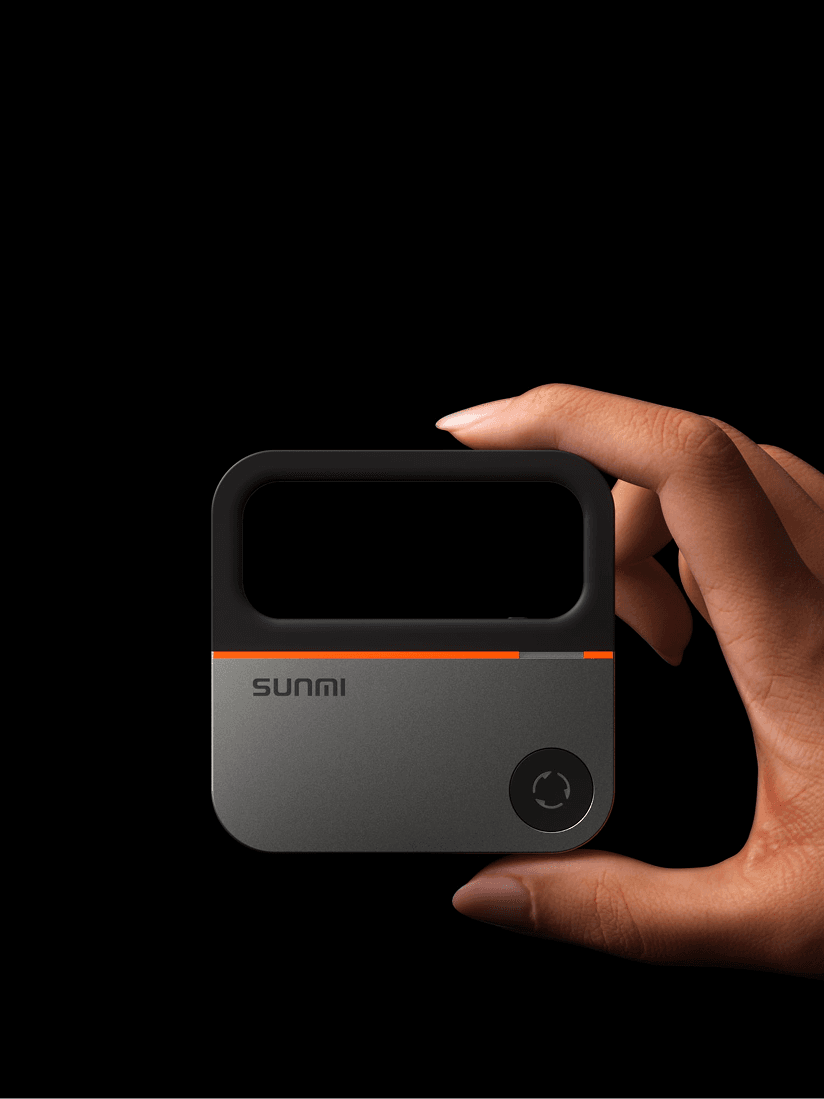

Palm Size, Powerful Connectivity
76 * 76 * 19mm, 73g

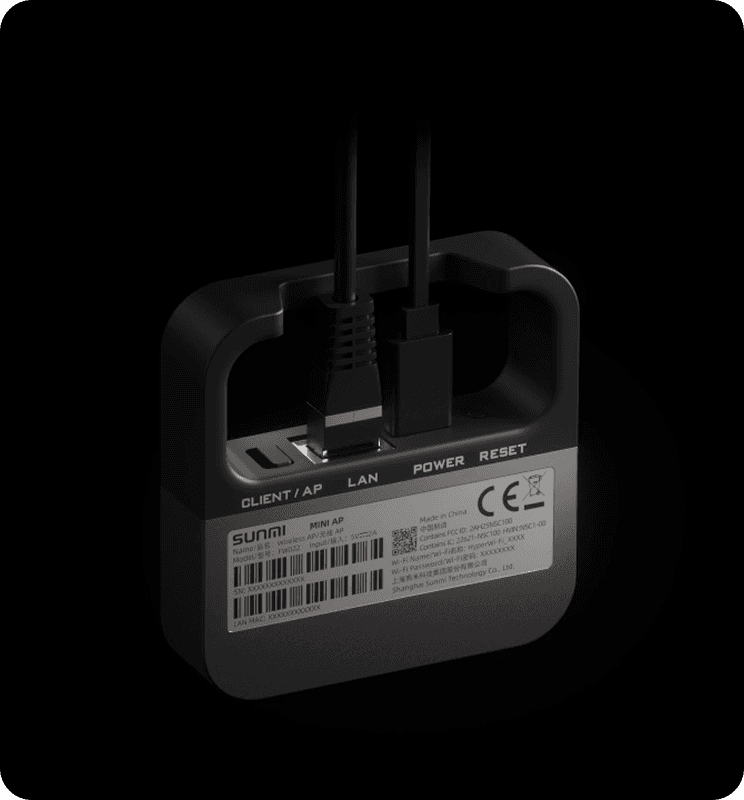

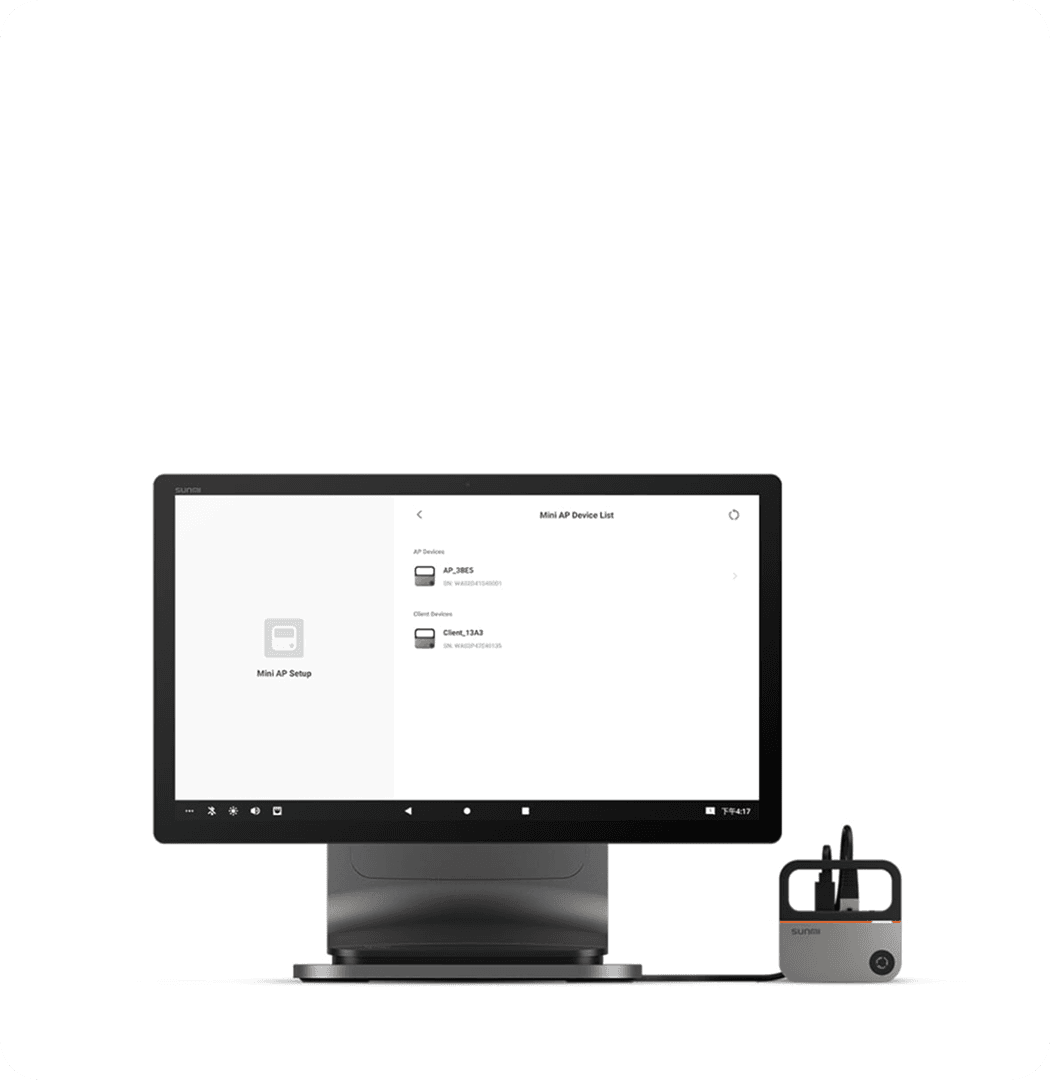

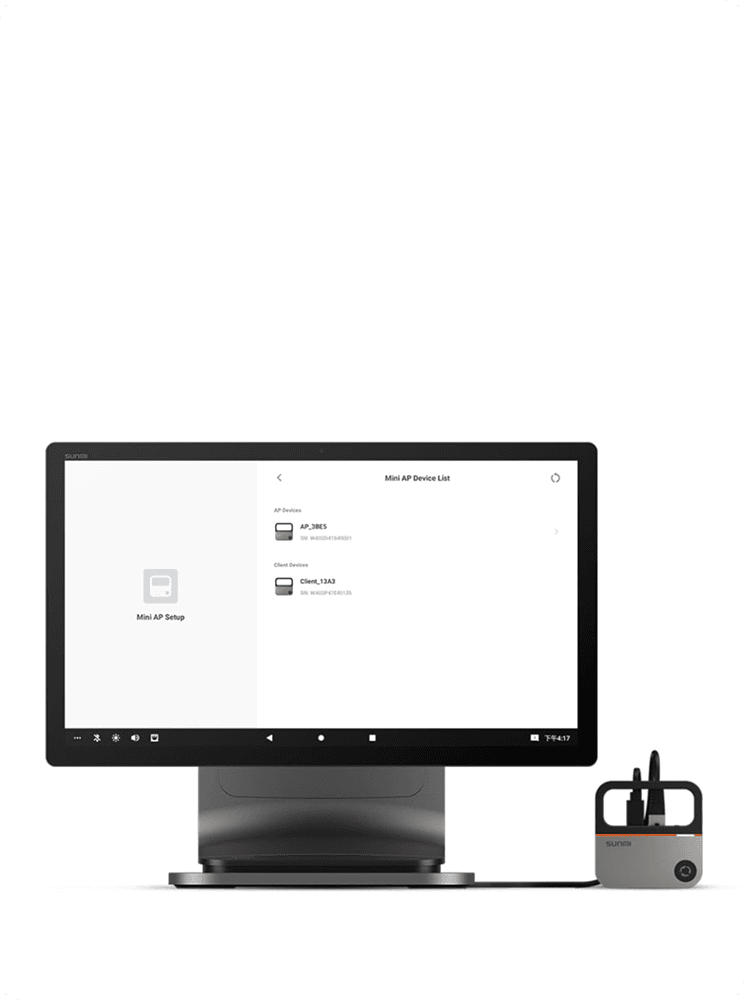

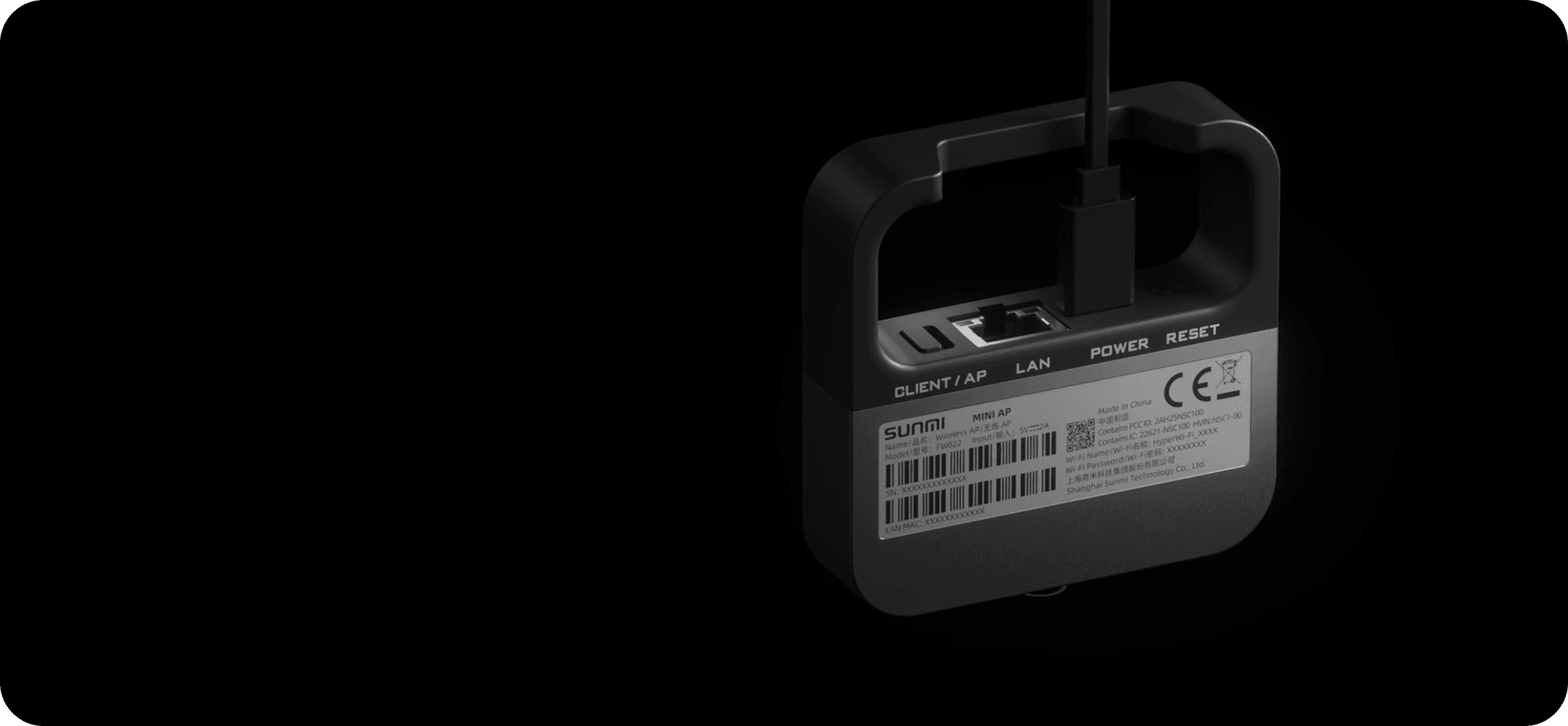

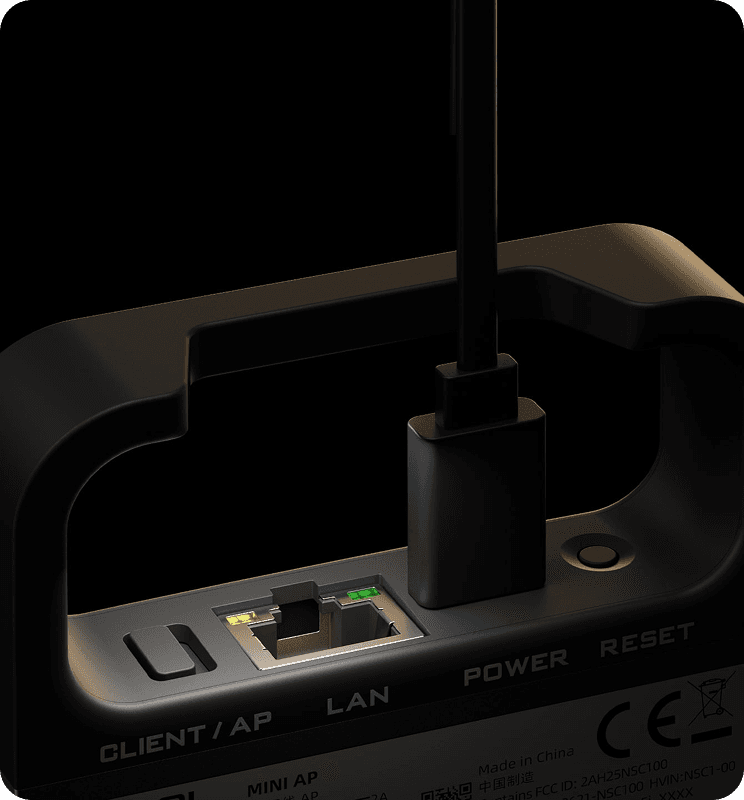

Plug and Play

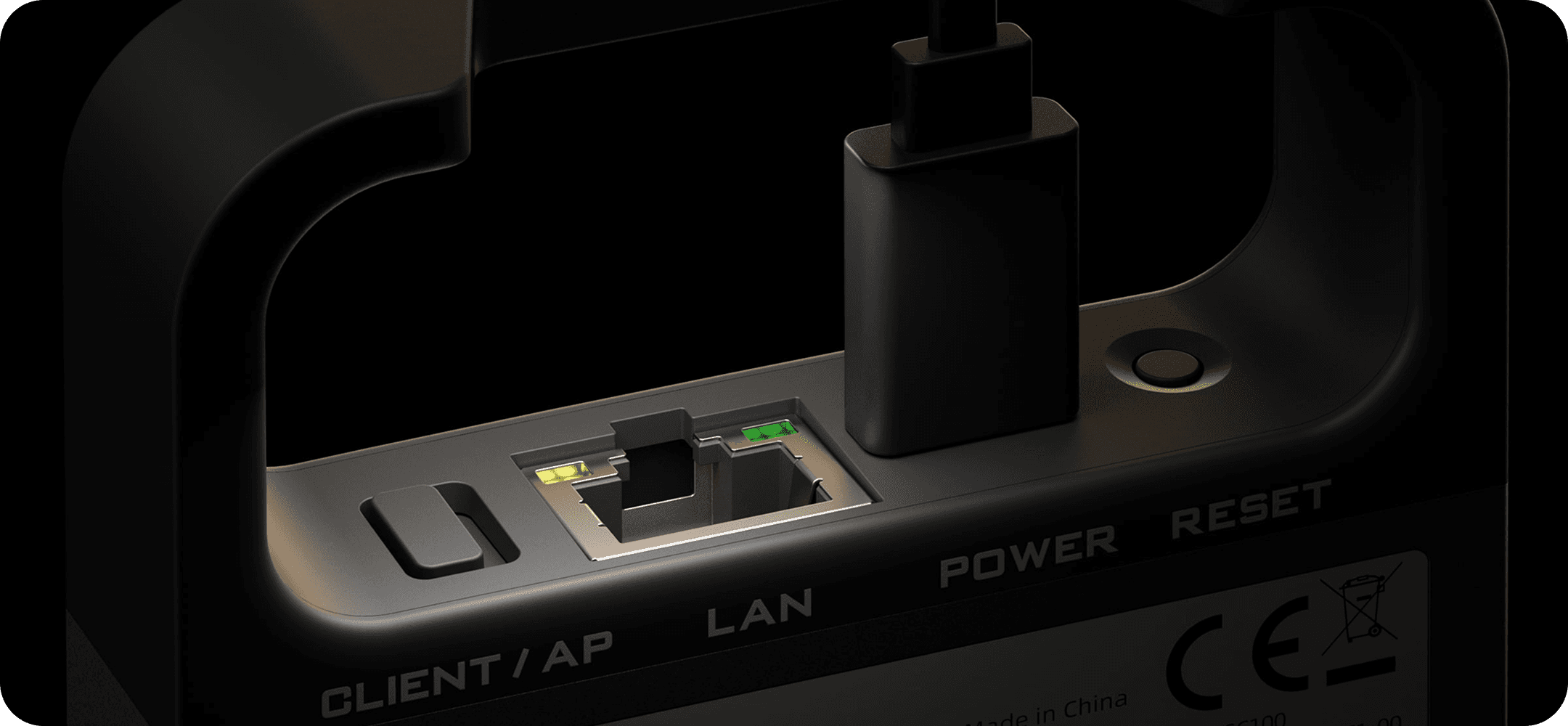

Connect it with a terminal using a Type-C USB cable both for power and networking.

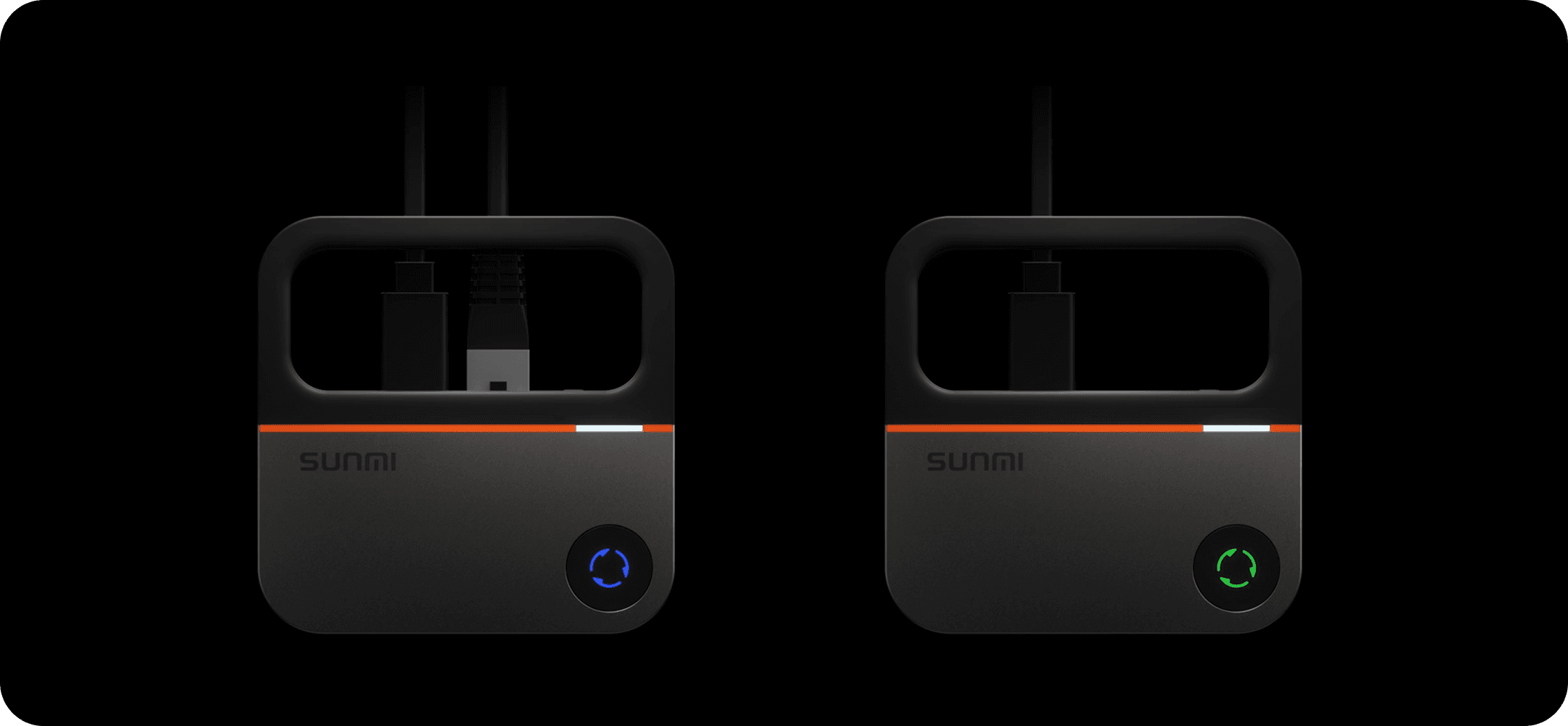

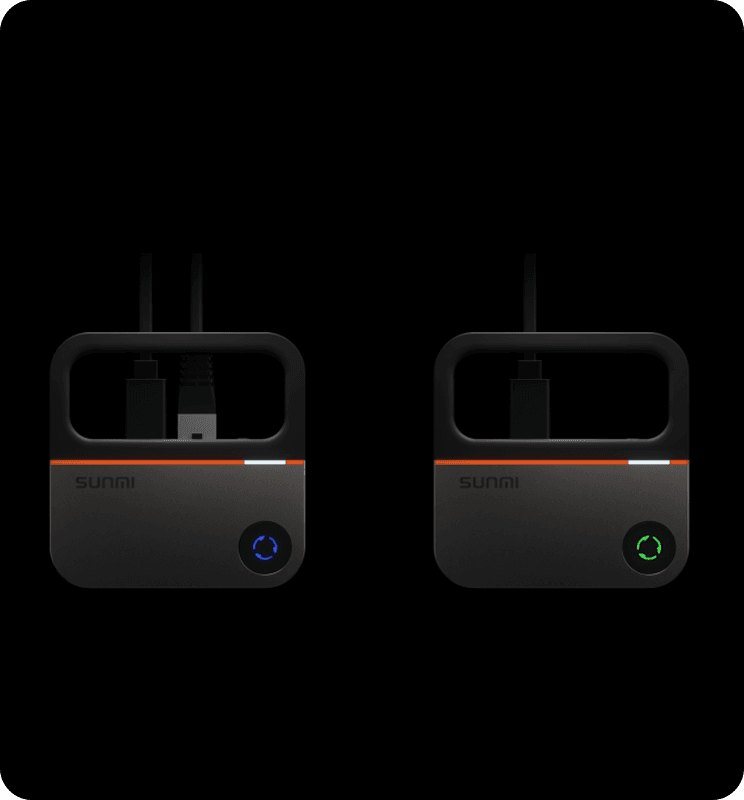

Switch easily between the AP/Transmitter Mode and the Client/Receiver Mode.
AP/Transmitter Mode
Client/Receiver Mode

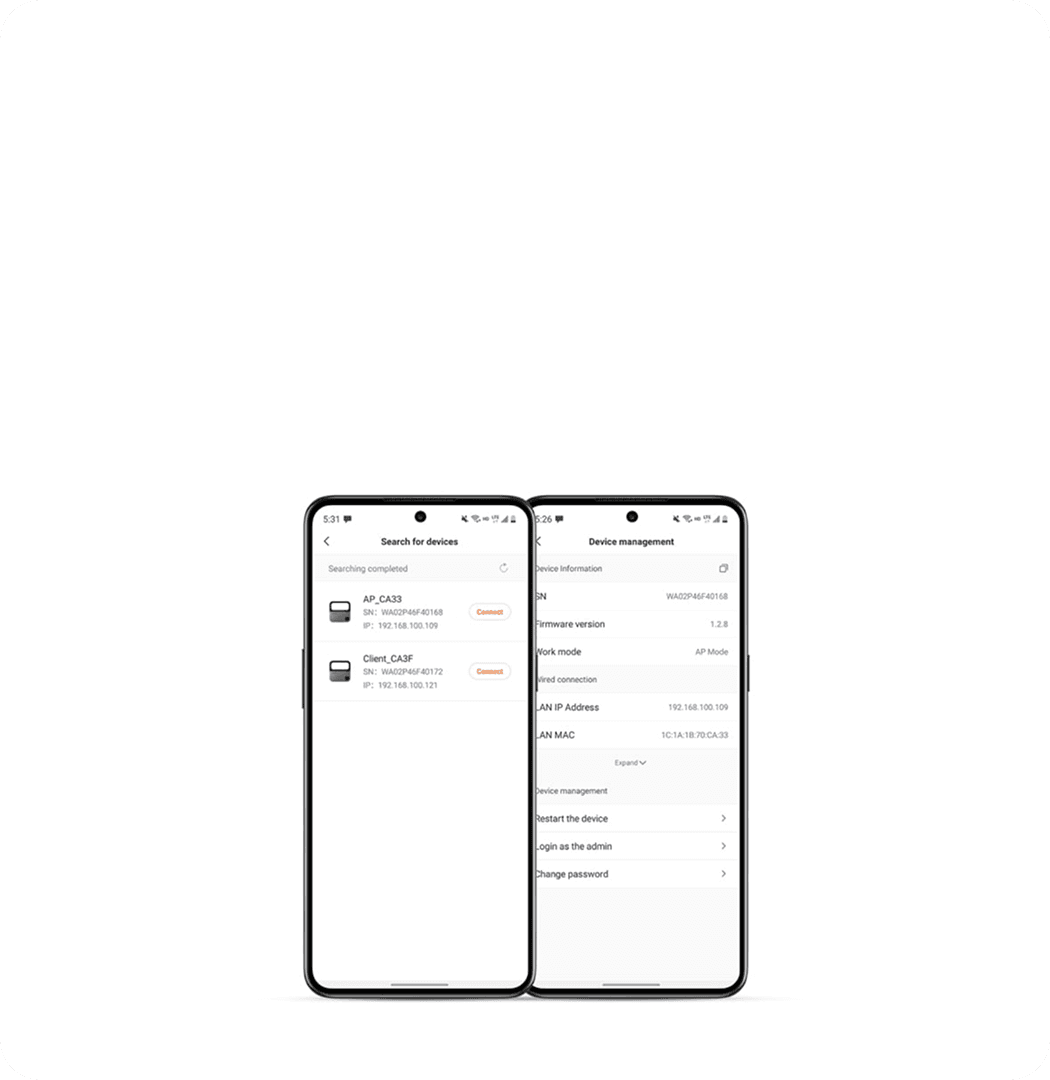

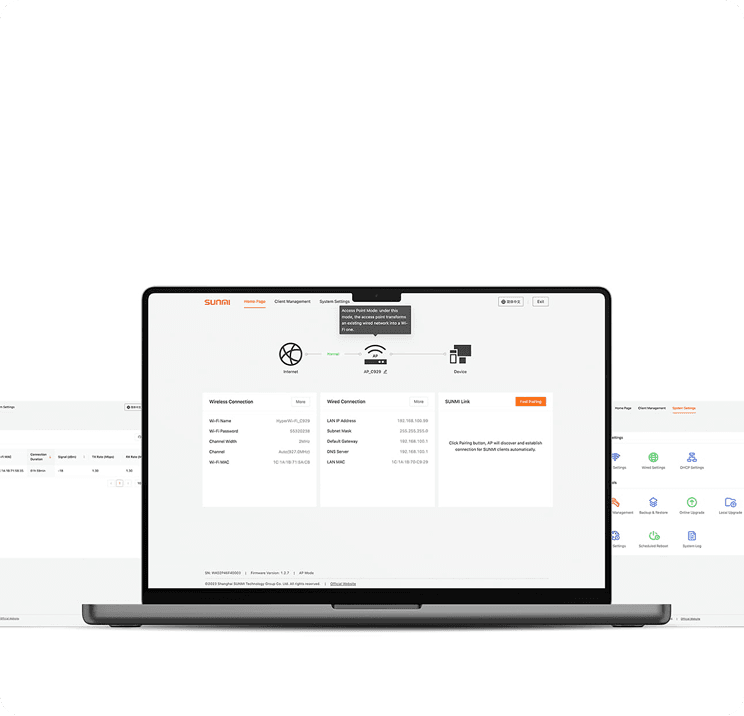

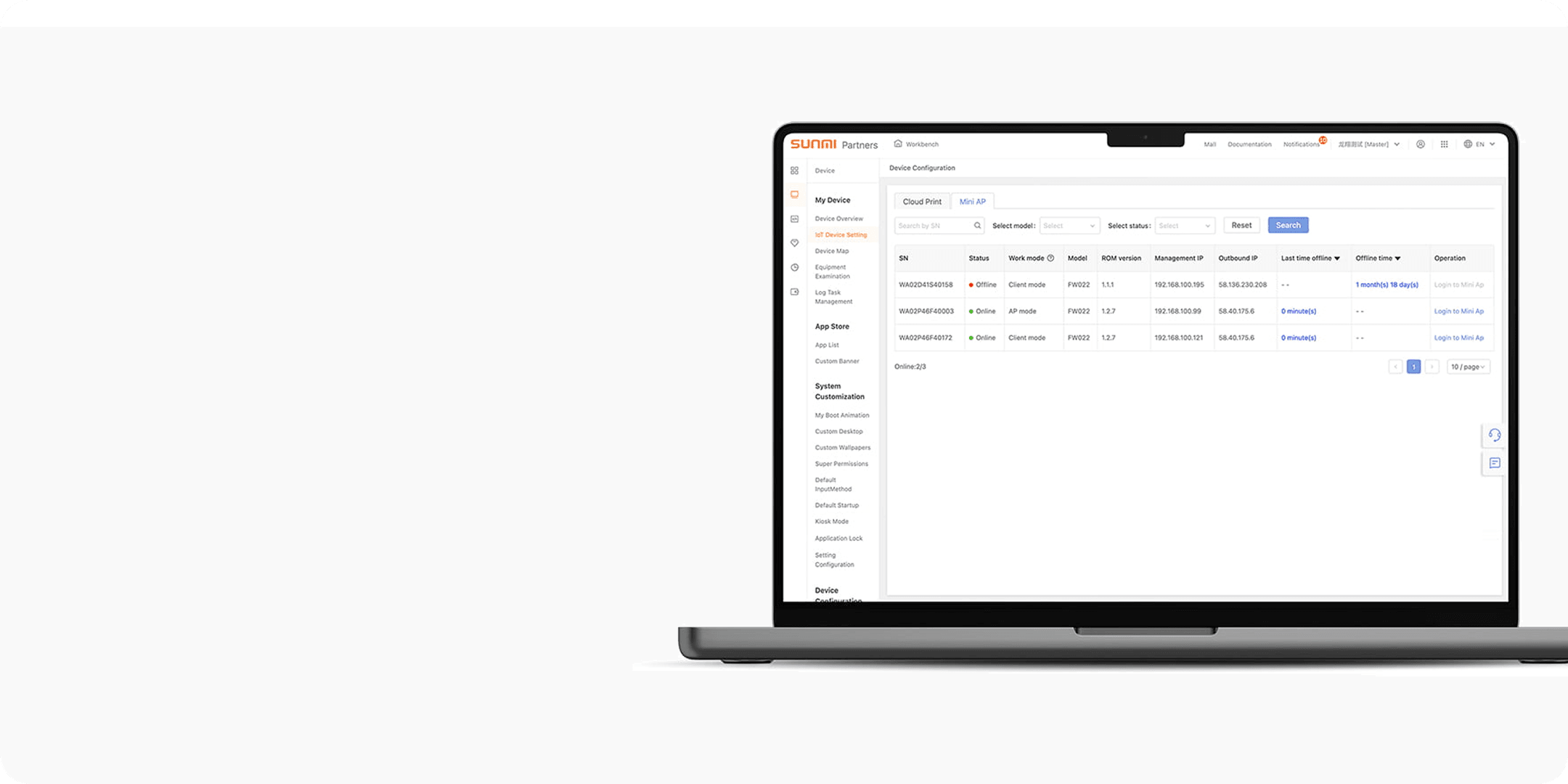

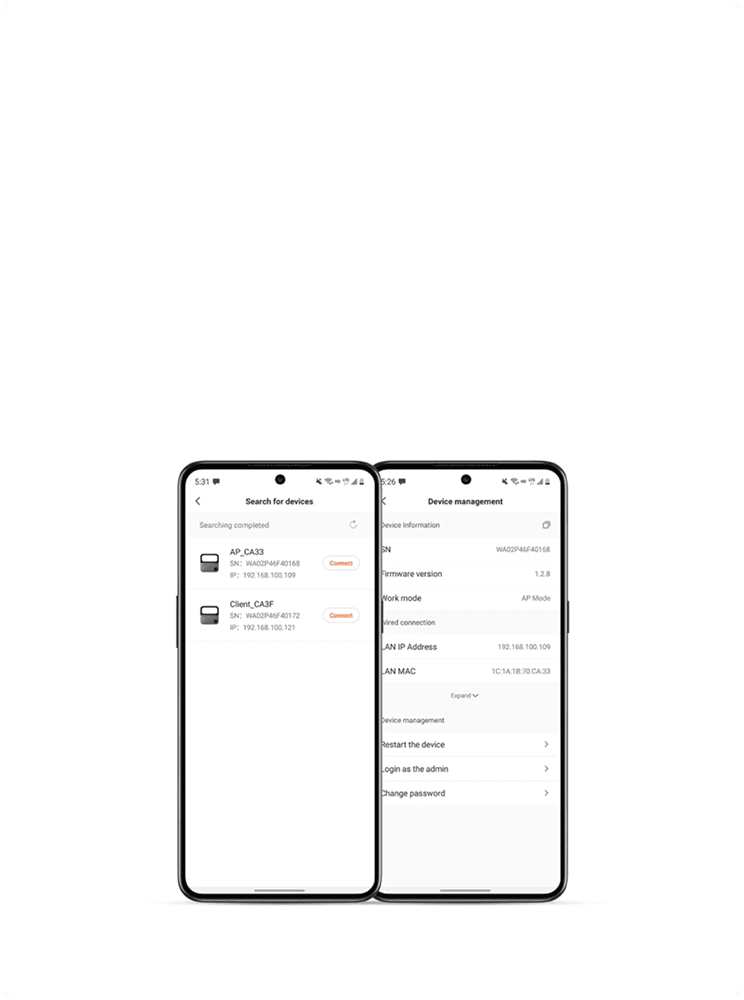

Usage Instructions

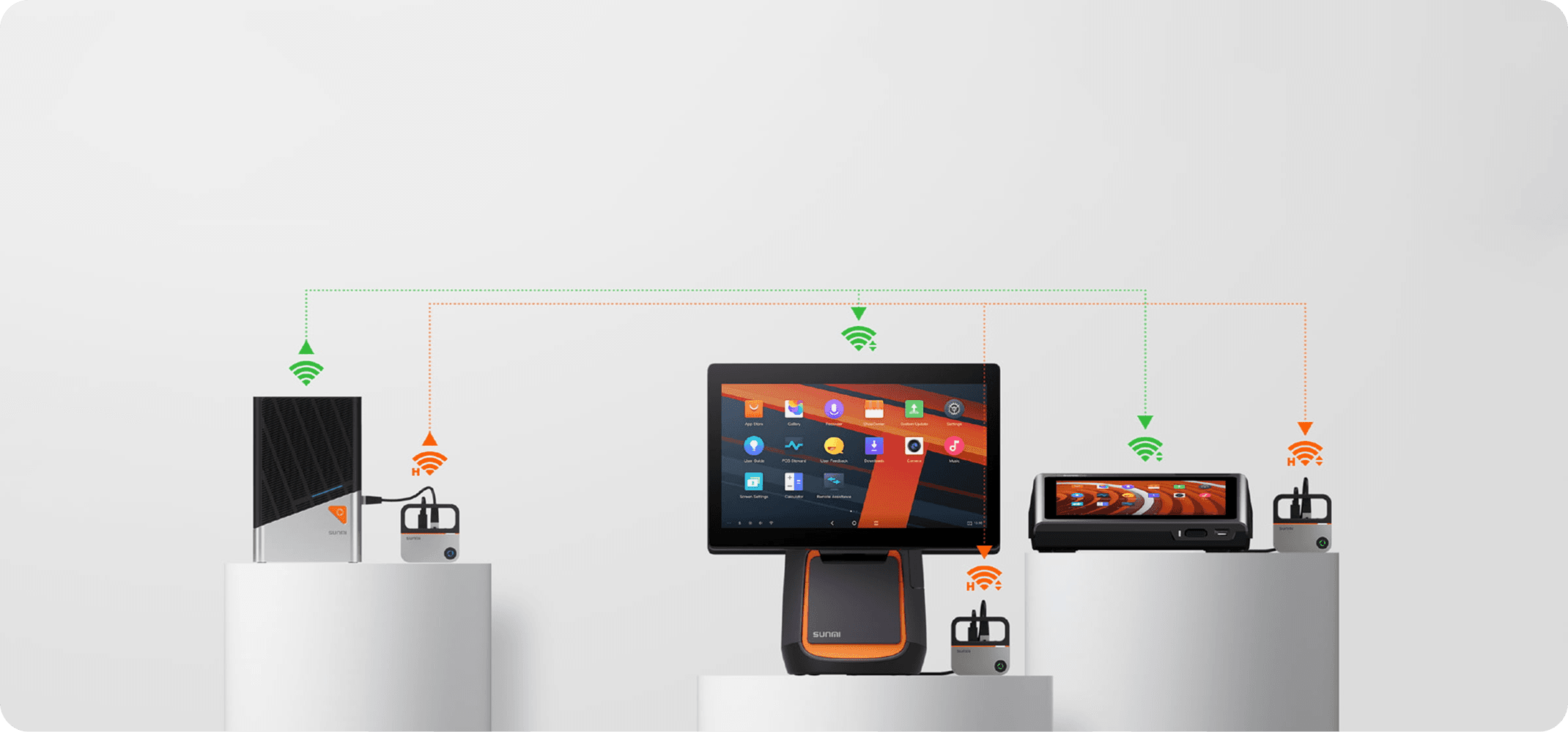

Use Hyper Wi-Fi with MINI AP
Supported by SUNMI 2nd gen desktop terminals kiosks, IoT products.
SUNMI MINI AP Tech Specs
Product Model
FW020
OS
Linux
Wireless Protocols
802.11ah
Wireless Frequency
Sub 1GHz
Antenna
A built-in antenna
Wireless Security Protocols
Supports up to WPA3
Wireless Mode of Operation
AP (Transmiter Mode) Client (Receiver Mode)
Power Indicator
Flashing white: The system is starting Solid white: The system is working normally
Wireless Indicator
AP (Transmiter Mode) Solid blue: Wireless is working properly Flashing blue: Waiting for the client to be connected Client (Receiver Mode) Solid green: The AP is connected and the signal is good Flashing green: Searching AP signals Solid orange: The AP is connected and the signal is poor Off: The AP cannot be connected
Wired Network
1 x 10/100Mbps LAN port
Power Adapter
DC 5V/2A (Type-C USB)
Buttons
1 Reset button 1 wireless network pairing button 1 mode toggle switch
Total Weight
73g
Operating Environment
Operating temperature: -10°C to 40°C Operating humidity: 10%~90% RH (non-condensing)
Storage Environment
Storage temperature: -40°C to 70°C Storage humidity: 10%~90% RH (non-condensing)
Accessories
1* user guide 1* network cable 1* Type-C USB cable 1* piece of 3M adhesive backing
Dimensions (L*W*H)
76*76*19mm
