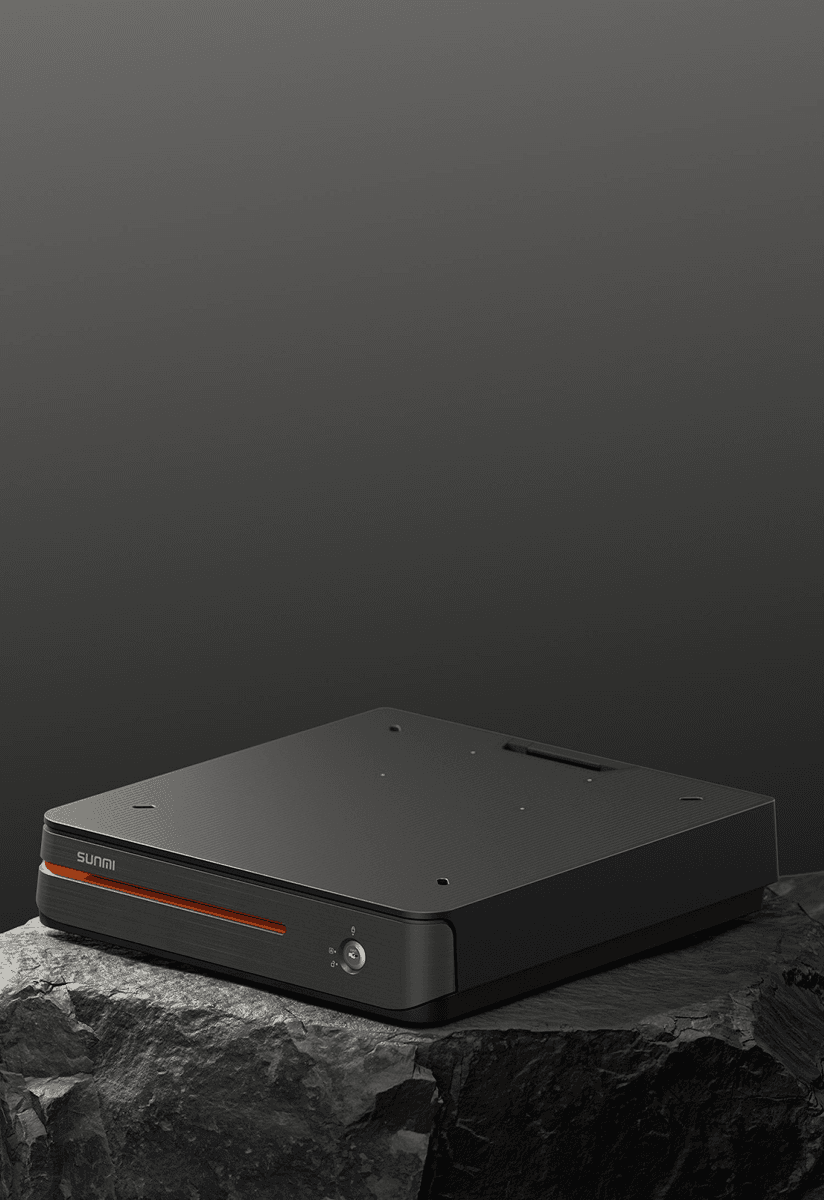

SUNMI MAX Cash Drawer
Maximize your potential.
MAX
capacity, smarter cash handling.

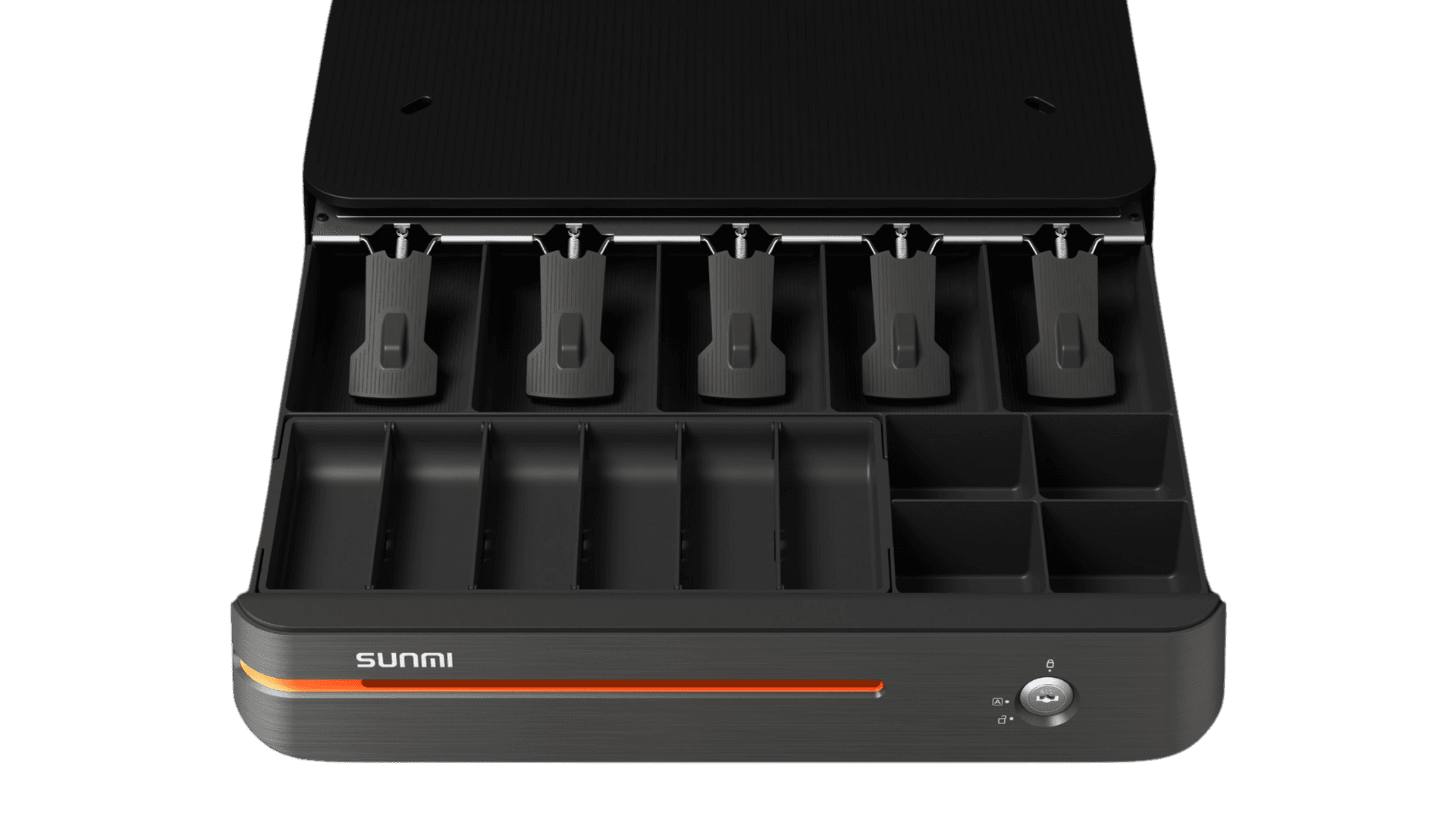

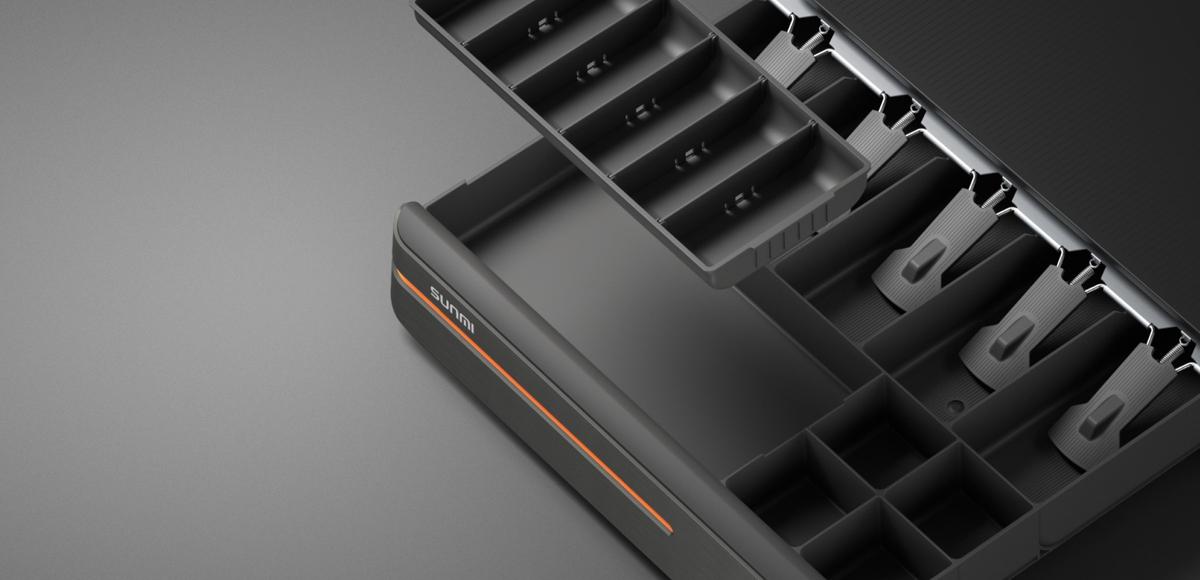

With 5 bill trays, 4 fixed and 6 removable coin trays, MAX Cash Drawer is designed for your booming business.

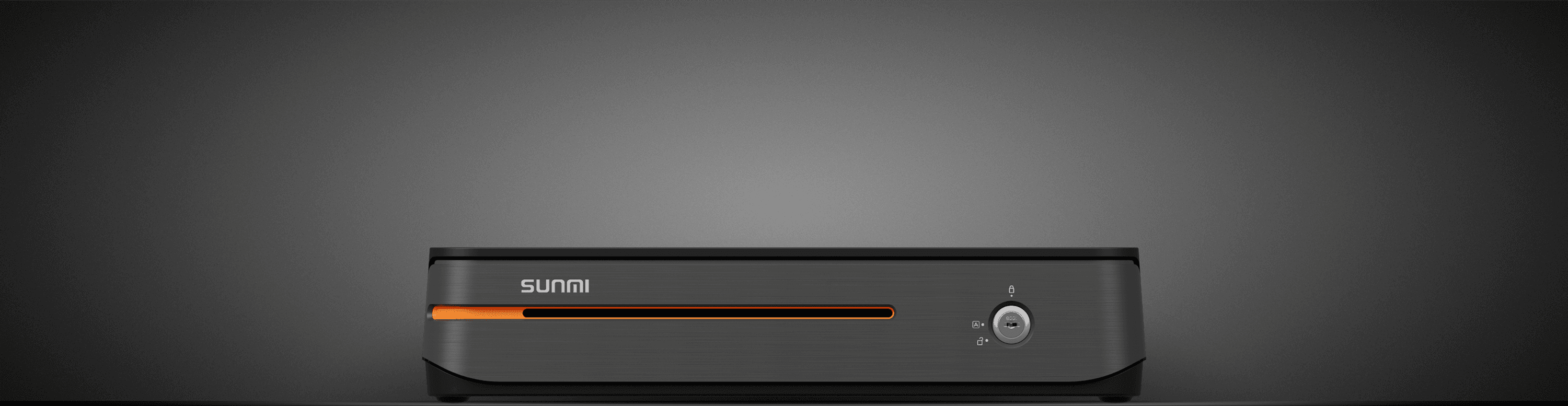

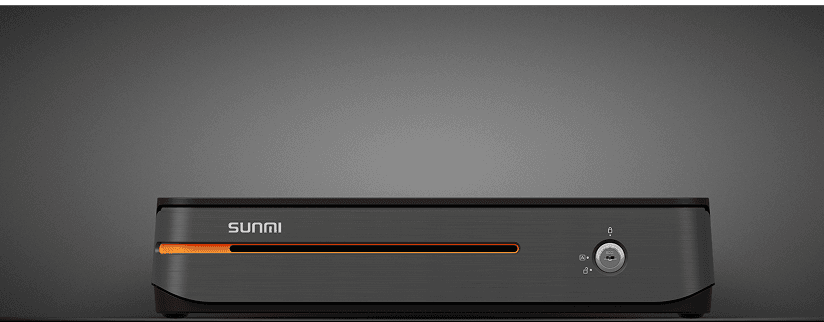

Media slot.
Slip in cheques, bills or credit card receipts without opening the drawer.
Global flexibility.
Compatible with over 20 currencies without adjusting the trays.
MAX
durability, more stable.

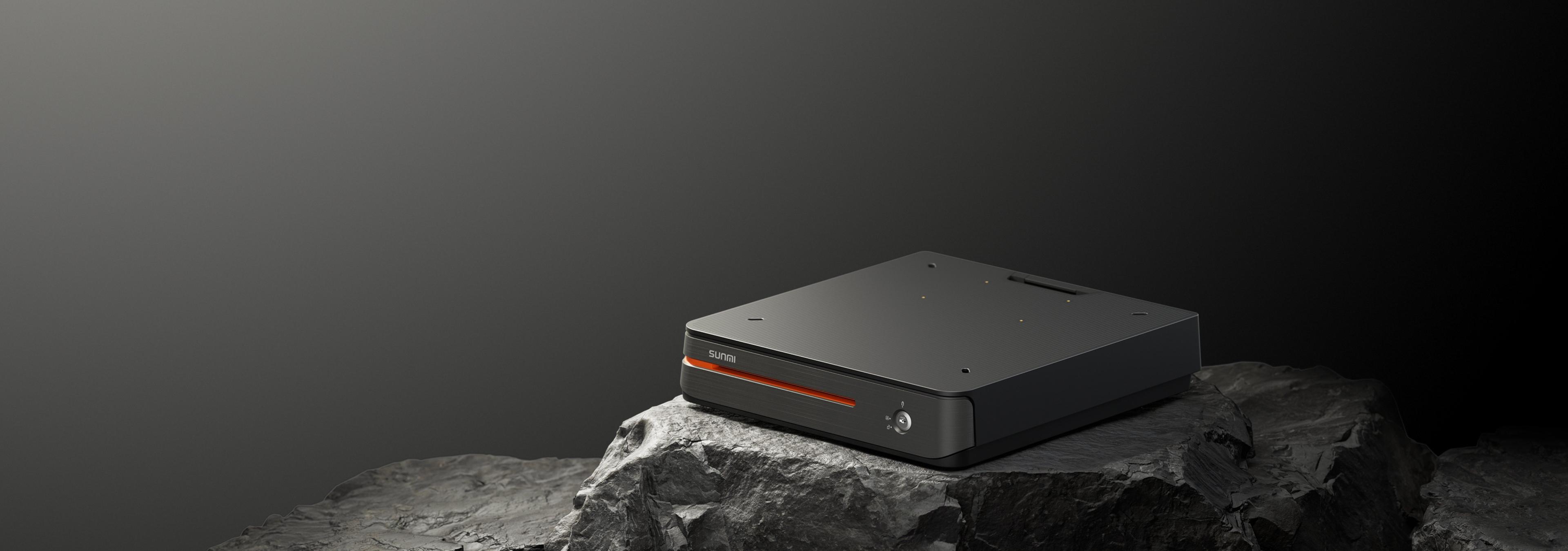

Robust, yet good-looking. The drawer is made of high-toughness and rust-free ABS polymer, strong and impact resistant.
MAX
experience, minimized nuisance.
Up to 10kg bearing capacity.

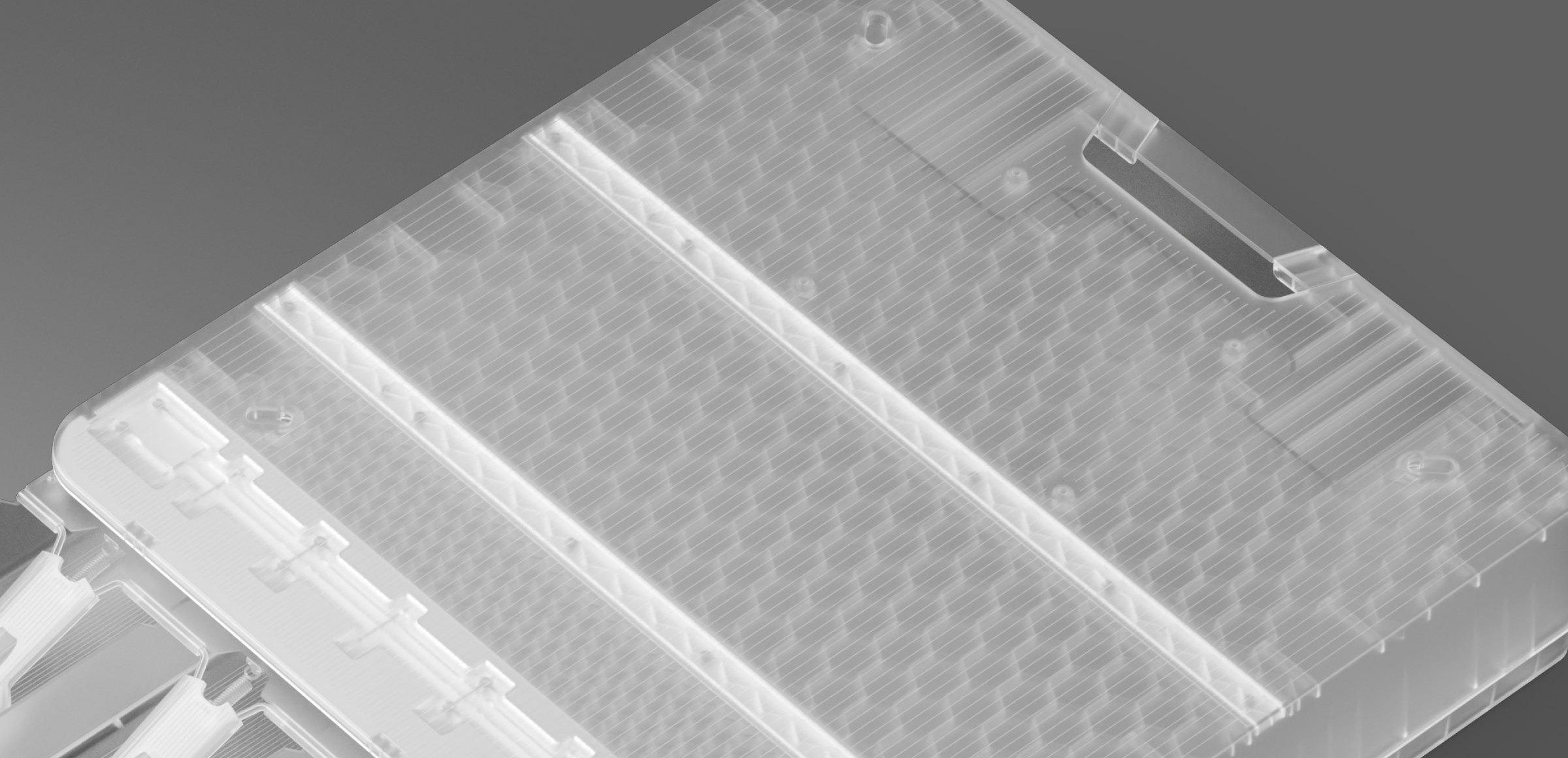

Thanks to its trapezoidal shape and internal honeycombs, tap or click, you can use your register without tolerating a wobbling display when opening or closing the drawer.
MAX
security with multiple protections.

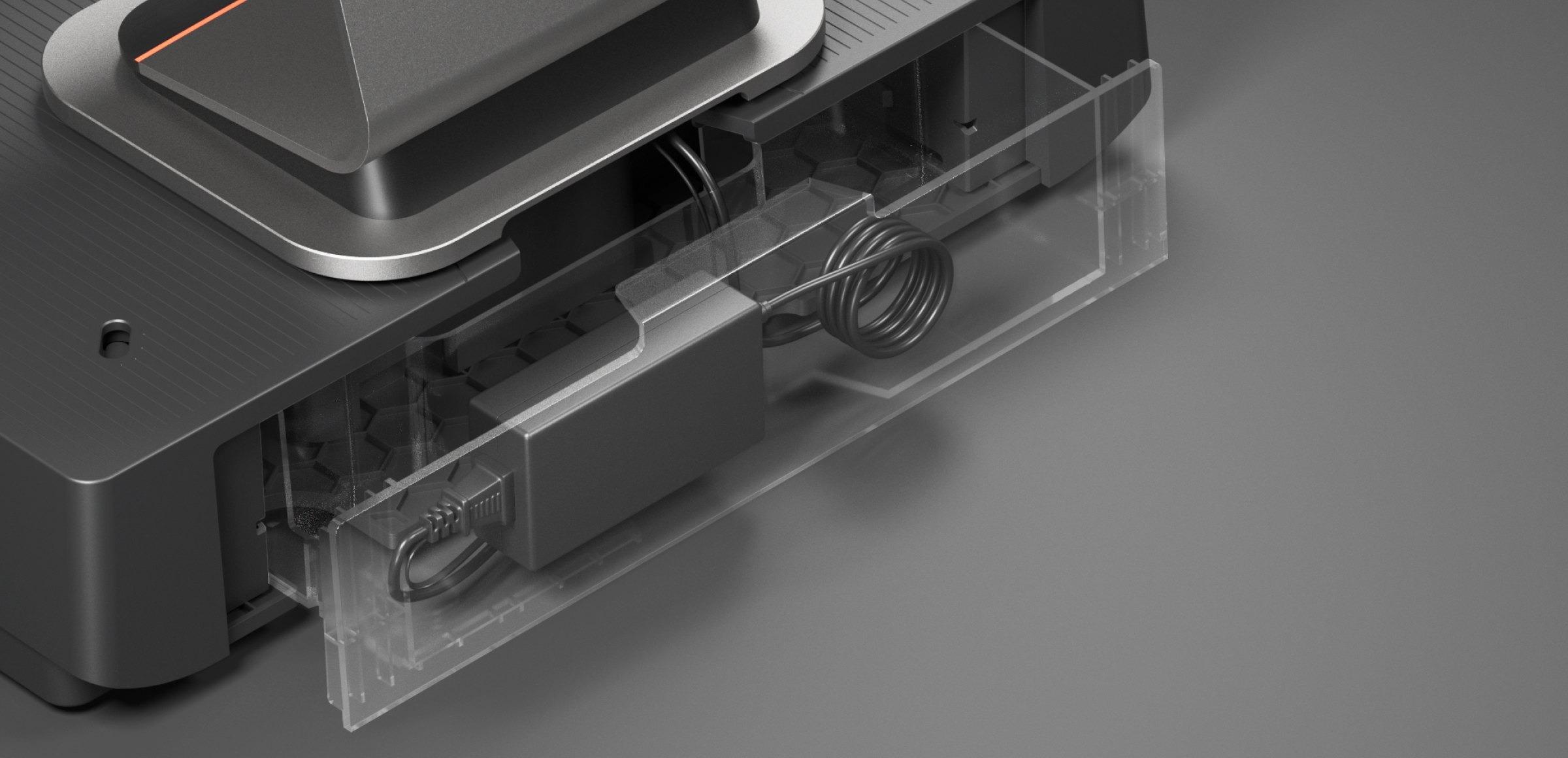

Say goodbye to a cluttered countertop
with a rear cable drawer and a concealed adapter.
Reliable and easy-to-use.

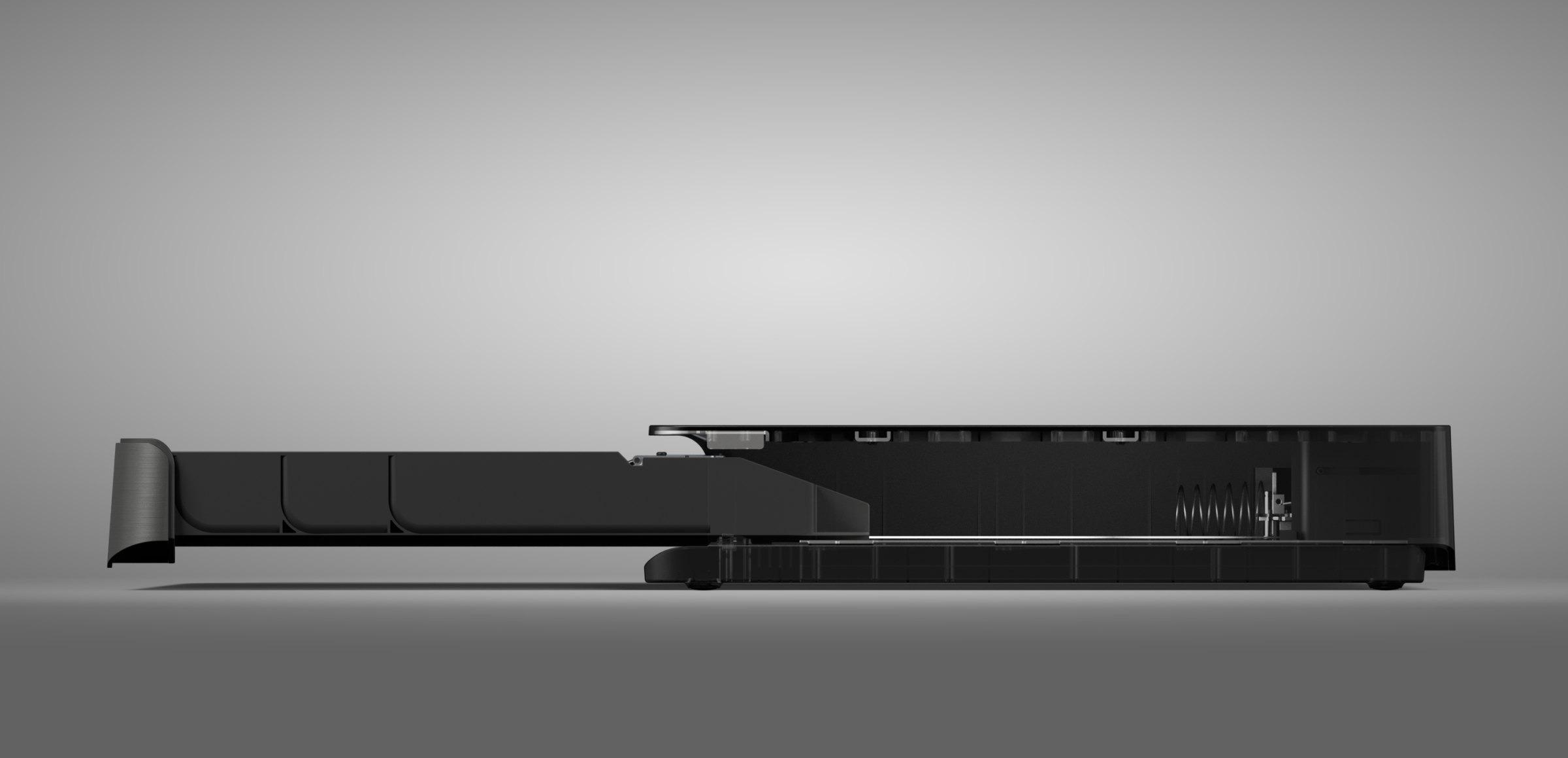

The hidden rails and durable rollers allow a smooth and quiet opening and closing of the drawer. Over 1,000,000 operations supported.
MAX
experience, minimized nuisance.

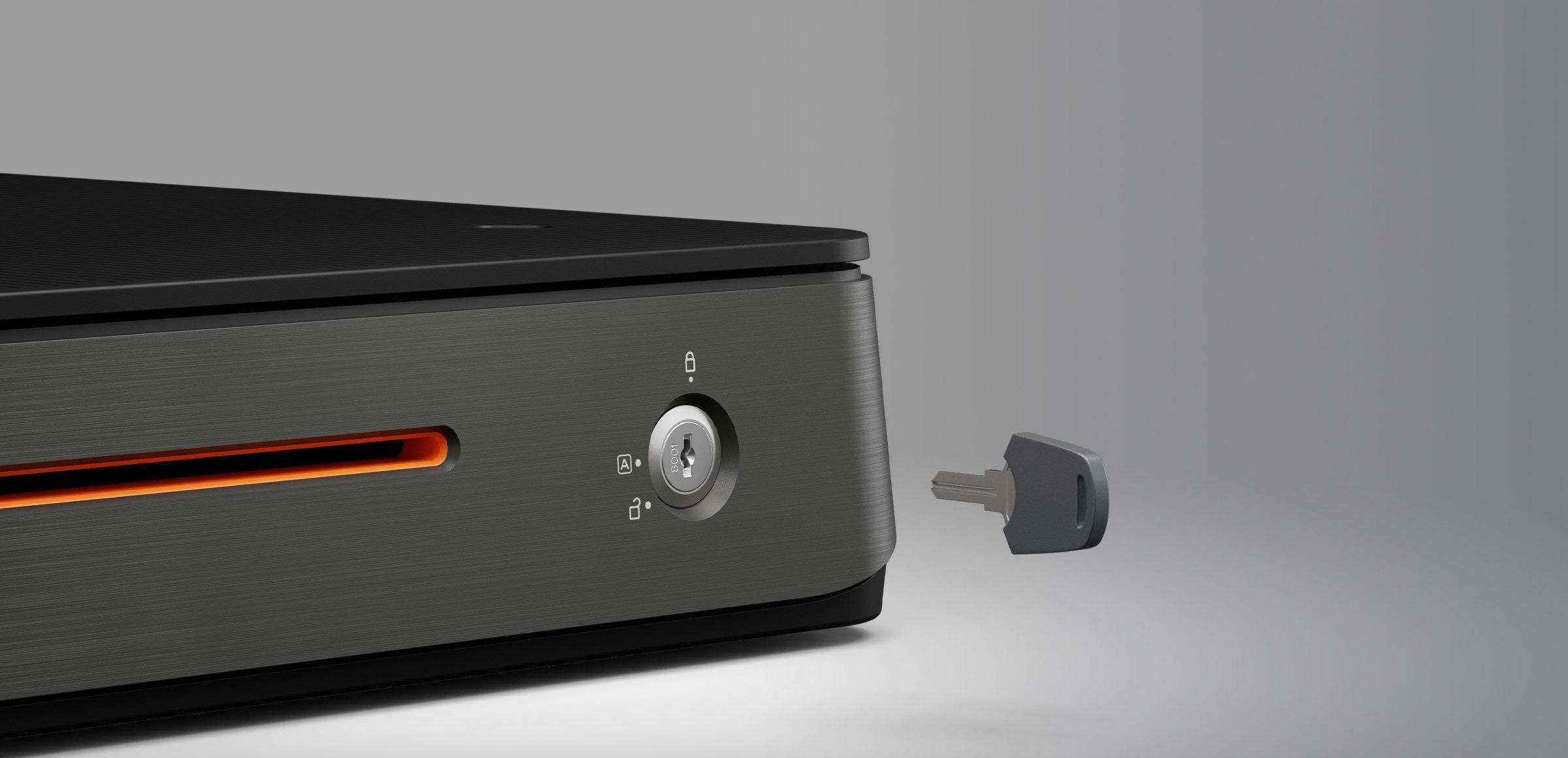

3-position lock.
- Open automatically by driver
- Open manually by key
- Lock
High adaptability.
MAX Cash Drawer can operate on a wide range of voltages including 9V, 12V or 24V, avoiding the risk of damaging the drawer due to voltage mismatch.
3A Overcurrent Protection
Input Pulse Overvoltage Protection
Input Pulse Timeout Protection
Self-Adaptive to 9V-28V Input Voltage
Contact ESD 8KV / Air ESD 15KV
Thermal Shutdown

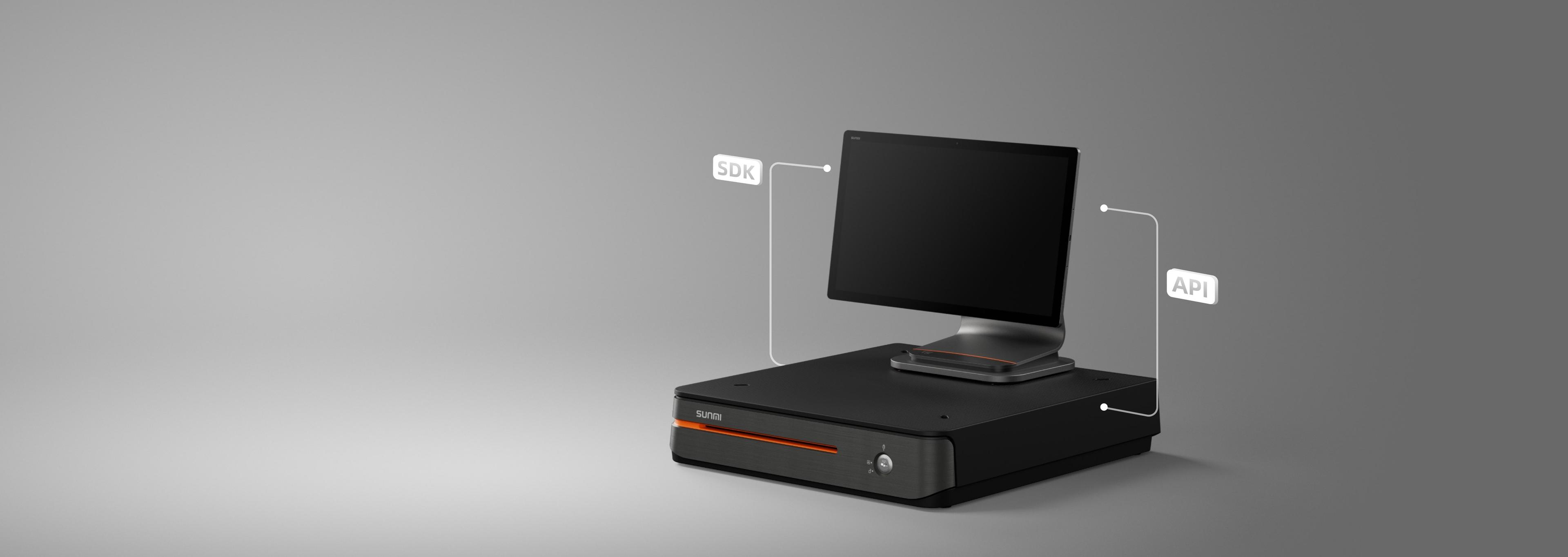

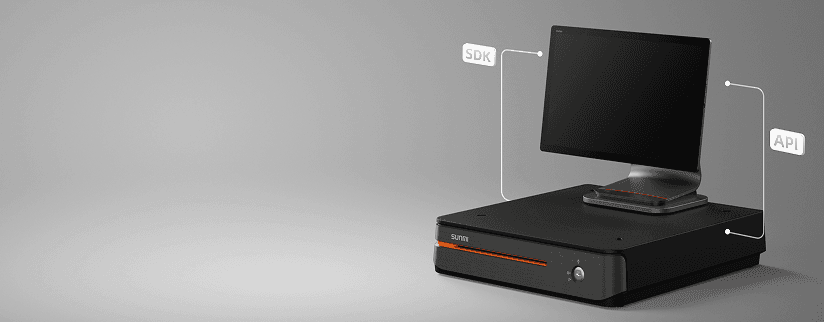

Customize reminders with APIs.
It can be integrated with POS apps to let you know your drawer open/close status anytime from anywhere, thus to further ensure your cash security.
SUNMI MAX Cash Drawer Tech Specs
Cash Drawer
ABS drawer
Trays
5 bill trays, 1 media slot 4 fixed & 6 removable coin trays
Cable
RJ12, 6P4C, 0.8m
Lock
3-position lock： Open by driver/by key/lock
Bill Clip
Plastic and metallic
Cable Storage
Rear-set drawer
Drive Voltage
DC9V～24V, 1A
Drive Pulse Width
100ms-300ms
Drive Protections
3A Overcurrent Protection Input Pulse Overvoltage Protection Input Pulse Timeout Protection Self-Adaptive to 9V-28V Input Voltage Contact ESD 8KV / Air ESD 15KV Thermal Shutdown
Service Life
≥One million operations
Status Feedback
Status detection switch
Dimensions
W430mm x L457mm x H88mm
Weight
5.8 Kg
Environment
Operating temperature and humidity: 0℃～45℃, 30%～85% Storage temperature and humidity: -20℃～60℃, 10%～90%
