OS

Windows/iOS Android/Linux

Pixel

640x480

Reading Precision

≥3mil

Reading Depth of Field

EAN13（13mil）55mm-300mm QR CODE（15mil）35mm-190mm

Lighting

White LED

Dimensions

16cm×9.5cm×7.1cm

Communication Port

USB 2.0 TypeA male connector

Focusing

Red light LED 625nm

Barcode Sensitivity

Inclined ±50°/rotary 360°/deflected ±50°

Field of View Angle

Horizontal 45°, vertical 34°

Power Adapter

Operating voltage: DC5V±5% Operating current: <500mA

Symbol Contrast

≥30%

Prompt

Buzzer, vibrator LED prompt

Environment

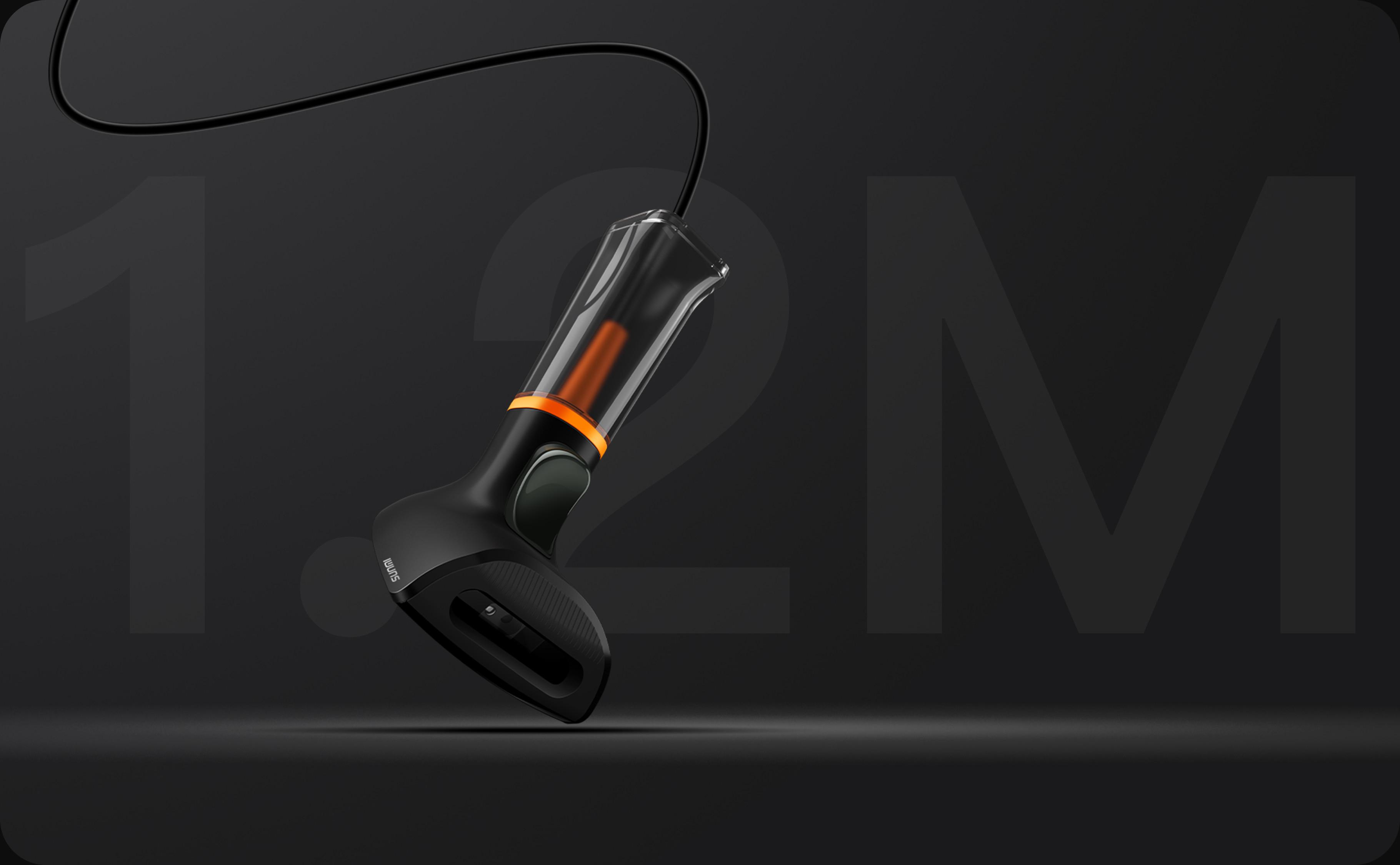

Operating temperature: -10°C~50°C Storage temperature: -40°C~70°C Relative humidity: 5%~95% (no condensation) Electrostatic protection: ±8kV (direct discharge) ±15kV (air discharge) Drop height: 1.2meters

Symbologies

1D：Code128, UCC/EAN-128, AIM128, EAN-8, EAN-13, ISBN/ISSN, UPC-E, UPC-A, Interleaved 2 of 5, ITF-6, ITF-4, Matrix 2 of 5, Industrial 25, Standard 25, Code39, Codabar, Code 93, Code 11, Plessey, MSI-Plessey, RSS-14、RSS-Limited、RSS-Expand 2D：PDF417，QR Code Data Matrix
